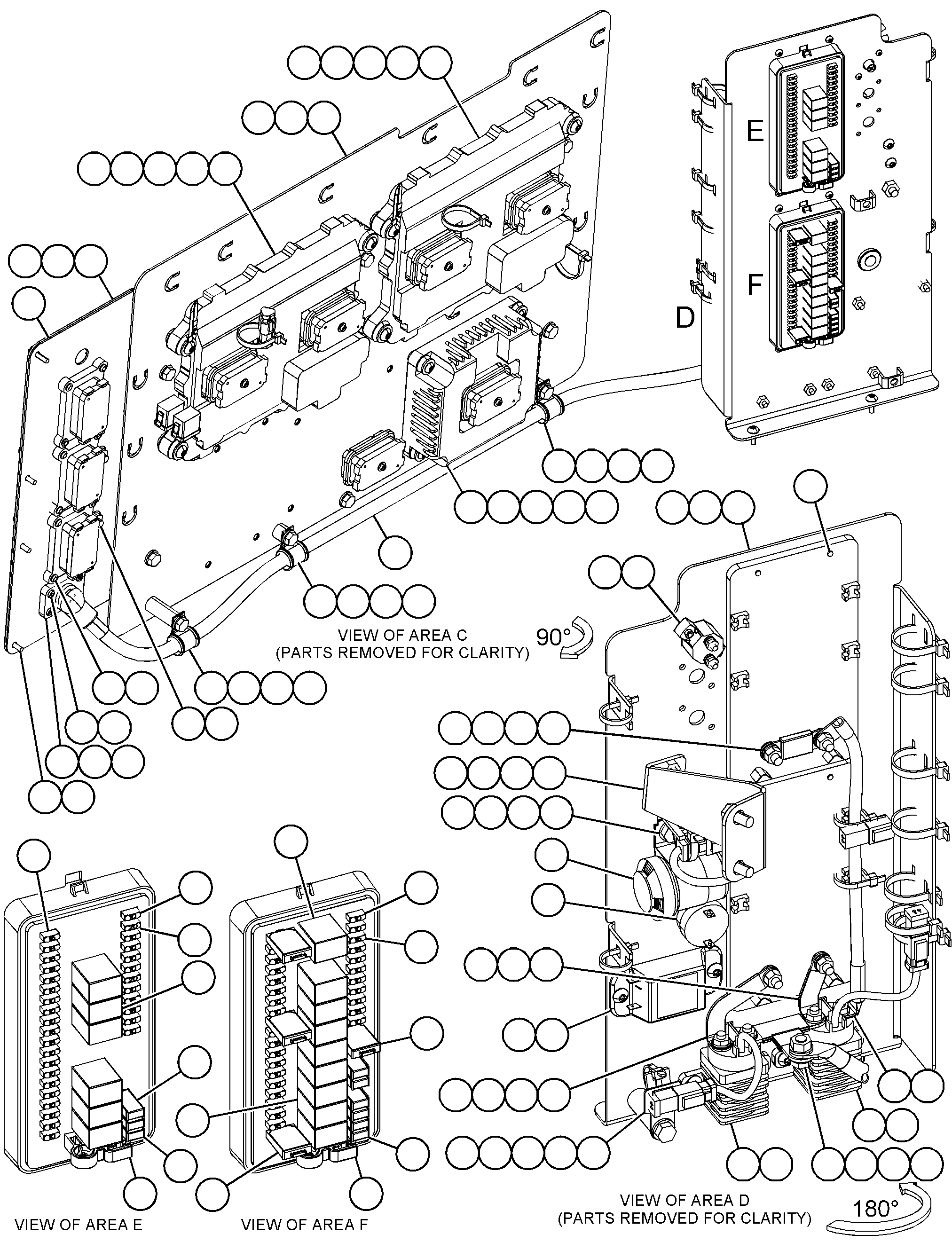

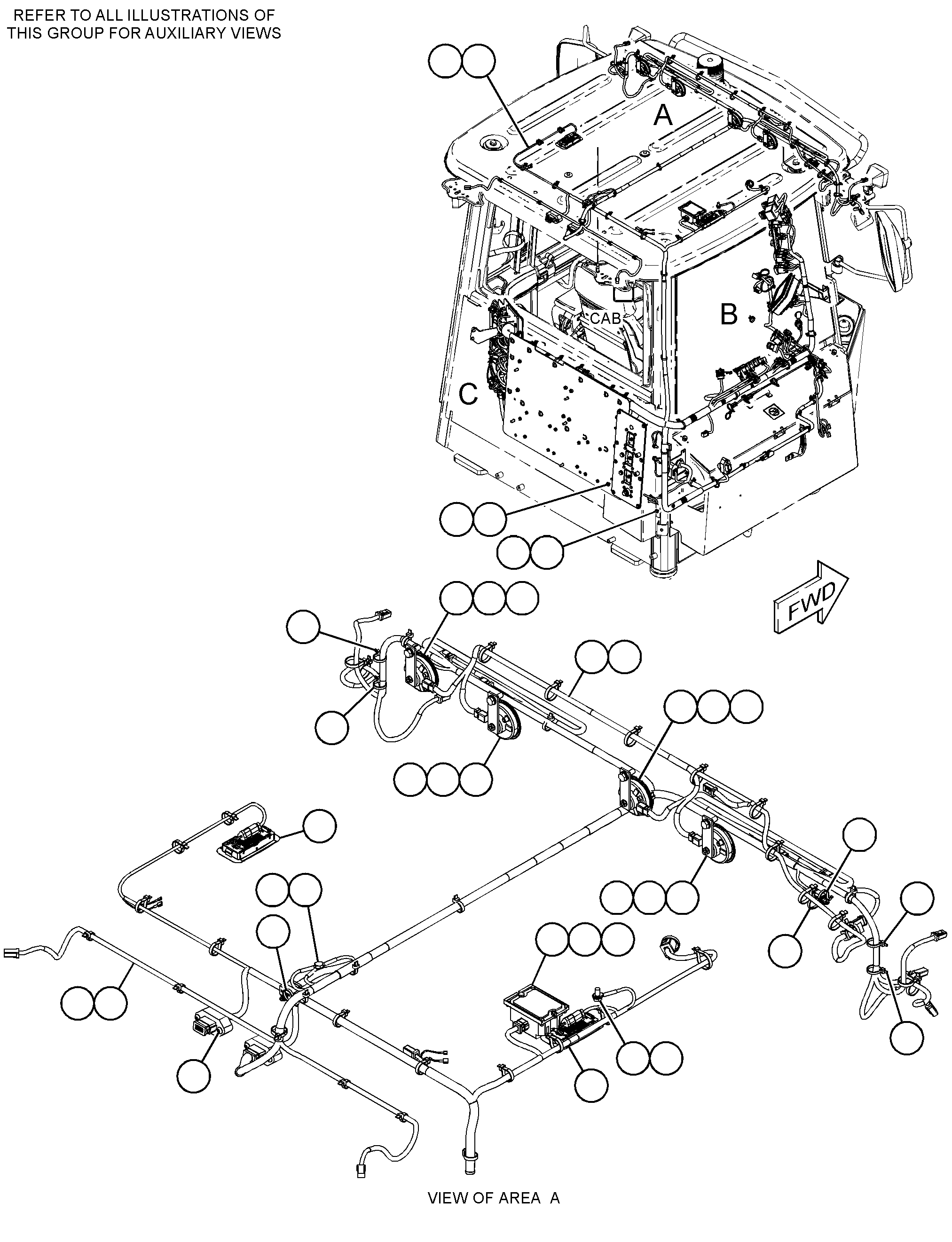

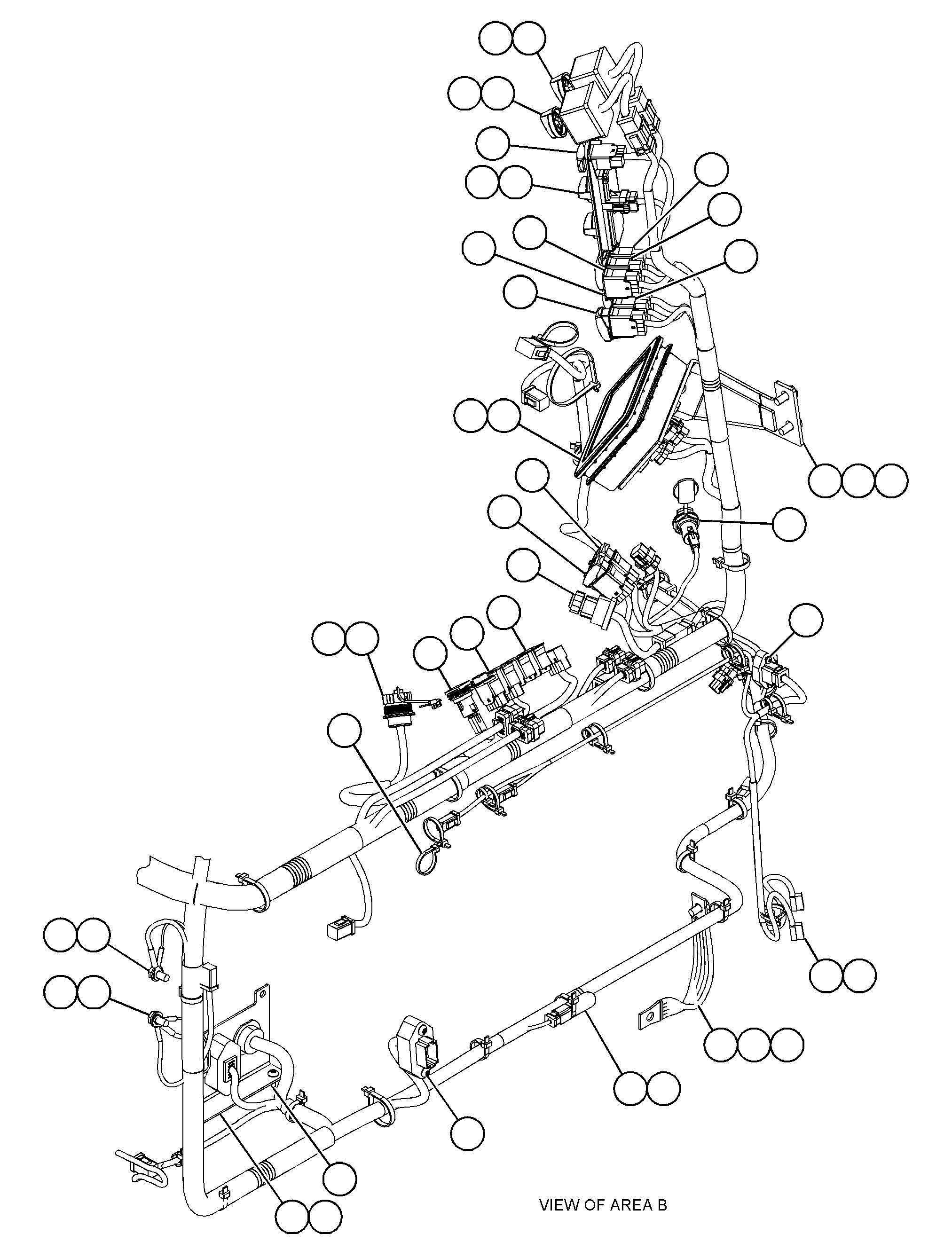

398-9389 WIRING GP-CABS/N SEE214-UP

Group No: 398-9389
Part NumberPart NameQty
3E63281 ALARM GP (24-VOLT)(CAB TILT, WARNING)1
3V46942 PLUG-BUTTON1
8C56073 MOUNT-ISOLATION8
8T96554 MOUNT-ISOLATION16
10803585 FLASHER AS (24-VOLT)1
11384906 FUSE (10-AMPERE)40
11384917 FUSE (15-AMPERE)25
11384928 FUSE (20-AMPERE)3
12396949 HORN1
135331110 RESISTOR AS1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
139472411 CIRCUIT BREAKER AS (30-AMPERE)1
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
8T0328WASHER-HARD (5.5X10X1-MM THK)2
163120112 HORN AS (24-VOLT, LOW TONE)2
174787513 HORN AS (24-VOLT, HIGH TONE)2
180990014 CAP AS1
5P7958SLEEVE-CABLE SPLICE1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
1799392LANYARD1
241836815 SWITCH GP-MAGNETIC (24-VOLT)2
242155516 PULLER-FUSE2
248284117 RELAY AS (24-VOLT)15
255275218 SWITCH GP-START (IGNITION)1
271731219 KNOB2
272723920 BLOCK AS1
275774121 SWITCH GP-WIPER (24-VOLT)1
280270922 CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)3
280271023 CIRCUIT BREAKER AS (20-AMPERE, MANUAL RESET)1
461739524 PANEL AS1
2717312KNOB2
306412925 STRAP AS1
330335626 BAR-BUS1
334388127 PLATE1
334388228 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)2
8T8874NUT-WELD (M5X0.8-THD)4
9R2672BOSS-THREADED (M10X1.5X20-MM)2
335536529 SOCKET-AUXILIARY POWER (12-VOLT)2
337031330 GASKET1
338112831 LAMP AS-DOME (12/24-VOLT, LED)2
340716132 CONVERTER-POWER (24-VOLT TO 12-VOLT)1
352114534 DIODE6
357502035 BAR-BUS1
363499536 RESISTOR2
363499637 RESISTOR1
369592838 PLATE AS1
448548139 PLATE AS1
369593440 CABLE AS1
1598049CABLE (00-GA, RED)(124-CM)
2996082COVER-TERMINAL (RED)1
3482315TERMINAL AS-RING1
2767278TERMINAL-RING1
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
3666147TERMINAL AS-RING1
1355009TUBE-HEAT SHRINK (32-MM DIA)(5-CM)
2749183TERMINAL-RING (00-GA, 1/2-IN SCREW)1
369594441 HARNESS AS-HEATER & AIR COND1
459222042 DISPLAY GP-MONITOR (INFORMATION DISPLAY)1
377776743 BRACKET AS1
6V9632NUT-WELD (M6X1-THD)2
382447344 SWITCH GP-WIPER (24-VOLT)(REAR)1
383216845 BRACKET AS1
398939446 HARNESS AS-CAB1
398939947 CABLE AS1
2836447TERMINAL-RING1
2848481TERMINAL AS-RING1
6V2369CABLE (4-GA, BLACK)(0.4-M)
398940048 BAR-BUS1
398940149 BAR-BUS1
433225151 HARNESS AS-LIGHTING (ROOF)1
488763952 HARNESS AS-CAB1
095073653 SCREW-MACHINE (M5X0.8X10-MM)2
121987054 SCREW-MACHINE (M6X1X40-MM)4
130530055 CLIP1
132578956 CLIP (LADDER)1
134137457 BOLT-SOCKET HEAD (M5X0.8X20-MM)4
1S099458 CLIP (LOOP)3
228608959 PLUG (ROCKER SWITCH)6
243077460 SWITCH AS-ROCKER (24-VOLT)(STAIRWAY ACCESS LIGHTS)1
251119561 SWITCH AS-ROCKER (24-VOLT)(WORK LIGHT)1
251203162 SWITCH AS-ROCKER (24-VOLT)(ROADING LIGHTS)1
256782363 SWITCH AS-ROCKER (24-VOLT)(HAZARD WARNING LIGHTS)1
274740964 SCREW-TRUSS HEAD (M8X1.25X45-MM)8
284362365 SWITCH AS-ROCKER (24-VOLT)(IMPLEMENT LOCKOUT)1
284366566 SWITCH AS-ROCKER (24-VOLT)(HVAC)1
2V177167 GROMMET3
329679168 SWITCH AS-ROCKER (PARKING BRAKE)1
362016969 CONTROL GP-UNPROGRAMMED (ETHERNET SWITCH)1
455958070 CONTROL GP-UNPROGRAMMED (ELECTRONIC)2
3S209371 STRAP-CABLE25
4P758172 CLIP (LADDER)1
5C726173 NUT (M8X1.25-THD)4
6I141874 SPACER (8.2X12.7X28.7-MM THK)8
6V735775 BOLT (M6X1X25-MM)2
6V769976 WASHER-HARD (5.5X13X1.6-MM THK)2
5C287477 NUT (M5X0.8-THD)2
7K118178 STRAP-CABLE91
7U489279 SCREW (8-32X0.75-IN)2
7X060880 WASHER-HARD (10.2X16X2-MM THK)7
7Y738881 SCREW-BUTTON HEAD (M5X0.8X12-MM)8
8C560882 SPACER (6.5X9.5X25.4-MM THK)4
8T032883 WASHER-HARD (5.5X10X1-MM THK)4
8T412184 WASHER-HARD (11X21X2.5-MM THK)29
8T413385 NUT (M10X1.5-THD)1
8T413686 BOLT (M10X1.5X25-MM)10
8T413787 BOLT (M10X1.5X20-MM)14
8T413888 BOLT (M6X1X20-MM)18
8T417989 BOLT (M12X1.75X20-MM)2
8T419590 BOLT (M10X1.5X30-MM)4
8T422391 WASHER-HARD (13.5X25.5X3-MM THK)2
264361792 LOCKWASHER3
9N086993 WASHER-HARD (8.8X25.5X2-MM THK)8
9X204394 SCREW-TRUSS HEAD (M6X1X14-MM)12
9X204595 SCREW-TRUSS HEAD (M6X1X20-MM)14
9X616596 WASHER (6.5X22X2.5-MM THK)4
9X825697 WASHER (6.6X12X2-MM THK)12
9X203898 WASHER (7X19X2-MM THK)10
8T417199 BOLT (M6X1X12-MM)2
