System And Components

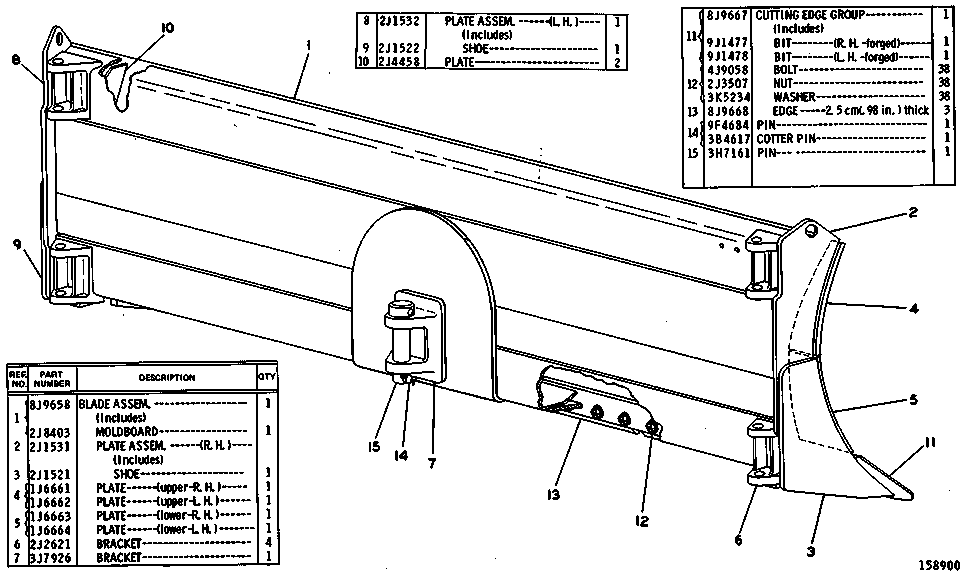

8J9659 BLADE GROUP--AnglingPart of 8J9839 Bulldozer Arrangement listed on Page 4
Group No: 8J9659
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8J9658 | 1 BLADE ASSEM. | 1 | |
| 2J8403 | MOLDBOARD | 1 | |
| 2J1531 | 2 PLATE ASSEM. (R.H.) | NULL | |
| 2J1521 | 3 SHOE | 1 | |
| 1J6661 | 4 PLATE (upper-R.H.) | 1 | |
| 1J6662 | PLATE (upper-L.H.) | 1 | |
| 1J6663 | 5 PLATE (lower-R.H.) | 1 | |
| 1J6664 | PLATE (lower-L.H.) | 1 | |
| 2J2621 | 6 BRACKET | 4 | |
| 3J7926 | 7 BRACKET | 1 | |
| 2J1532 | 8 PLATE ASSEM. (L.H.) | 1 | |
| 2J1522 | 9 SHOE | 1 | |
| 2J4458 | 10 PLATE | 2 | |
| 8J9667 | 11 CUTTING EDGE GROUP | 1 | |
| 9J1477 | BIT (R.H.-forged) | 1 | |
| 9J1478 | BIT (L.H.-forged) | 1 | |
| 4J9058 | 12 BOLT | 38 | |
| 2J3507 | NUT | 38 | |
| 3K5234 | WASHER | 38 | |
| 8J9668 | 13 EDGE 2.5 cm(.98 in.) thick | 3 | |
| 9F4684 | 14 PIN | 1 | |
| 3B4617 | COTTER PIN | 1 | |
| 3H7161 | 15 PIN | 1 |
