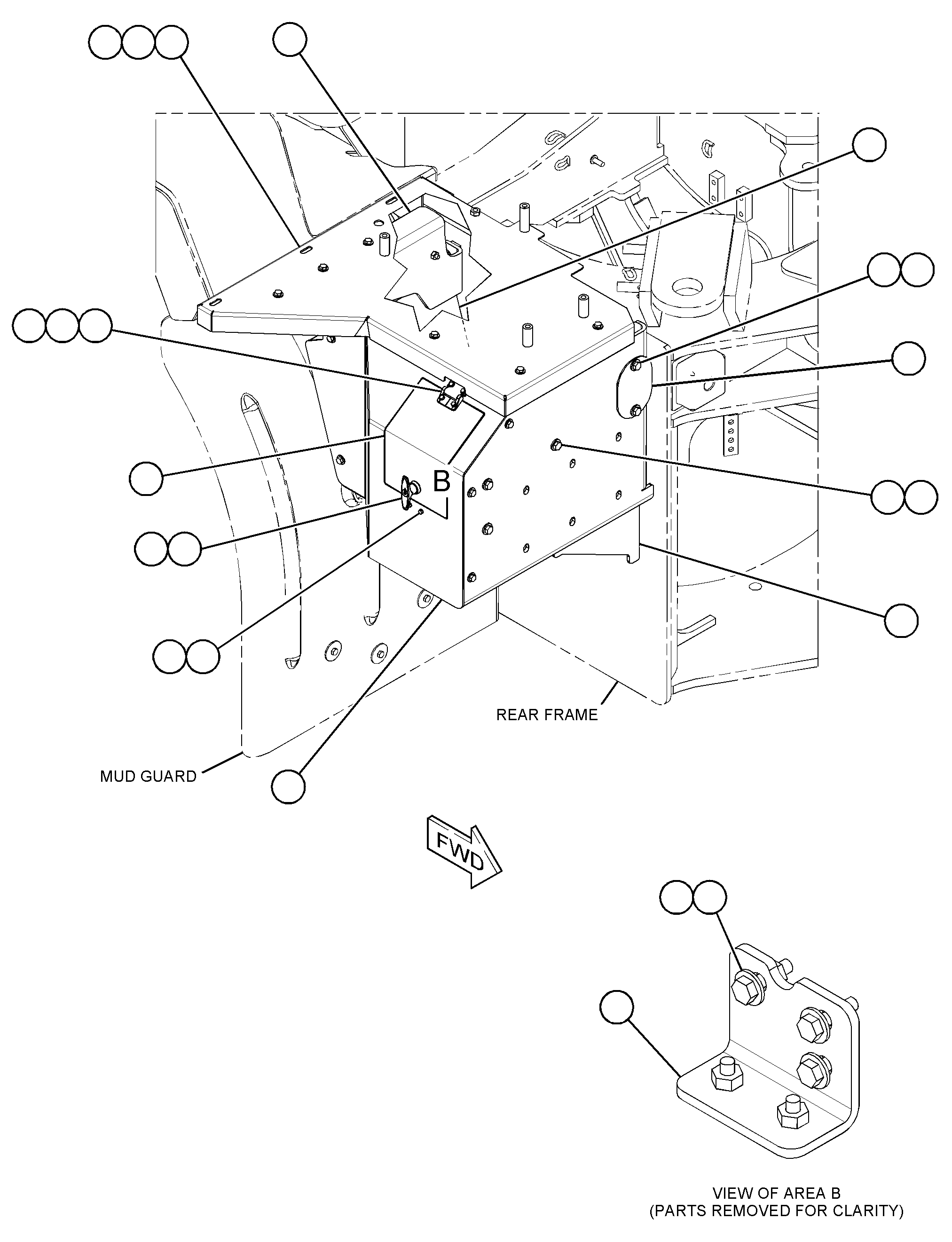

425-1400 MOUNTING GP-DEF TANK -DIESEL EXHAUST FLUIDS/N KTG1600-UP

Group No: 425-1400 · Commonality
Part NumberPart NameQty
31923051 CAM-LATCH1
38740532 HINGE AS1
43030033 PLATE AS1
43030054 PLATE AS1
43030095 PLATE AS1
43030316 PLATE1
48427327 HANDLE AS1
49025008 PLATE AS1
8Y4489BOSS (M10X1.5X35-MM)1
8T3490NUT-WELD (M10X1.5-THD)3
1599540NUT-WELD (M8X1.25-THD)5
1599541NUT-WELD (M10X1.5-THD)2
49025029 PLATE AS1
8T8874NUT-WELD (M5X0.8-THD)4
1599540NUT-WELD (M8X1.25-THD)4
490250510 PLATE AS1
9R9866BOSS-THREADED (M10X1.5-THD)4
1599541NUT-WELD (M10X1.5-THD)1
2944550BOSS-WELD (M10X1.5X60-MM)1
490250711 PLATE AS1
8T8874NUT-WELD (M5X0.8-THD)1
5P411612 WASHER-HARD (8.8X20.5X2-MM THK)22
7I227313 BOLT (M5X0.8X16-MM)6
7X772914 WASHER (11X25X3-MM THK)10
8T032815 WASHER-HARD (5.5X10X1-MM THK)6
8T413616 BOLT (M10X1.5X25-MM)10
8T754717 BOLT (M8X1.25X30-MM)22
7X772918 WASHER (11X25X3-MM THK)3
8T413619 BOLT (M10X1.5X25-MM)3
