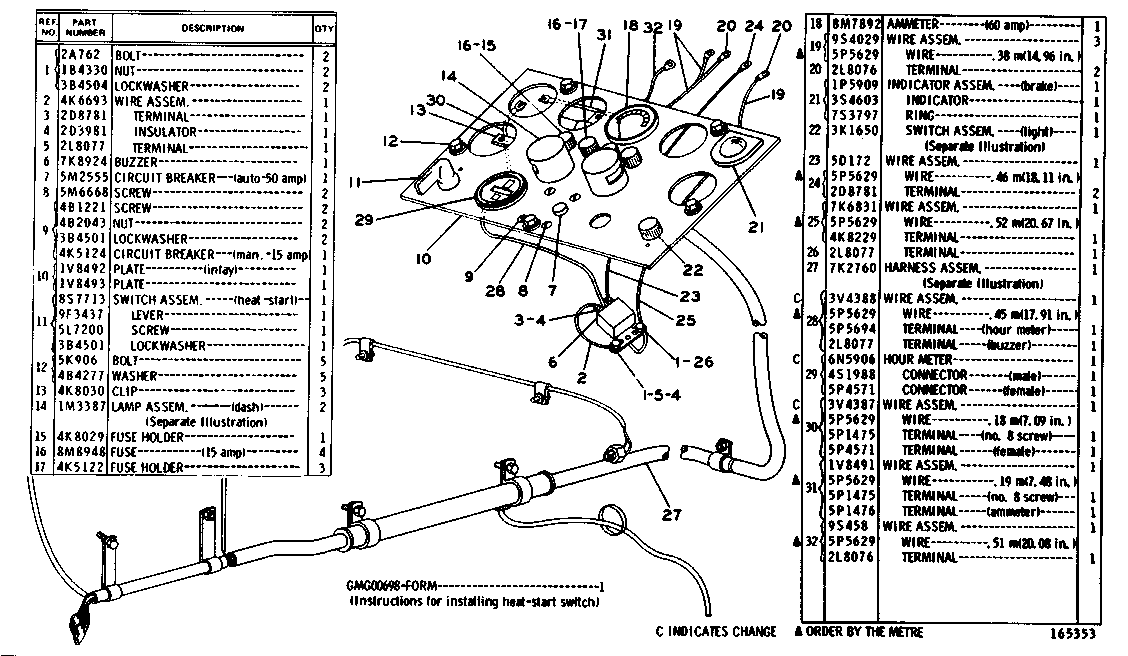

7K2630 BATTERY AND WIRING GROUP--24 Volt--As Viewed from Rear R.H. Side of Machine--Part 2 of 3Serial No. 43J8255 to 43J8787 inclusive

Group No: 7K2630
Part NumberPart NameQty
2A07621 BOLT2
1B4330NUT2
3B4504LOCKWASHER2
4K66932 WIRE ASSEM.1
2D87813 TERMINAL1
2D39814 INSULATOR1
2L80775 TERMINAL1
7K89246 BUZZER1
5M25557 CIRCUIT BREAKER (auto-50 amp)1
5M66688 SCREW2
4B12219 SCREW2
4B2043NUT2
3B4501LOCKWASHER2
4K5124CIRCUIT BREAKER (man.-15 amp)1
1V849210 PLATE (inlay)1
1V8493PLATE1
8S771311 SWITCH ASSEM. (heat-start)1
9F3437LEVER1
5L7200SCREW1
3B4501LOCKWASHER1
5K090612 BOLT5
4B4277WASHER5
4K803013 CLIP3
1M338714 LAMP ASSEM. (dash)2
4K802915 FUSE HOLDER1
8M894816 FUSE (15 amp)4
4K512217 FUSE HOLDER3
8M789218 AMMETER (60 amp)1
9S402919 WIRE ASSEM.3
5P5629WIRE .38 m(14.96 in.)NULL
2L807620 TERMINAL2
1P590921 INDICATOR ASSEM. (brake)1
3S4603INDICATOR1
7S3797RING1
3K165022 SWITCH ASSEM. (light)1
5D017223 WIRE ASSEM.1
5P562924 WIRE .46 m(18.11 in.)NULL
2D8781TERMINAL2
7K683125 WIRE ASSEM.1
5P5629WIRE .52 m(20.67 in.)NULL
4K8229TERMINAL1
2L807726 TERMINAL1
7K276027 HARNESS ASSEM.1
3V438828 WIRE ASSEM.1
5P5629WIRE .45 m(17.91 in.)NULL
5P5694TERMINAL (hour meter)1
2L8077TERMINAL (buzzer)1
6N590629 HOUR METER1
4S1988CONNECTOR (male)1
5P4571CONNECTOR (female)1
3V438730 WIRE ASSEM.1
5P5629WIRE .18 m(7.09 in.)NULL
5P1475TERMINAL (no. 8 screw)1
5P4571TERMINAL (female)1
1V849131 WIRE ASSEM.1
5P5629WIRE .19 m(7.48 in.)NULL
5P1475TERMINAL (no. 8 screw)1
5P1476TERMINAL (ammeter)1
9S045832 WIRE ASSEM.1
5P5629WIRE .51 m(20.08 in.)NULL
2L8076TERMINAL1
