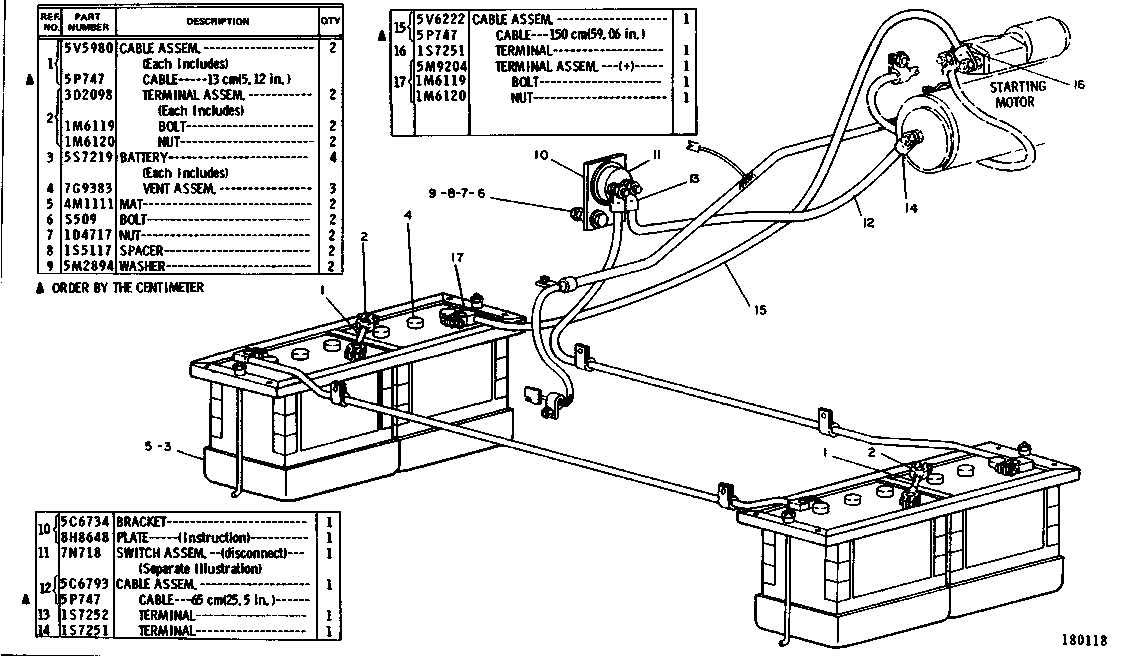

5V4745 BATTERY AND WIRING GROUP--24 Volt--Part 3 of 4Serial No. 43J12169-Up. 7N718 Switch parts are shown on Page 80B

Group No: 5V4745
Part NumberPart NameQty
5V59801 CABLE ASSEM.2
5P0747CABLE 13 cm(5.12 in.)NULL
3D20982 TERMINAL ASSEM.2
1M6119BOLT2
1M6120NUT2
5S72193 BATTERY4
7G93834 VENT ASSEM.3
4M11115 MAT2
0S05096 BOLT2
1D47177 NUT2
1S51178 SPACER2
5M28949 WASHER2
5C673410 BRACKET1
8H8648PLATE (Instruction)1
7N071811 SWITCH ASSEM. (disconnect)1
5C679312 CABLE ASSEM.1
5P0747CABLE 65 cm(25.5 in.)NULL
1S725213 TERMINAL1
1S725114 TERMINAL1
5V622215 CABLE ASSEM.1
5P0747CABLE 150 cm(59.06 in.)NULL
1S725116 TERMINAL1
5M920417 TERMINAL ASSEM. (+)1
1M6119BOLT1
1M6120NUT1
