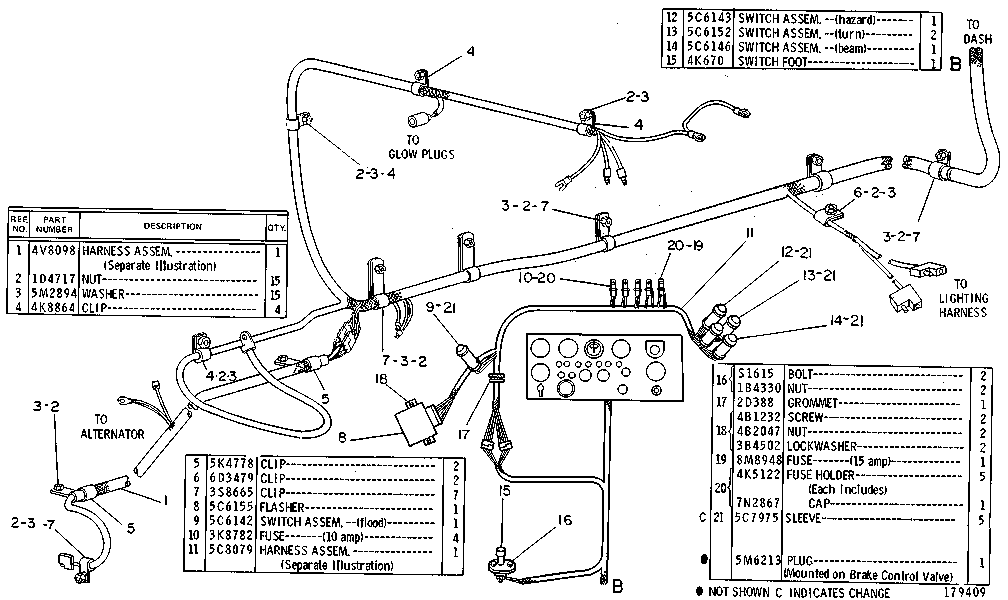

4V8097 BATTERY AND WIRING GROUP--Part 1 of 3--Type 1Serial No. 43J12169-Up. Part of 5V3245 Roading Arrangement. 4V8098 and 5C8079--Pages 80B & 80C

Group No: 4V8097
Part NumberPart NameQty
4V80981 HARNESS ASSEM.1
1D47172 NUT15
5M28943 WASHER15
4K88644 CLIP4
5K47785 CLIP2
6D34796 CLIP2
3S86657 CLIP7
5C61558 FLASHER1
5C61429 SWITCH ASSEM. (flood)1
3K878210 FUSE (10 amp)4
5C807911 HARNESS ASSEM.1
5C614312 SWITCH ASSEM. (hazard)1
5C615213 SWITCH ASSEM. (turn)2
5C614614 SWITCH ASSEM. (beam)1
4K067015 SWITCH FOOT1
0S161516 BOLT2
1B4330NUT2
2D038817 GROMMET1
4B123218 SCREW2
4B2047NUT2
3B4502LOCKWASHER2
8M894819 FUSE (15 amp)1
4K512220 FUSE HOLDER5
7N2867CAP1
5C797521 SLEEVE5
5M6213PLUG1
