System And Components

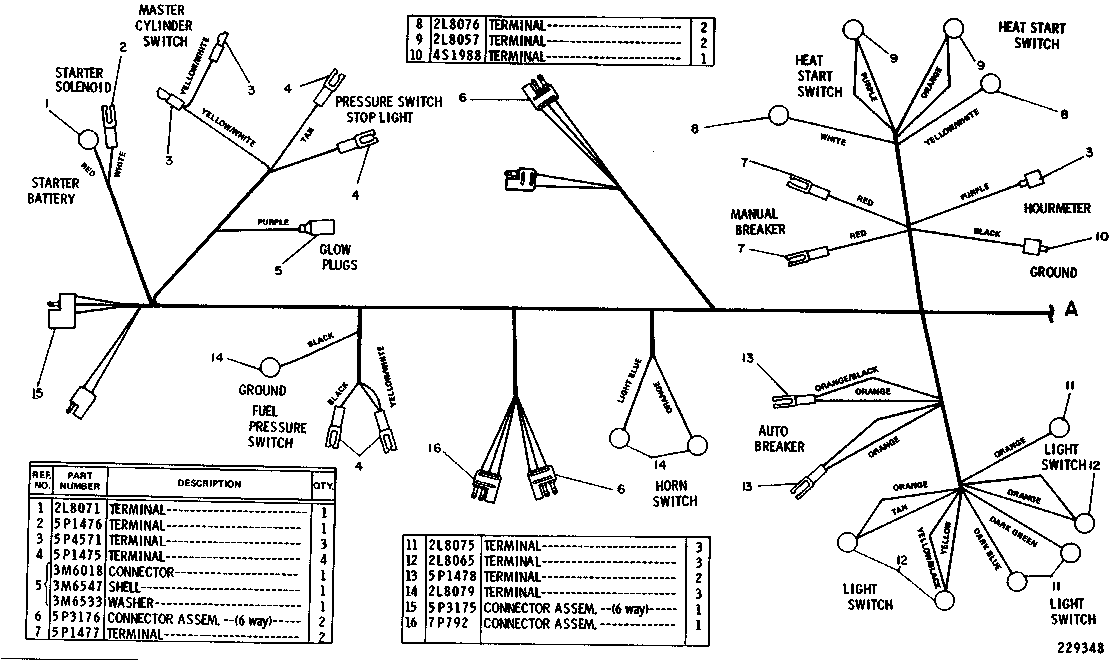

5C8088 HARNESS ASSEMBLY--Part 1 of 2Serial No. 43J12169-Up. Part of 4V8097 Battery and Wiring Group shown on Page 79P
Group No: 5C8088
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2L8071 | 1 TERMINAL | 1 | |
| 5P1476 | 2 TERMINAL | 1 | |
| 5P4571 | 3 TERMINAL | 3 | |
| 5P1475 | 4 TERMINAL | 4 | |
| 3M6018 | 5 CONNECTOR | 1 | |
| 3M6547 | SHELL | 1 | |
| 3M6533 | WASHER | 1 | |
| 5P3176 | 6 CONNECTOR ASSEM. (6 way) | 2 | |
| 5P1477 | 7 TERMINAL | 2 | |
| 2L8076 | 8 TERMINAL | 2 | |
| 2L8057 | 9 TERMINAL | 2 | |
| 4S1988 | 10 TERMINAL | 1 | |
| 2L8075 | 11 TERMINAL | 3 | |
| 2L8065 | 12 TERMINAL | 3 | |
| 5P1478 | 13 TERMINAL | 2 | |
| 2L8079 | 14 TERMINAL | 3 | |
| 5P3175 | 15 CONNECTOR ASSEM. (6 way) | 1 | |
| 7P0792 | 16 CONNECTOR ASSEM. | 1 |
