System And Components

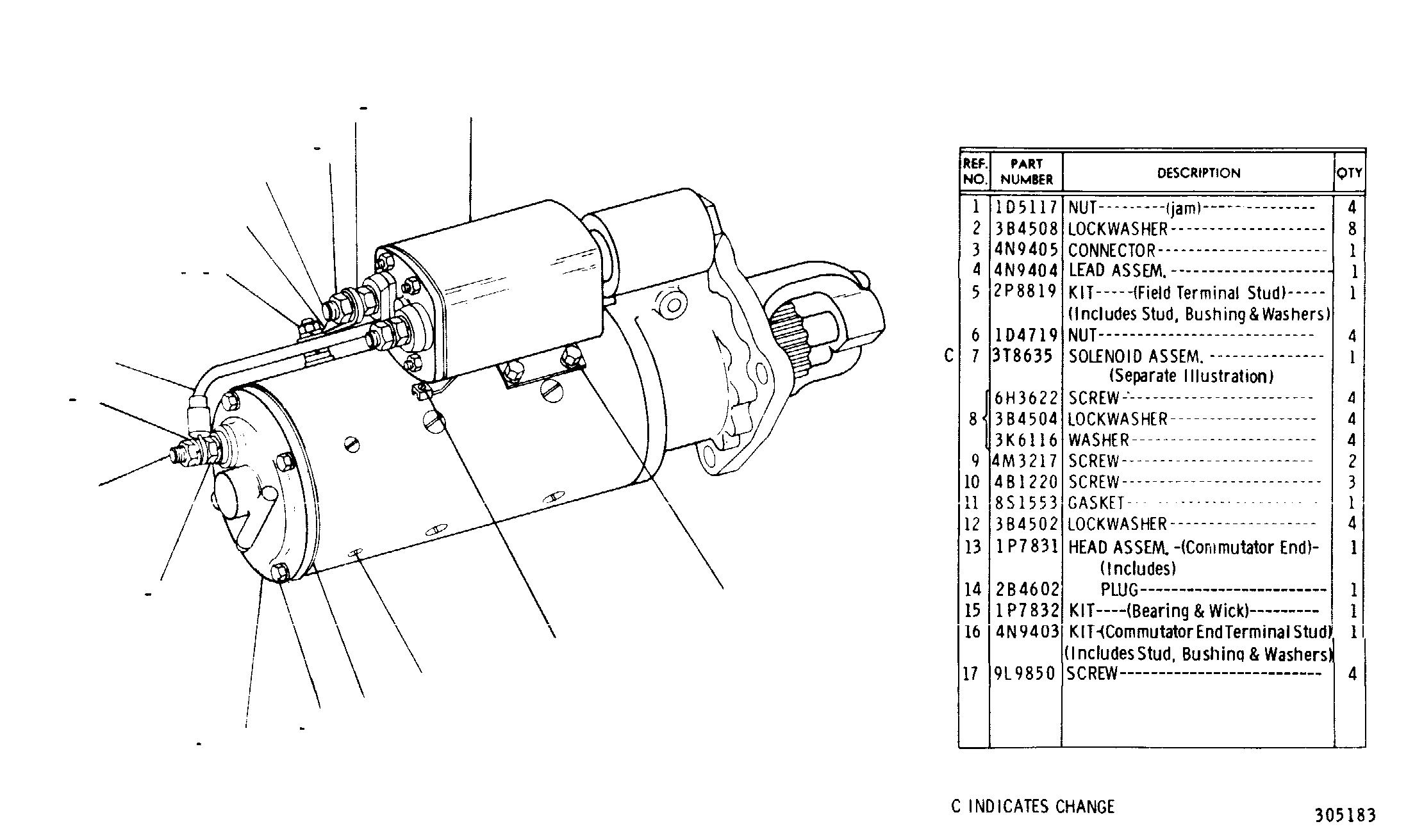

9G4338 ELECTRIC STARTING MOTOR GROUP--Prestolite--24 Volt--Part 1--Type 3Part of 4N3181 Electric Starting Motor. 3T8635--Page 96B. AN ATTACHMENT
Group No: 9G4338
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1D5117 | 1 NUT (jam) | 4 | |
| 3B4508 | 2 LOCKWASHER | 8 | |
| 4N9405 | 3 CONNECTOR | 1 | |
| 4N9404 | 4 LEAD ASSEM. | 1 | |
| 2P8819 | 5 KIT (Field Terminal Stud) | 1 | |
| 1D4719 | 6 NUT | 4 | |
| 3T8635 | 7 SOLENOID ASSEM. | 1 | |
| 6H3622 | 8 SCREW | 4 | |
| 3B4504 | LOCKWASHER | 4 | |
| 3K6116 | WASHER | 4 | |
| 4M3217 | 9 SCREW | 2 | |
| 4B1220 | 10 SCREW | 3 | |
| 8S1553 | 11 GASKET | 1 | |
| 3B4502 | 12 LOCKWASHER | 4 | |
| 1P7831 | 13 HEAD ASSEM. (Commutator End) | 1 | |
| 2B4602 | 14 PLUG | 1 | |
| 1P7832 | 15 KIT (Bearing and Wick) | 1 | |
| 4N9403 | 16 KIT (Commutator End Terminal Stud) | 1 | |
| 9L9850 | 17 SCREW | 4 |
