System And Components

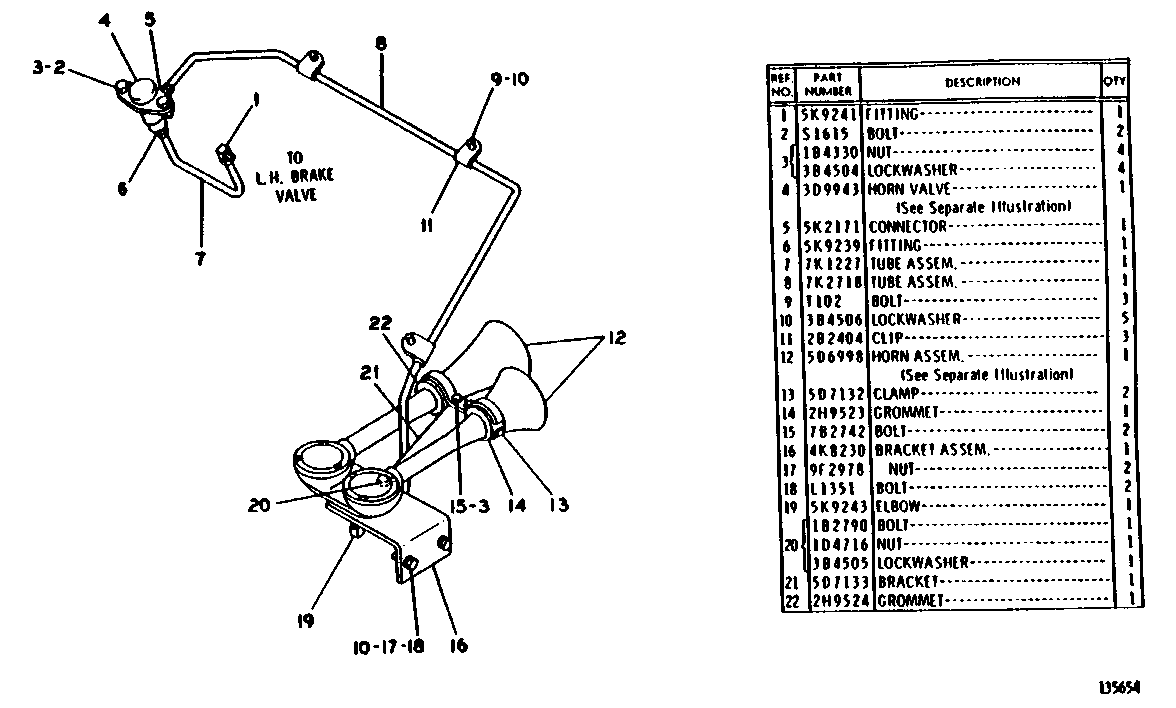

HORN, HORN VALVE AND LINES--As Viewed from Rear Right Hand Side of MachineSerial No. 43J6268 to 43J8021 and 43J8023 to 43J8047 inclusive
IES: HEBP11040442
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5K9241 | 1 FITTING | 1 | |
| 0S1615 | 2 BOLT | 2 | |
| 1B4330 | 3 NUT | 4 | |
| 3B4504 | LOCKWASHER | 4 | |
| 3D9943 | 4 HORN VALVE | 1 | |
| 5K2171 | 5 CONNECTOR | 1 | |
| 5K9239 | 6 FITTING | 1 | |
| 7K1227 | 7 TUBE ASSEM. | 1 | |
| 7K2718 | 8 TUBE ASSEM. | 1 | |
| 0T0102 | 9 BOLT | 3 | |
| 3B4506 | 10 LOCKWASHER | 5 | |
| 2B2404 | 11 CLIP | 3 | |
| 5D6998 | 12 HORN ASSEM. | 1 | |
| 5D7132 | 13 CLAMP | 2 | |
| 2H9523 | 14 GROMMET | 1 | |
| 7B2742 | 15 BOLT | 2 | |
| 4K8230 | 16 BRACKET ASSEM. | 1 | |
| 9F2978 | 17 NUT | 2 | |
| 0L1351 | 18 BOLT | 2 | |
| 5K9243 | 19 ELBOW | 1 | |
| 1B2790 | 20 BOLT | 1 | |
| 1D4716 | NUT | 1 | |
| 3B4505 | LOCKWASHER | 1 | |
| 5D7133 | 21 BRACKET | 1 | |
| 2H9524 | 22 GROMMET | 1 |
