System And Components

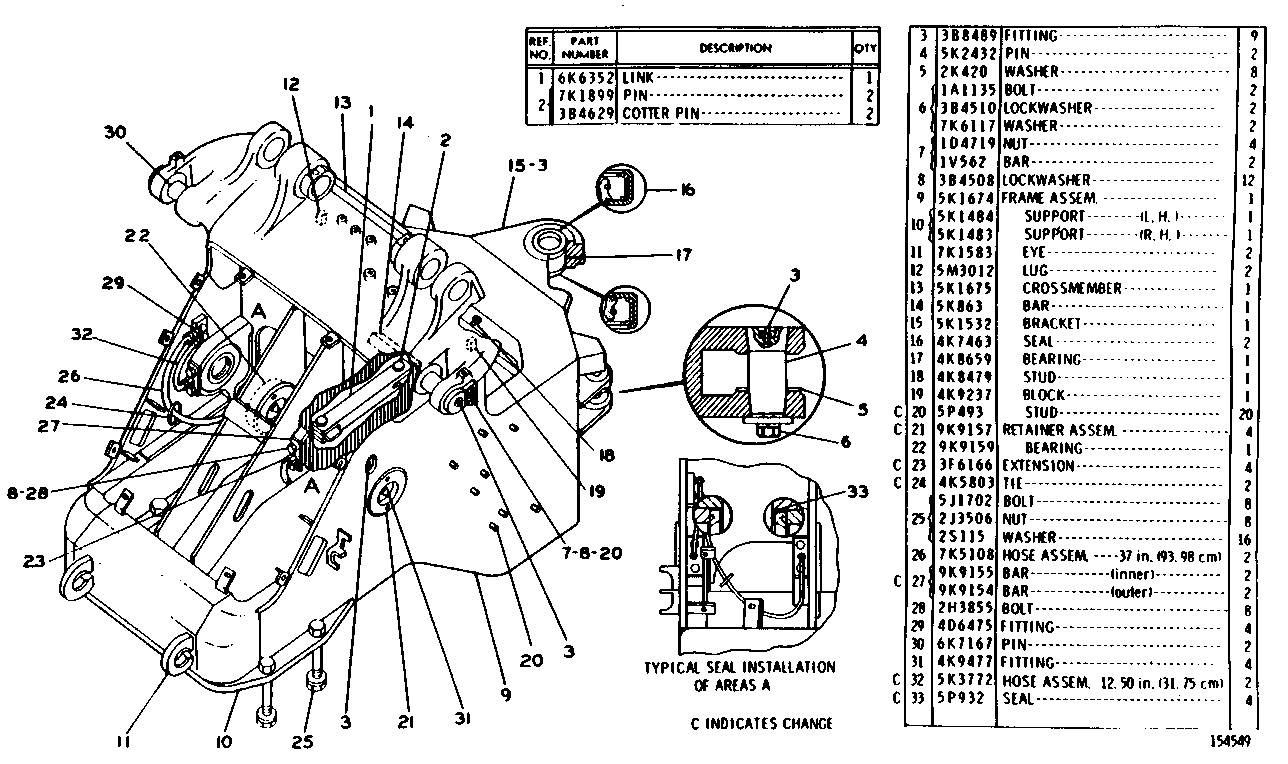

5K1673 FRONT FRAME GROUPSerial No. 43J6268 to 43J7256 inclusive
Group No: 5K1673
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6K6352 | 1 LINK | 1 | |
| 7K1899 | 2 PIN | 2 | |
| 3B4629 | COTTER PIN | 2 | |
| 3B8489 | 3 FITTING | 9 | |
| 5K2432 | 4 PIN | 2 | |
| 2K0420 | 5 WASHER | 8 | |
| 1A1135 | 6 BOLT | 2 | |
| 3B4510 | LOCKWASHER | 2 | |
| 7K6117 | WASHER | 2 | |
| 1D4719 | 7 NUT | 4 | |
| 1V0562 | BAR | 2 | |
| 3B4508 | 8 LOCKWASHER | 12 | |
| 5K1674 | 9 FRAME ASSEM. | 1 | |
| 5K1484 | 10 SUPPORT (L.H.) | 1 | |
| 5K1483 | SUPPORT (R.H.) | 1 | |
| 7K1583 | 11 EYE | 2 | |
| 5M3012 | 12 LUG | 2 | |
| 5K1675 | 13 CROSSMEMBER | 1 | |
| 5K0863 | 14 BAR | 1 | |
| 5K1532 | 15 BRACKET | 1 | |
| 4K7463 | 16 SEAL | 2 | |
| 4K8659 | 17 BEARING | 1 | |
| 4K8479 | 18 STUD | 1 | |
| 4K9237 | 19 BLOCK | 1 | |
| 5P0493 | 20 STUD | 20 | |
| 9K9157 | 21 RETAINER ASSEM. | 4 | |
| 9K9159 | 22 BEARING | 1 | |
| 3F6166 | 23 EXTENSION | 4 | |
| 4K5803 | 24 TIE | 2 | |
| 5J1702 | 25 BOLT | 8 | |
| 2J3506 | NUT | 8 | |
| 2S0115 | WASHER | 16 | |
| 7K5108 | 26 HOSE ASSEM. 37 in. (93.98 cm) | 2 | |
| 9K9155 | 27 BAR (inner) | 2 | |
| 9K9154 | BAR (outer) | 2 | |
| 2H3855 | 28 BOLT | 8 | |
| 4D6475 | 29 FITTING | 4 | |
| 6K7167 | 30 PIN | 2 | |
| 4K9477 | 31 FITTING | 4 | |
| 5K3772 | 32 HOSE ASSEM. 12.50 in. (31.75 cm) | 2 | |
| 5P0932 | 33 SEAL | 4 |
