System And Components

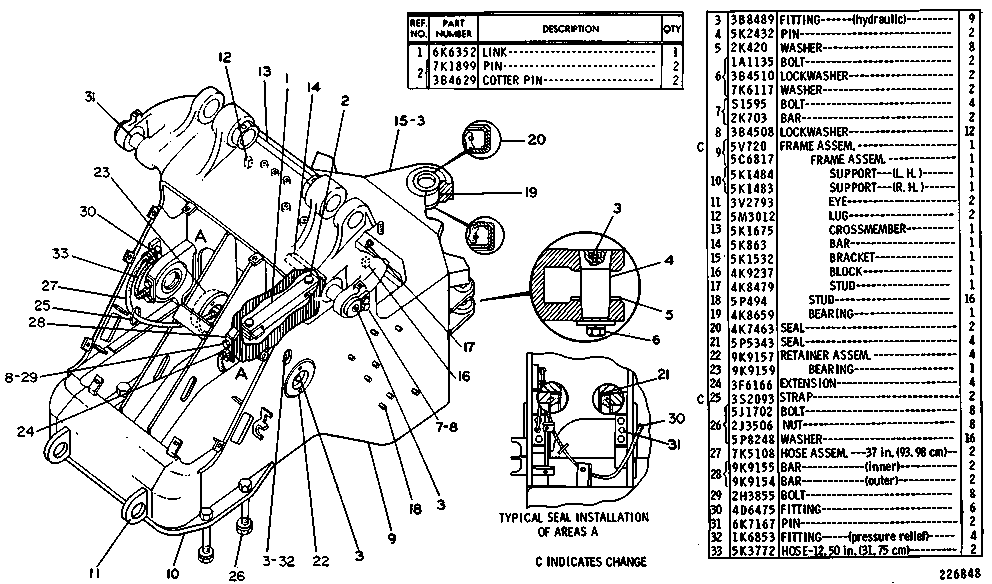

5K1673 FRONT FRAME GROUPSerial No. 43J11464-Up
Group No: 5K1673
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6K6352 | 1 LINK | 1 | |
| 7K1899 | 2 PIN | 2 | |
| 3B4629 | COTTER PIN | 2 | |
| 3B8489 | 3 FITTING (hydraulic) | 9 | |
| 5K2432 | 4 PIN | 2 | |
| 2K0420 | 5 WASHER | 8 | |
| 1A1135 | 6 BOLT | 2 | |
| 3B4510 | LOCKWASHER | 2 | |
| 7K6117 | WASHER | 2 | |
| 0S1595 | 7 BOLT | 4 | |
| 2K0703 | BAR | 2 | |
| 3B4508 | 8 LOCKWASHER | 12 | |
| 5V0720 | 9 FRAME ASSEM. | 1 | |
| 5C6817 | FRAME ASSEM. | 1 | |
| 5K1484 | 10 SUPPORT (L.H.) | 1 | |
| 5K1483 | SUPPORT (R.H.) | 1 | |
| 3V2793 | 11 EYE | 2 | |
| 5M3012 | 12 LUG | 2 | |
| 5K1675 | 13 CROSSMEMBER | 1 | |
| 5K0863 | 14 BAR | 1 | |
| 5K1532 | 15 BRACKET | 1 | |
| 4K9237 | 16 BLOCK | 1 | |
| 4K8479 | 17 STUD | 1 | |
| 5P0494 | 18 STUD | 16 | |
| 4K8659 | 19 BEARING | 1 | |
| 4K7463 | 20 SEAL | 2 | |
| 5P5343 | 21 SEAL | 4 | |
| 9K9157 | 22 RETAINER ASSEM. | 4 | |
| 9K9159 | 23 BEARING | 1 | |
| 3F6166 | 24 EXTENSION | 4 | |
| 3S2093 | 25 STRAP | 2 | |
| 5J1702 | 26 BOLT | 8 | |
| 2J3506 | NUT | 8 | |
| 5P8248 | WASHER | 16 | |
| 7K5108 | 27 HOSE ASSEM. 37 in.(93.98 cm) | 2 | |
| 9K9155 | 28 BAR (inner) | 2 | |
| 9K9154 | BAR (outer) | 2 | |
| 2H3855 | 29 BOLT | 8 | |
| 4D6475 | 30 FITTING | 6 | |
| 6K7167 | 31 PIN | 2 | |
| 1K6853 | 32 FITTING (pressure relief) | 4 | |
| 5K3772 | 33 HOSE 12.50 in.(31.75 cm) | 2 |
