System And Components

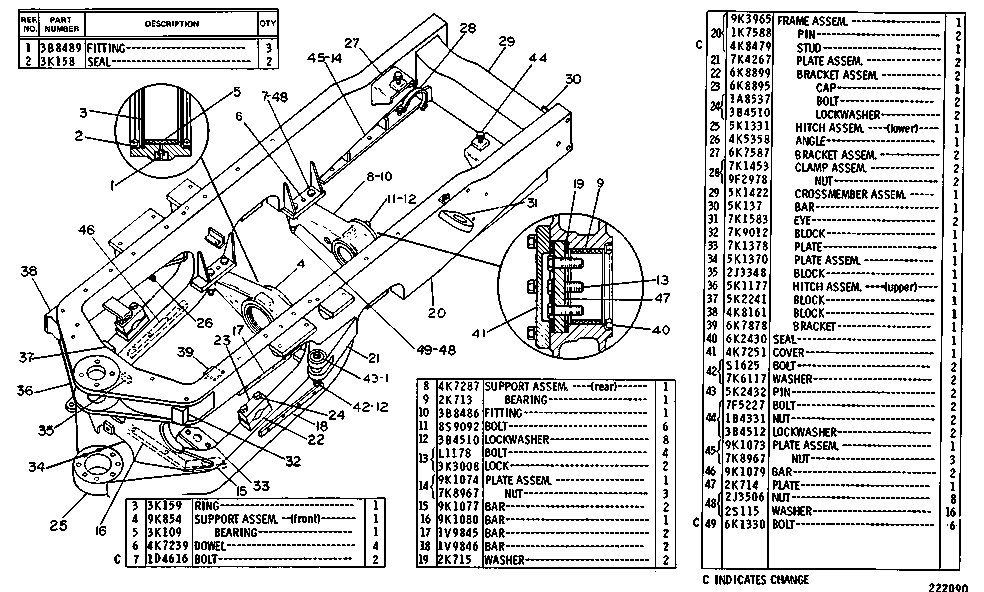

5C2973 REAR FRAME GROUPPart of 5C2083 & 5C6564 Sound Suppression Arrangement listed on Pages 299-1 & 299-2
Group No: 5C2973
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B8489 | 1 FITTING | 3 | |
| 3K0158 | 2 SEAL | 2 | |
| 3K0159 | 3 RING | 1 | |
| 9K0854 | 4 SUPPORT ASSEM. (front) | 1 | |
| 3K0109 | 5 BEARING | 1 | |
| 4K7239 | 6 DOWEL | 4 | |
| 1D4616 | 7 BOLT | 2 | |
| 4K7287 | 8 SUPPORT ASSEM. (rear) | 1 | |
| 2K0713 | 9 BEARING | 1 | |
| 3B8486 | 10 FITTING | 1 | |
| 8S9092 | 11 BOLT | 6 | |
| 3B4510 | 12 LOCKWASHER | 8 | |
| 0L1178 | 13 BOLT | 4 | |
| 3K3008 | LOCK | 2 | |
| 9K1074 | 14 PLATE ASSEM. | 1 | |
| 7K8967 | NUT | 3 | |
| 9K1077 | 15 BAR | 2 | |
| 9K1080 | 16 BAR | 1 | |
| 1V9845 | 17 BAR | 2 | |
| 1V9846 | 18 BAR | 2 | |
| 2K0715 | 19 WASHER | 2 | |
| 9K3965 | 20 FRAME ASSEM. | 1 | |
| 1K7588 | PIN | 2 | |
| 4K8479 | STUD | 1 | |
| 7K4267 | 21 PLATE ASSEM. | 2 | |
| 6K8899 | 22 BRACKET ASSEM. | 2 | |
| 6K8895 | 23 CAP | 1 | |
| 1A8537 | 24 BOLT | 2 | |
| 3B4510 | LOCKWASHER | 2 | |
| 5K1331 | 25 HITCH ASSEM. (lower) | 1 | |
| 4K5358 | 26 ANGLE | 1 | |
| 6K7587 | 27 BRACKET ASSEM. | 2 | |
| 7K1453 | 28 CLAMP ASSEM. | 2 | |
| 9F2978 | NUT | 2 | |
| 5K1422 | 29 CROSSMEMBER ASSEM. | 1 | |
| 5K0137 | 30 BAR | 1 | |
| 7K1583 | 31 EYE | 2 | |
| 7K9012 | 32 BLOCK | 1 | |
| 7K1378 | 33 PLATE | 1 | |
| 5K1370 | 34 PLATE ASSEM. | 1 | |
| 2J3348 | 35 BLOCK | 1 | |
| 5K1177 | 36 HITCH ASSEM. (upper) | 1 | |
| 5K2241 | 37 BLOCK | 1 | |
| 4K8161 | 38 BLOCK | 1 | |
| 6K7878 | 39 BRACKET | 1 | |
| 6K2430 | 40 SEAL | 1 | |
| 4K7251 | 41 COVER | 1 | |
| 0S1625 | 42 BOLT | 2 | |
| 7K6117 | WASHER | 2 | |
| 5K2432 | 43 PIN | 2 | |
| 7F5227 | 44 BOLT | 2 | |
| 1B4331 | NUT | 2 | |
| 3B4512 | LOCKWASHER | 2 | |
| 9K1073 | 45 PLATE ASSEM. | 1 | |
| 7K8967 | NUT | 3 | |
| 9K1079 | 46 BAR | 2 | |
| 2K0714 | 47 PLATE | 1 | |
| 2J3506 | 48 NUT | 8 | |
| 2S0115 | WASHER | 16 | |
| 6K1330 | 49 BOLT | 6 |
