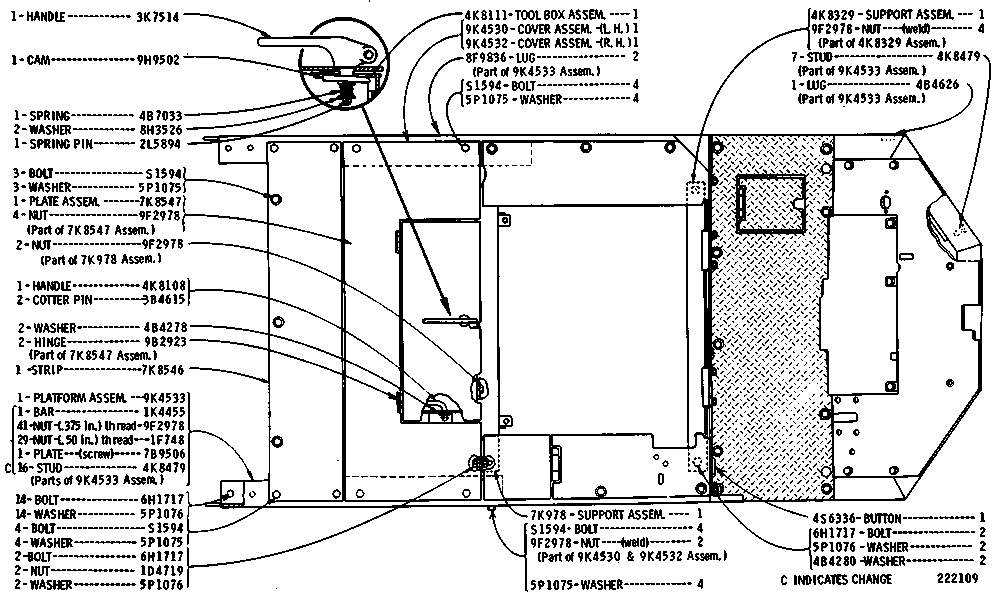

2V9877 OPERATOR PLATFORM GROUP--Top View--Part 1 of 2Serial No. 43J8022 and 43J8048 to 43J10235 inclusive

Group No: 2V9877
Part NumberPart NameQty
3K7514HANDLE1
9H9502CAM1
4B7033SPRING1
8H3526WASHER2
2L5894SPRING PIN1
0S1594BOLT3
5P1075WASHER3
7K8547PLATE ASSEM.1
9F2978NUT4
9F2978NUT2
4K8108HANDLE1
3B4615COTTER PIN2
4B4278WASHER2
9B2923HINGE2
7K8546STRIP1
9K4533PLATFORM ASSEM.1
1K4455BAR1
9F2978NUT (.375 in.) thread41
1F0748NUT (.50 in.) thread29
7B9506PLATE (screw)1
4K8479STUD16
6H1717BOLT14
5P1076WASHER14
0S1594BOLT4
5P1075WASHER4
6H1717BOLT2
1D4719NUT2
5P1076WASHER2
4K8111TOOL BOX ASSEM.1
9K4530COVER ASSEM. (L.H.)1
9K4532COVER ASSEM. (R.H.)1
8F9836LUG2
0S1594BOLT4
5P1075WASHER4
7K0978SUPPORT ASSEM.1
0S1594BOLT4
9F2978NUT (weld)2
5P1075WASHER4
4K8329SUPPORT ASSEM.1
9F2978NUT (weld)4
4K8479STUD7
4B4626LUG1
4S6336BUTTON1
6H1717BOLT2
5P1076WASHER2
4B4280WASHER2
