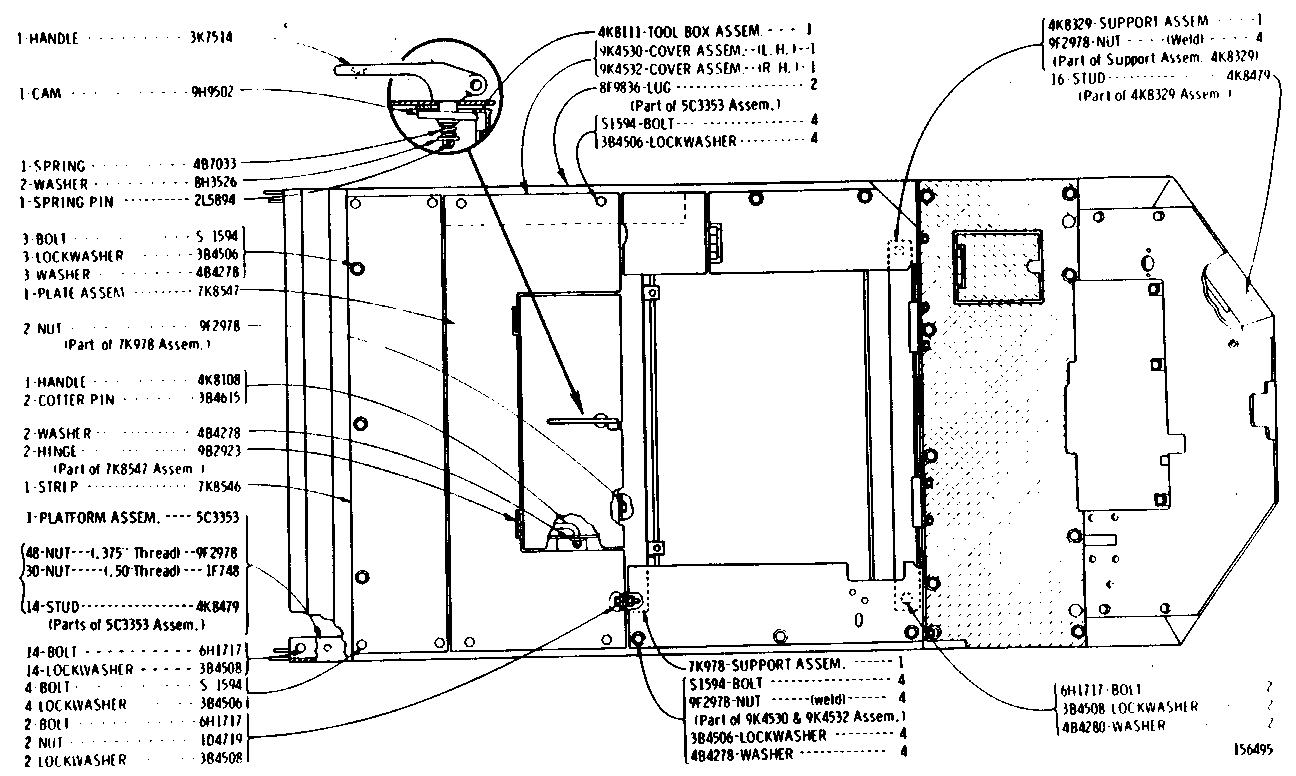

5C3351 OPERATOR PLATFORM GROUP--Top View--Part 1--Type 1Serial No. 43J6268 to 43J10908 inclusive. Part of 5C2083 Sound Suppression Arrangement listed on Page 299-1

Group No: 5C3351
Part NumberPart NameQty
3K7514HANDLE1
9H9502CAM1
4B7033SPRING1
8H3526WASHER2
2L5894SPRING PIN1
0S1594BOLT3
3B4506LOCKWASHER3
4B4278WASHER3
7K8547PLATE ASSEM.1
9F2978NUT2
4K8108HANDLE1
3B4615COTTER PIN2
4B4278WASHER2
9B2923HINGE2
7K8546STRIP1
5C3353PLATFORM ASSEM.1
9F2978NUT (.375" Thread)48
1F0748NUT (.50"Thread)30
4K8479STUD14
6H1717BOLT14
3B4508LOCKWASHER14
0S1594BOLT4
3B4506LOCKWASHER4
6H1717BOLT2
1D4719NUT2
3B4508LOCKWASHER2
4K8111TOOL BOX ASSEM.1
9K4530COVER ASSEM. (L.H.)1
3K4532COVER ASSEM. (R.H.)1
8F9836LUG2
0S1594BOLT4
3B4506LOCKWASHER4
7K0978SUPPORT ASSEM.1
0S1594BOLT4
9F2978NUT (weld)4
3B4506LOCKWASHER4
4B4278WASHER4
4K8329SUPPORT ASSEM.1
9F2978NUT (Weld)4
4K8479STUD16
6H1717BOLT2
3B4508LOCKWASHER2
4B4280WASHER2
