System And Components

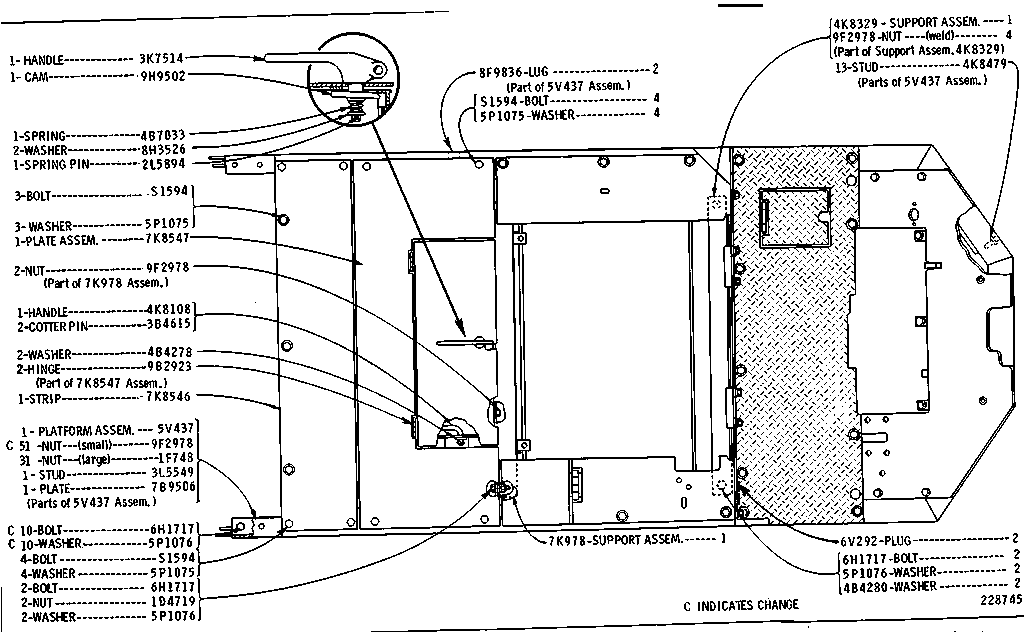

5V436 OPERATOR PLATFORM GROUP--Top View--Part 1Serial No. 43J12169-Up
Group No: 5V436
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3K7514 | HANDLE | 1 | |
| 9H9502 | CAM | 1 | |
| 4B7033 | SPRING | 1 | |
| 8H3526 | WASHER | 2 | |
| 2L5894 | SPRING PIN | 1 | |
| 0S1594 | BOLT | 3 | |
| 5P1075 | WASHER | 3 | |
| 7K8547 | PLATE ASSEM. | 1 | |
| 9F2978 | NUT | 2 | |
| 4K8108 | HANDLE | 1 | |
| 3B4615 | COTTER PIN | 2 | |
| 4B4278 | WASHER | 2 | |
| 9B2923 | HINGE | 2 | |
| 7K8546 | STRIP | 1 | |
| 5V0437 | PLATFORM ASSEM. | 1 | |
| 9F2978 | NUT (small) | 51 | |
| 1F0748 | NUT (large) | 31 | |
| 3L5549 | STUD | 1 | |
| 7B9506 | PLATE | 1 | |
| 6H1717 | BOLT | 10 | |
| 5P1076 | WASHER | 10 | |
| 0S1594 | BOLT | 4 | |
| 5P1075 | WASHER | 4 | |
| 6H1717 | BOLT | 2 | |
| 1D4719 | NUT | 2 | |
| 5P1076 | WASHER | 2 | |
| 8F9836 | LUG | 2 | |
| 0S1594 | BOLT | 4 | |
| 5P1075 | WASHER | 4 | |
| 7K0978 | SUPPORT ASSEM. | 1 | |
| 4K8329 | SUPPORT ASSEM. | 1 | |
| 9F2978 | NUT (weld) | 4 | |
| 4K8479 | STUD | 13 | |
| 6V0292 | PLUG | 2 | |
| 6H1717 | BOLT | 2 | |
| 5P1076 | WASHER | 2 | |
| 4B4280 | WASHER | 2 |
