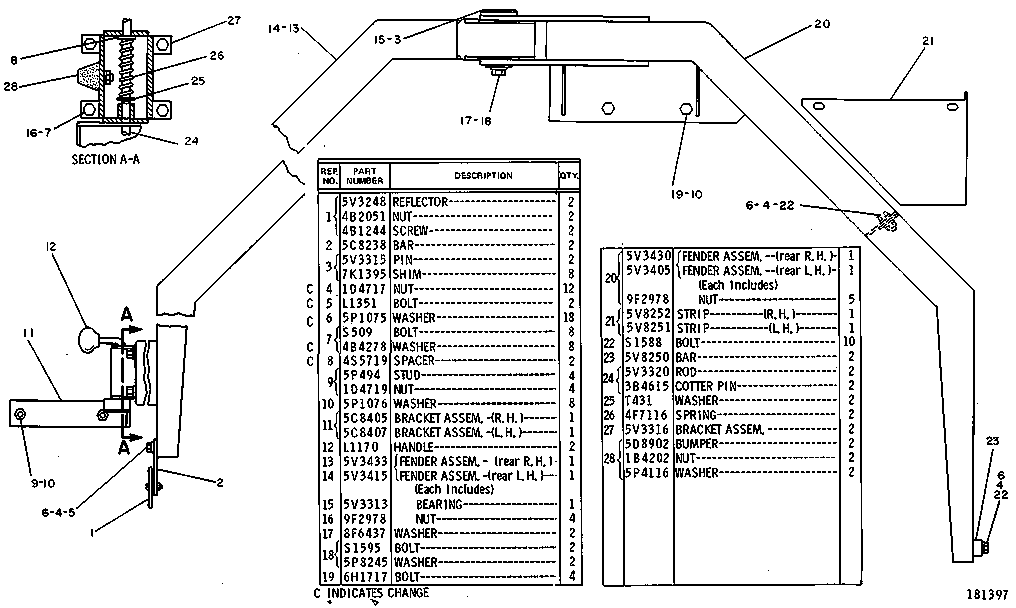

5V8253 FENDER GROUP--Part 2 of 2Serial No. 43J12169-Up

Group No: 5V8253
Part NumberPart NameQty
5V32481 REFLECTOR2
4B2051NUT2
4B1244SCREW2
5C82382 BAR2
5V33153 PIN2
7K1395SHIM8
1D47174 NUT12
0L13515 BOLT2
5P10756 WASHER18
0S05097 BOLT8
4B4278WASHER8
4S57198 SPACER2
5P04949 STUD4
1D4719NUT4
5P107610 WASHER8
5C840511 BRACKET ASSEM. (R.H.)1
5C8407BRACKET ASSEM. (L.H.)1
0L117012 HANDLE2
5V343313 FENDER ASSEM. (rear R.H.)1
5V341514 FENDER ASSEM. (rear L.H.)1
5V331315 BEARING1
9F297816 NUT4
8F643717 WASHER2
0S159518 BOLT2
5P8245WASHER2
6H171719 BOLT4
5V343020 FENDER ASSEM. (rear R.H.)1
5V3405FENDER ASSEM. (rear L.H.)1
9F2978NUT5
5V825221 STRIP (R.H.)1
5V8251STRIP (L.H.)1
0S158822 BOLT10
5V825023 BAR2
5V332024 ROD2
3B4615COTTER PIN2
0T043125 WASHER2
4F711626 SPRING2
5V331627 BRACKET ASSEM.2
5D890228 BUMPER2
1B4202NUT2
5P4116WASHER2
