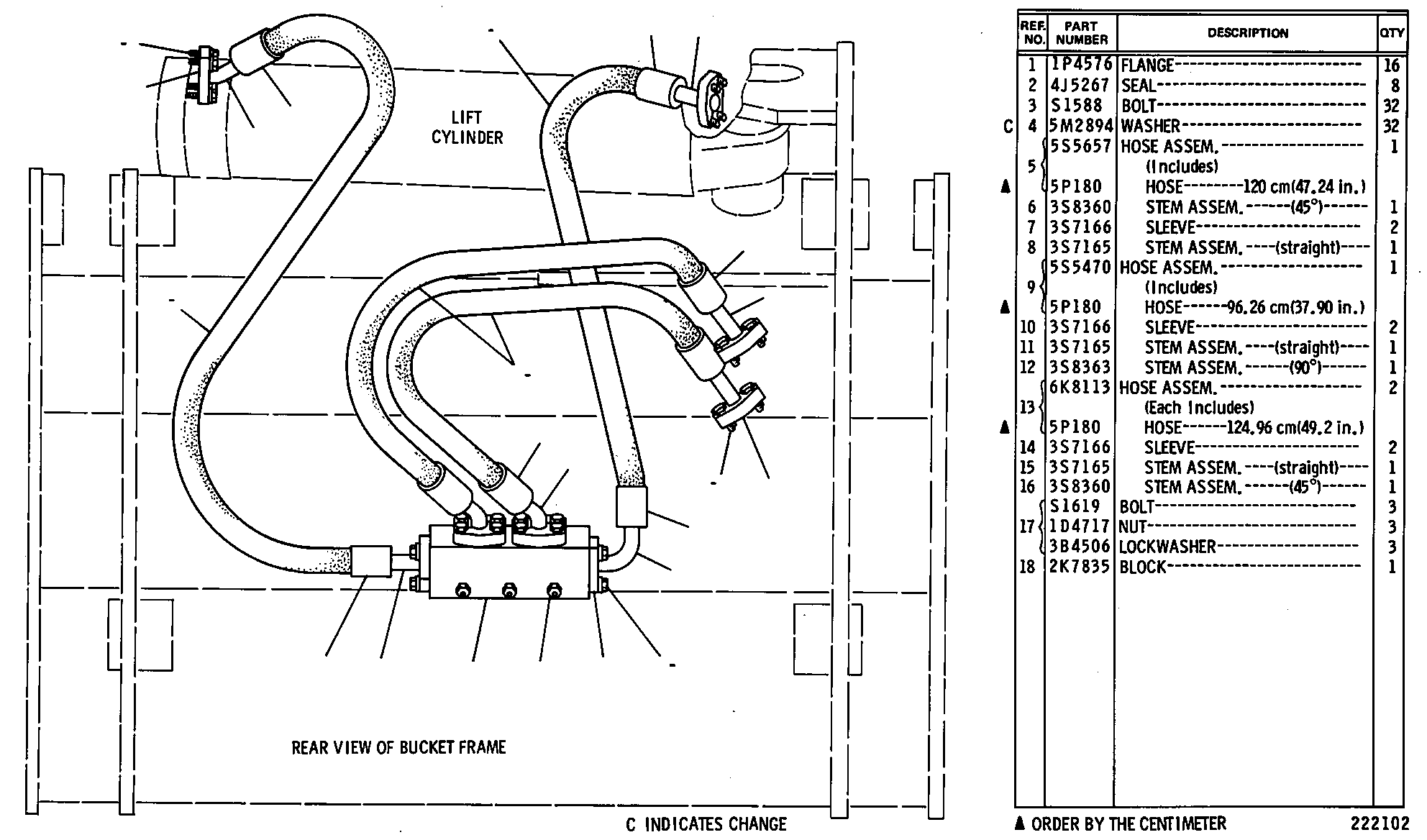

9K6492 FRONT HYDRAULIC LINES GROUPPart of 9K6491 Side Dump Bucket Arrangement listed on Page 244A

Group No: 9K6492
Part NumberPart NameQty
1P45761 FLANGE16
4J52672 SEAL8
0S15883 BOLT32
5M28944 WASHER32
5S56575 HOSE ASSEM.1
5P0180HOSE 120 cm(47.24 in.)NULL
3S83606 STEM ASSEM. (45 degrees)1
3S71667 SLEEVE2
3S71658 STEM ASSEM. (straight)1
5S54709 HOSE ASSEM.1
5P0180HOSE 96.26 cm(37.90 in.)NULL
3S716610 SLEEVE2
3S716511 STEM ASSEM. (straight)1
3S836312 STEM ASSEM. (90 degrees)1
6K811313 HOSE ASSEM.2
5P0180HOSE 124.96 cm(49.2 in.)NULL
3S716614 SLEEVE2
3S716515 STEM ASSEM. (straight)1
3S836016 STEM ASSEM. (45 degrees)1
0S161917 BOLT3
1D4717NUT3
3B4506LOCKWASHER3
2K783518 BLOCK1
