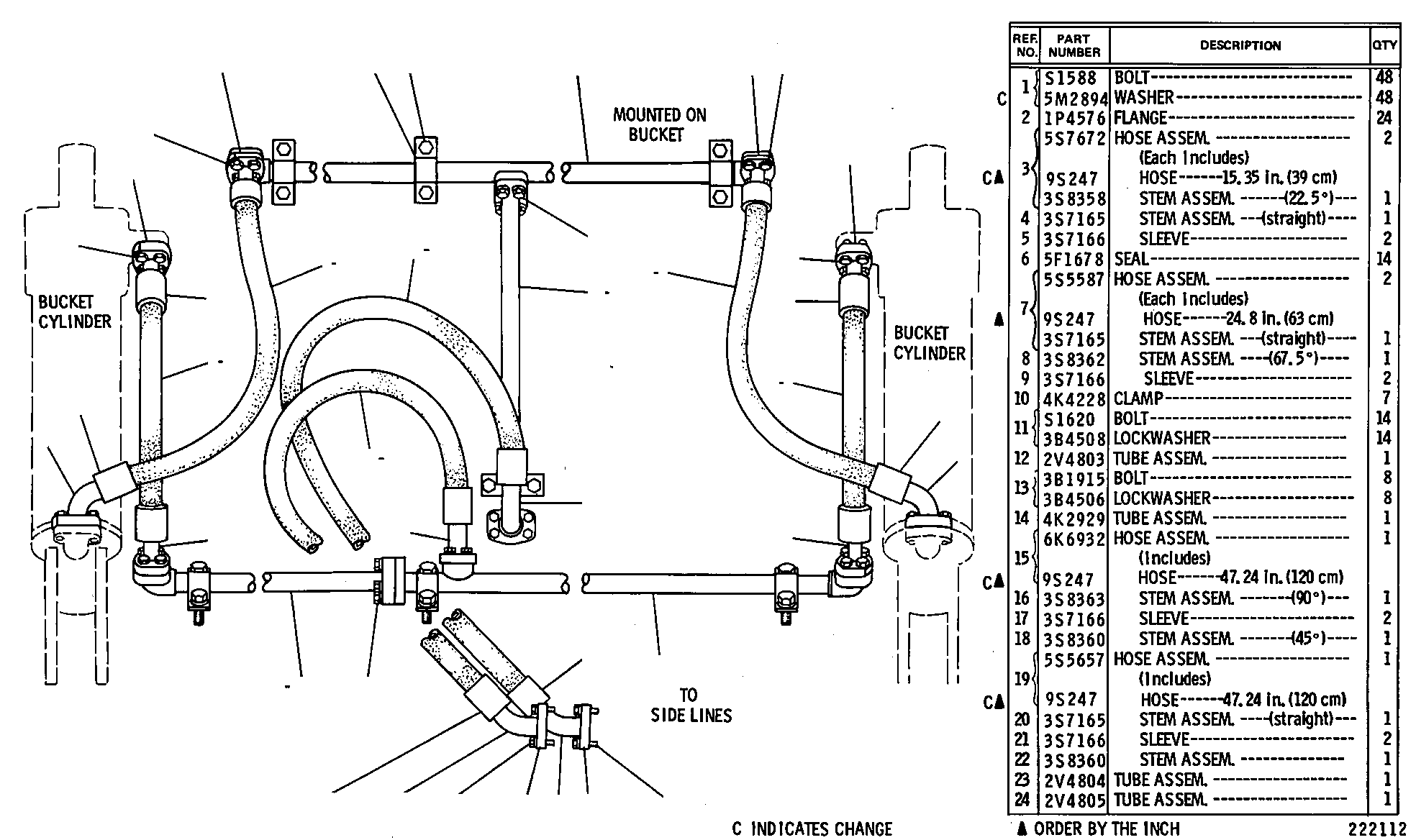

2V4910 MULTI-PURPOSE BUCKET LINES GROUPPart of 1V9785 Multi-Purpose Bucket Arrangement listed on Page 252A

Group No: 2V4910
Part NumberPart NameQty
0S15881 BOLT48
5M2894WASHER48
1P45762 FLANGE24
5S76723 HOSE ASSEM.2
9S0247HOSE 15.35 in.(39 cm)NULL
3S8358STEM ASSEM. (22.5 DEGREES)1
3S71654 STEM ASSEM. (straight)1
3S71665 SLEEVE2
5F16786 SEAL14
5S55877 HOSE ASSEM.2
9S0247HOSE 24.8 in.(63 cm)NULL
3S7165STEM ASSEM. (straight)1
3S83628 STEM ASSEM. (67.5 DEGREES)1
3S71669 SLEEVE2
4K422810 CLAMP7
0S162011 BOLT14
3B4508LOCKWASHER14
2V480312 TUBE ASSEM.1
3B191513 BOLT8
3B4506LOCKWASHER8
4K292914 TUBE ASSEM.1
6K693215 HOSE ASSEM.1
9S0247HOSE 47.24 in.(120 cm)NULL
3S836316 STEM ASSEM. (90 DEGREES)1
3S716617 SLEEVE2
3S836018 STEM ASSEM. (45 DEGREES)1
5S565719 HOSE ASSEM.1
9S0247HOSE 47.24 in.(120 cm)NULL
3S716520 STEM ASSEM. (straight)1
3S716621 SLEEVE2
3S836022 STEM ASSEM.1
2V480423 TUBE ASSEM.1
2V480524 TUBE ASSEM.1
