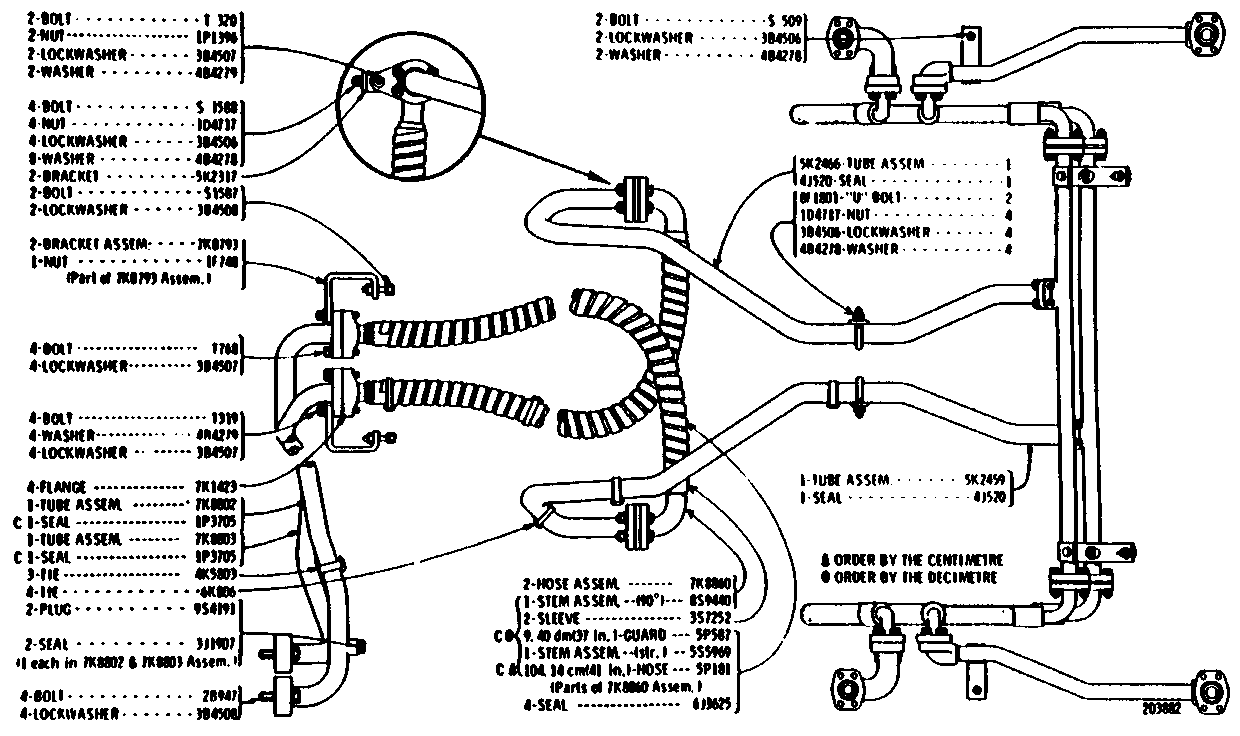

7K8837 TILT CYLINDER LINES GROUP--Top View--Part 1 of 2Serial No. 43J6268 to 43J7523 inclusive

Group No: 7K8837
Part NumberPart NameQty
0T0320BOLT2
1P1396NUT2
3B4507LOCKWASHER2
4B4279WASHER2
0S1588BOLT4
1D4717NUT4
3B4506LOCKWASHER4
4B4278WASHER8
5K2317BRACKET2
0S1587BOLT2
3B4508LOCKWASHER2
7K8793BRACKET ASSEM.2
1F0748NUT1
0T0768BOLT4
3B4507LOCKWASHER4
0T0319BOLT4
4B4279WASHER4
3B4507LOCKWASHER4
7K1423FLANGE4
7K8802TUBE ASSEM.1
1P3705SEAL1
7K8803TUBE ASSEM.1
1P3705SEAL1
4K5803TIE3
6K0806TIE4
9S4191PLUG2
3J1907SEAL2
2B0947BOLT4
3B4508LOCKWASHER4
0S0509BOLT2
3B4506LOCKWASHER2
4B4278WASHER2
7K8860HOSE ASSEM.2
8S9440STEM ASSEM. (90 degrees)1
3S7252SLEEVE2
5P0587GUARD 9.40 DM(37 IN.)NULL
5S5969STEM ASSEM. (str.)1
5P0181HOSE 104.14 CM(41 IN.)NULL
6J3625SEAL4
5K2466TUBE ASSEM.1
4J0520SEAL1
8F1801"U" BOLT2
1D4717NUT4
3B4506LOCKWASHER4
4B4278WASHER4
5K2459TUBE ASSEM.1
4J0520SEAL1
