System And Components

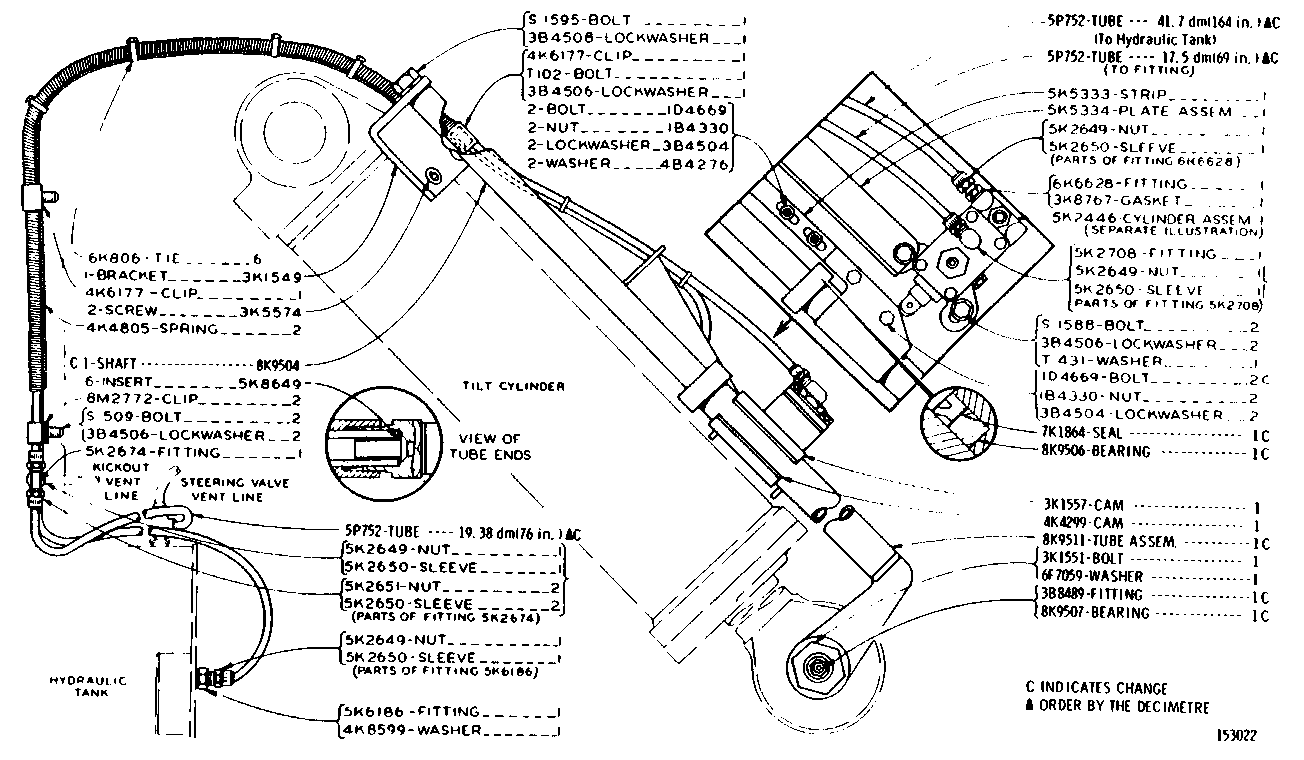

5K2614 BUCKET POSITIONER GROUP--As Viewed from Right Hand Side of MachineSerial No. 43J6268 to 43J7448 inclusive
Group No: 5K2614
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6K0806 | TIE | 6 | |
| 3K1549 | BRACKET | 1 | |
| 4K6177 | CLIP | 1 | |
| 3K5574 | SCREW | 2 | |
| 4K4805 | SPRING | 2 | |
| 8K9504 | SHAFT | 1 | |
| 5K8649 | INSERT | 6 | |
| 8M2772 | CLIP | 2 | |
| 0S0509 | BOLT | 2 | |
| 3B4506 | LOCKWASHER | 2 | |
| 5K2674 | FITTING | 1 | |
| 5P0752 | TUBE 19.38 dm(76 in.) | NULL | |
| 5K2649 | NUT | 1 | |
| 5K2650 | SLEEVE | 1 | |
| 5K2651 | NUT | 2 | |
| 5K2650 | SLEEVE | 2 | |
| 5K2649 | NUT | 1 | |
| 5K2650 | SLEEVE | 1 | |
| 5K6186 | FITTING | 1 | |
| 4K8599 | WASHER | 1 | |
| 5P0752 | TUBE 41.7 dm(164 in.) | NULL | |
| 5P0752 | TUBE 17.5 dm(69 in.) | NULL | |
| 5K5333 | STRIP | 1 | |
| 5K5334 | PLATE ASSEM | 1 | |
| 5K2649 | NUT | 1 | |
| 5K2650 | SLEEVE | 1 | |
| 6K6628 | FITTING | 1 | |
| 3K8767 | GASKET | 1 | |
| 5K2446 | CYLINDER ASSEM | 1 | |
| 5K2708 | FITTING | 1 | |
| 5K2649 | NUT | 1 | |
| 5K2650 | SLEEVE | 1 | |
| 0S1588 | BOLT | 2 | |
| 3B4506 | LOCKWASHER | 2 | |
| 0T0431 | WASHER | 1 | |
| 1D4669 | BOLT | 2 | |
| 1B4330 | NUT | 2 | |
| 3B4504 | LOCKWASHER | 2 | |
| 7K1864 | SEAL | 1 | |
| 8K9506 | BEARING | 1 | |
| 3K1557 | CAM | 1 | |
| 4K4299 | CAM | 1 | |
| 8K9511 | TUBE ASSEM. | 1 | |
| 3K1551 | BOLT | 1 | |
| 6F7059 | WASHER | 1 | |
| 3B8489 | FITTING | 1 | |
| 8K9507 | BEARING | 1 |
