System And Components

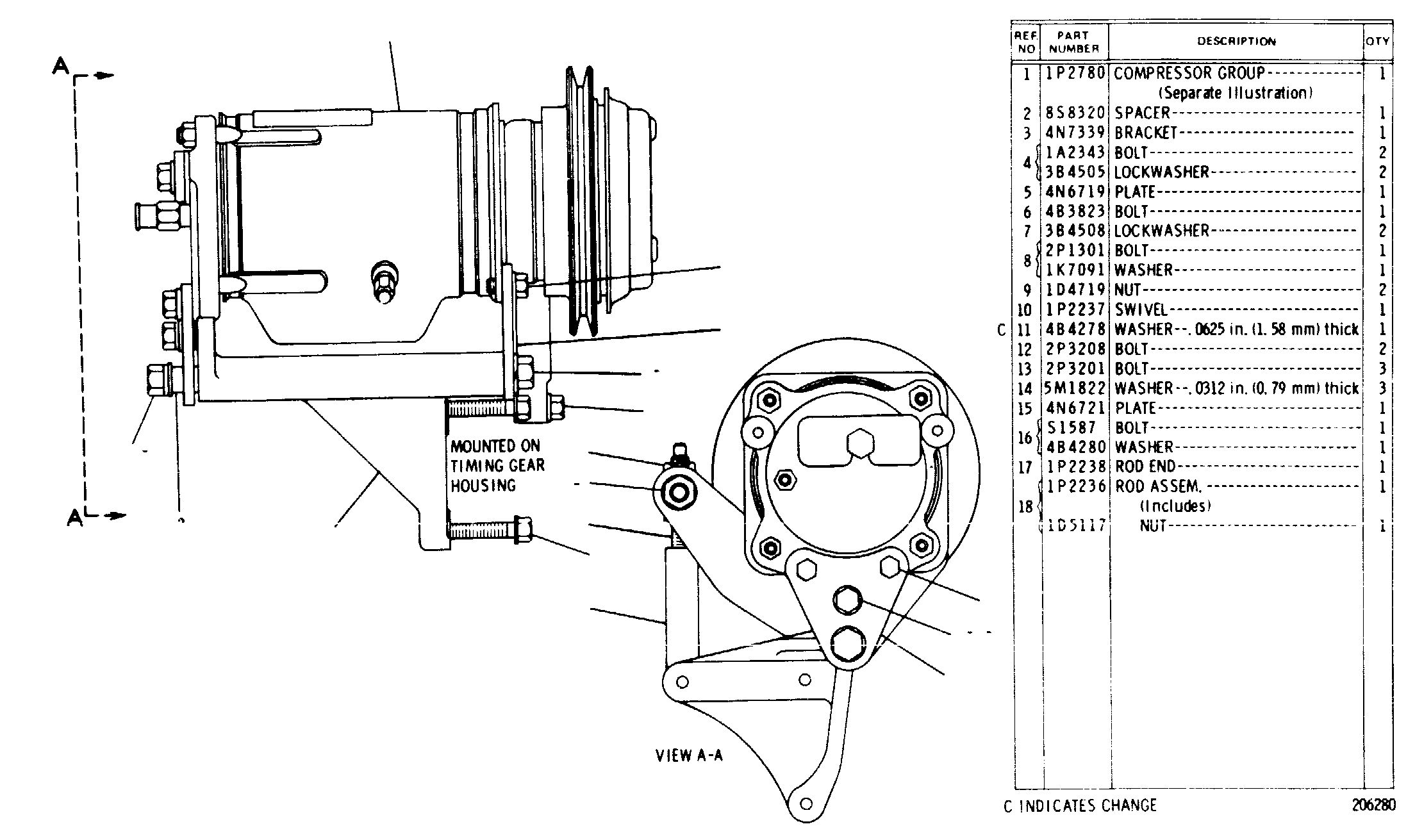

4N6718 REFRIGERANT COMPRESSOR GROUP--Type 1Part of 4N7405 Refrigerant Compressor Arrangement listed on Page 264A
Group No: 4N6718
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P2780 | 1 COMPRESSOR GROUP | 1 | |
| 8S8320 | 2 SPACER | 1 | |
| 4N7339 | 3 BRACKET | 1 | |
| 1A2343 | 4 BOLT | 2 | |
| 3B4505 | LOCKWASHER | 2 | |
| 4N6719 | 5 PLATE | 1 | |
| 4B3823 | 6 BOLT | 1 | |
| 3B4508 | 7 LOCKWASHER | 2 | |
| 2P1301 | 8 BOLT | 1 | |
| 1K7091 | WASHER | 1 | |
| 1D4719 | 9 NUT | 2 | |
| 1P2237 | 10 SWIVEL | 1 | |
| 4B4278 | 11 WASHER .0625 in. (1.58 mm) thick | 1 | |
| 2P3208 | 12 BOLT | 2 | |
| 2P3201 | 13 BOLT | 3 | |
| 5M1822 | 14 WASHER .0312 in. (0.79 mm) thick | 3 | |
| 4N6721 | 15 PLATE | 1 | |
| 0S1587 | 16 BOLT | 1 | |
| 4B4280 | WASHER | 1 | |
| 1P2238 | 17 ROD END | 1 | |
| 1P2236 | 18 ROD ASSEM. | 1 | |
| 1D5117 | NUT | 1 |
