System And Components

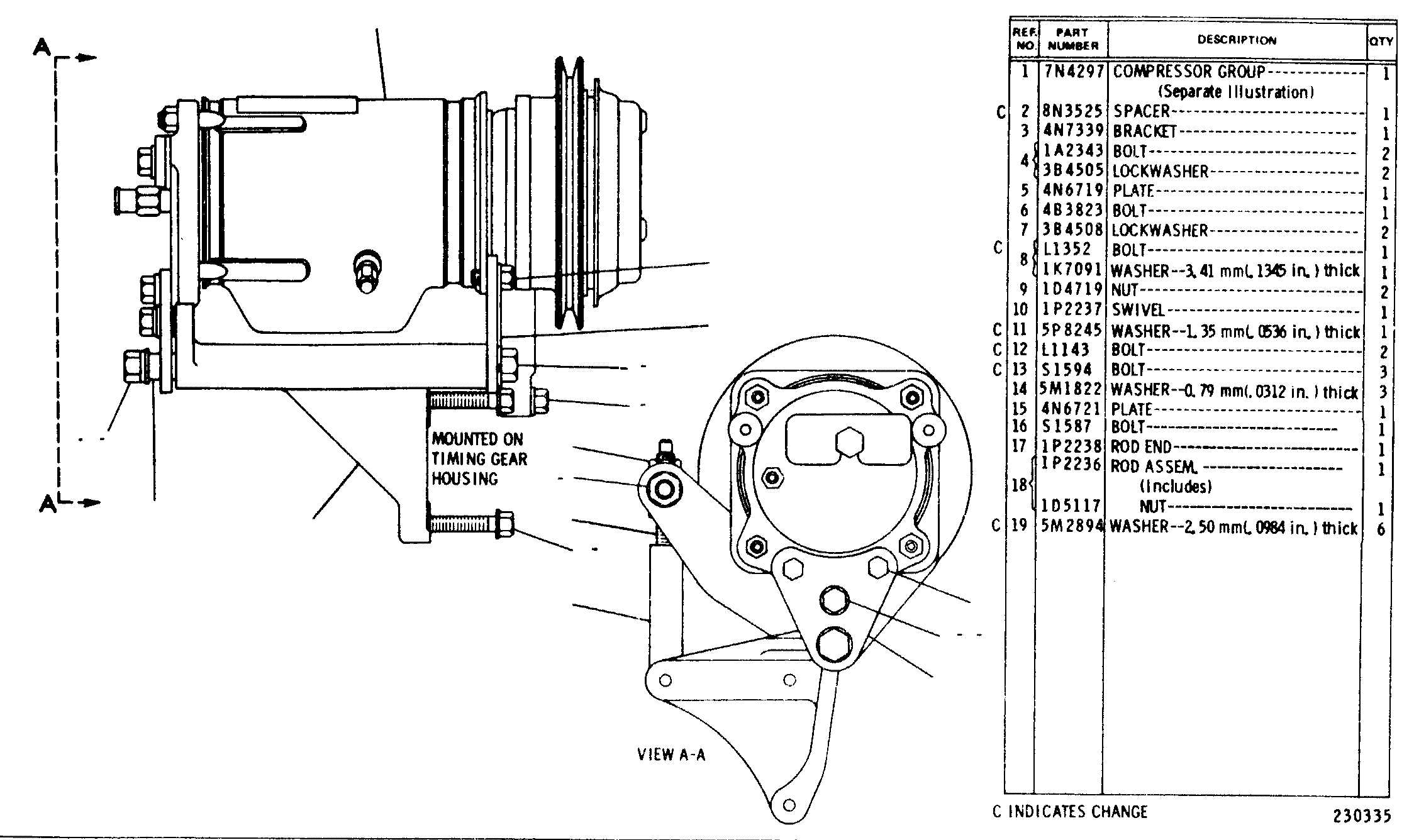

4N6718 REFRIGERANT COMPRESSOR GROUP--Type 2Part of 4N7405 Refrigerant Compressor Arrangement listed on Page 264A
Group No: 4N6718
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N4297 | 1 COMPRESSOR GROUP | 1 | |
| 8N3525 | 2 SPACER | 1 | |
| 4N7339 | 3 BRACKET | 1 | |
| 1A2343 | 4 BOLT | 2 | |
| 3B4505 | LOCKWASHER | 2 | |
| 4N6719 | 5 PLATE | 1 | |
| 4B3823 | 6 BOLT | 1 | |
| 3B4508 | 7 LOCKWASHER | 2 | |
| 0L1352 | 8 BOLT | 1 | |
| 1K7091 | WASHER 3.41 mm(.1345 in.) thick | 1 | |
| 1D4719 | 9 NUT | 2 | |
| 1P2237 | 10 SWIVEL | 1 | |
| 5P8245 | 11 WASHER 1.35 mm (.0536 in.) thick | 1 | |
| 0L1143 | 12 BOLT | 2 | |
| 0S1594 | 13 BOLT | 3 | |
| 5M1822 | 14 WASHER 0.79 mm(.0312 in.) thick | 3 | |
| 4N6721 | 15 PLATE | 1 | |
| 0S1587 | 16 BOLT | 1 | |
| 1P2238 | 17 ROD END | 1 | |
| 1P2236 | 18 ROD ASSEM. | 1 | |
| 1D5117 | NUT | 1 | |
| 5M2894 | 19 WASHER 2.50 mm(.0984 in.) thick | 6 |
