System And Components

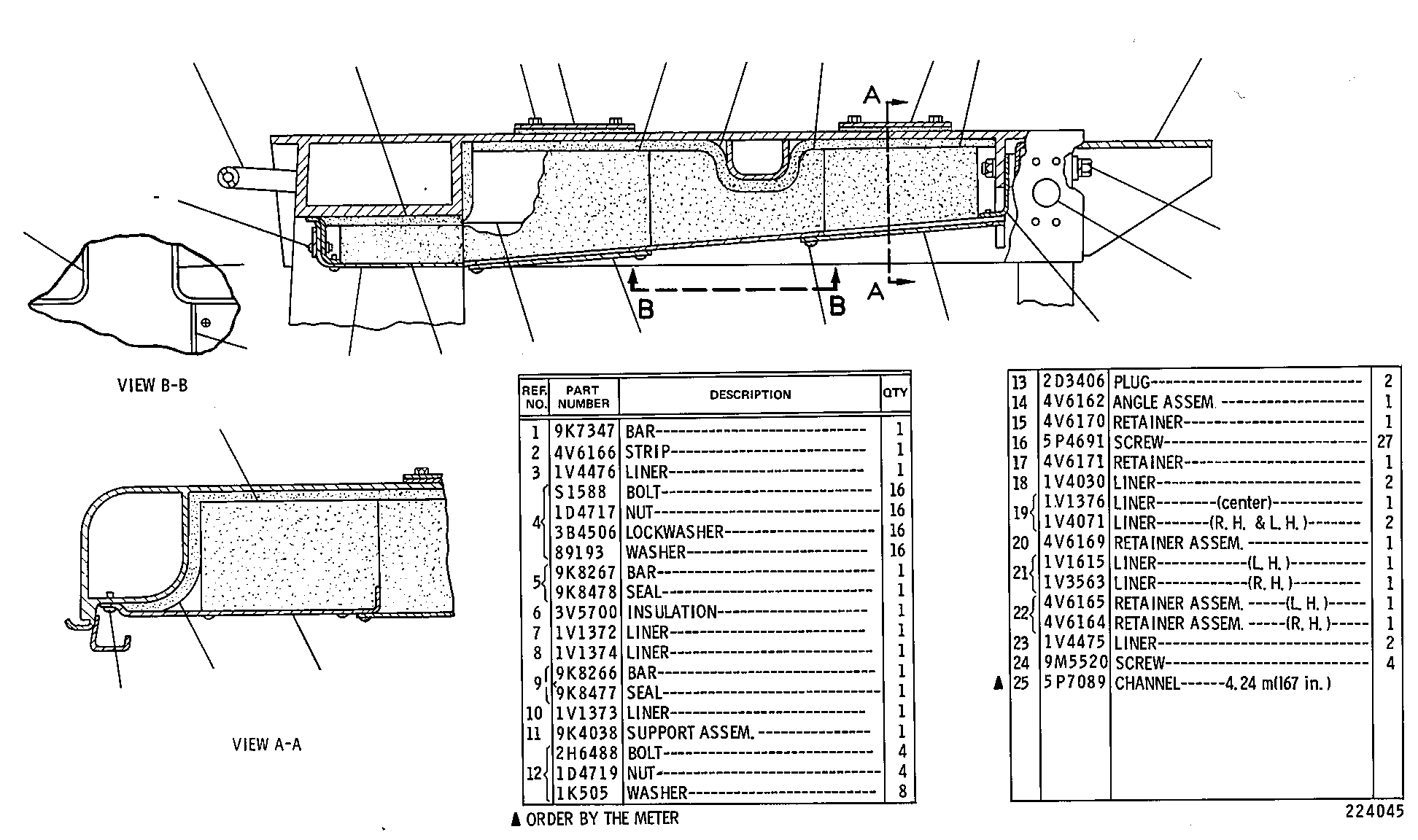

4V6211 ROLL-OVER PROTECTIVE STRUCTURE GROUPPart of 5C9676 Open ROPS Arrangement. AN ATTACHMENT
Group No: 4V6211
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9K7347 | 1 BAR | 1 | |
| 4V6166 | 2 STRIP | 1 | |
| 1V4476 | 3 LINER | 1 | |
| 0S1588 | 4 BOLT | 16 | |
| 1D4717 | NUT | 16 | |
| 3B4506 | LOCKWASHER | 16 | |
| 0089193 | WASHER | 16 | |
| 9K8267 | 5 BAR | 1 | |
| 9K8478 | SEAL | 1 | |
| 3V5700 | 6 INSULATION | 1 | |
| 1V1372 | 7 LINER | 1 | |
| 1V1374 | 8 LINER | 1 | |
| 9K8266 | 9 BAR | 1 | |
| 9K8477 | SEAL | 1 | |
| 1V1373 | 10 LINER | 1 | |
| 9K4038 | 11 SUPPORT ASSEM. | 1 | |
| 2H6488 | 12 BOLT | 4 | |
| 1D4719 | NUT | 4 | |
| 1K0505 | WASHER | 8 | |
| 2D3406 | 13 PLUG | 2 | |
| 4V6162 | 14 ANGLE ASSEM | 1 | |
| 4V6170 | 15 RETAINER | 1 | |
| 5P4691 | 16 SCREW | 27 | |
| 4V6171 | 17 RETAINER | 1 | |
| 1V4030 | 18 LINER | 2 | |
| 1V1376 | 19 LINER (center) | 1 | |
| 1V4071 | LINER (R.H. & L.H.) | 2 | |
| 4V6169 | 20 RETAINER ASSEM. | 1 | |
| 1V1615 | 21 LINER (L.H.) | 1 | |
| 1V3563 | LINER (R.H.) | 1 | |
| 4V6165 | 22 RETAINER ASSEM. (L.H.) | 1 | |
| 4V6164 | RETAINER ASSEM. (R.H.) | 1 | |
| 1V4475 | 23 LINER | 2 | |
| 9M5520 | 24 SCREW | 4 | |
| 5P7089 | 25 CHANNEL 4.24 m(167 in.) | NULL |
