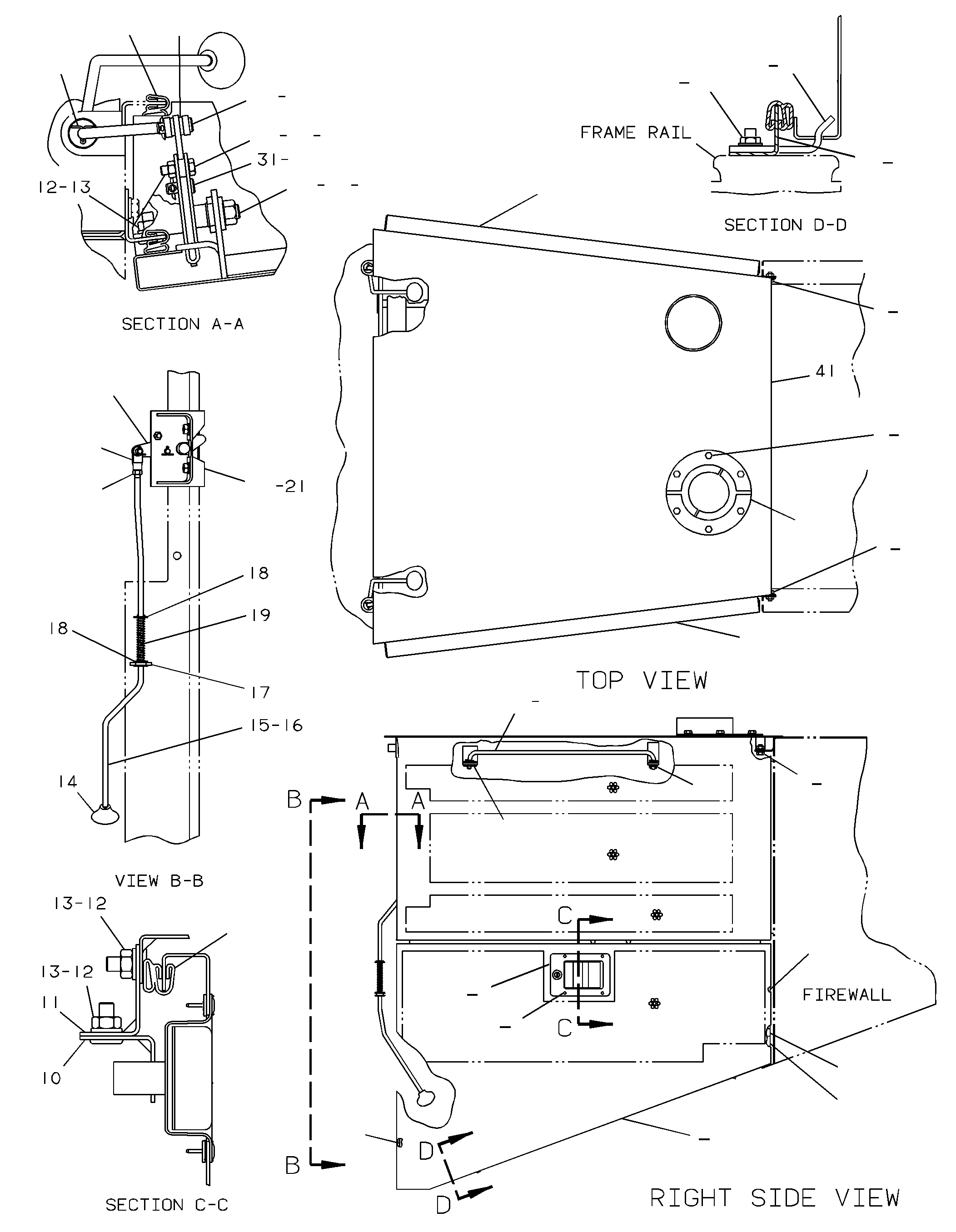

4E-2527 HOOD & GUARD GPS/N 6YG1-99999

Group No: 4E-2527
Part NumberPart NameQty
4E25371 DOOR AS1
9X22992 LATCH AS1
6V23703 RIVET-POP4
4E25404 DOOR AS1
9X22995 LATCH AS1
6V23706 RIVET-POP4
8T41377 BOLT (M10X1.5X20-MM)21
4E25518 ANGLE (LH)2
4E25509 ANGLE (RH)2
8R868610 PLATE AS-STRIKER2
8T5413STUD-WELD (M10X1.5X25-MM)2
8R868811 PLATE2
8T412112 WASHER-HARD (11X21X2.5-MM THK)41
8T413313 NUT (M10X1.5-THD)12
0L117014 HANDLE-LEVER2
8R868515 ROD1
8R868416 ROD1
8P854017 GROMMET2
2V916618 WASHER (0.391X1X0.06-IN THK)4
2P934719 SPRING2
9V035320 BRACKET AS (LH)1
9V035021 BRACKET AS (RH)1
6V818322 NUT-FULL (3/8-24-THD)2
1M134123 END-YOKE ROD2
9V035424 LATCH2
3B461525 PIN-COTTER6
7X060826 WASHER-HARD (10.2X16X2-MM THK)4
1B067627 PIN2
4L645428 BOLT (3/8-16X1-IN)2
5B048629 SPACER (10.5X16X6.5-MM THK)2
6V880130 NUT (3/8-16-THD)8
3B206231 PIN2
9V034432 PIN (LATCH STRIKER)2
5P107633 WASHER-HARD (13.5X30X4-MM THK)2
6V818834 NUT (1/2-13-THD)2
5P748335 SEAL
4H255836 GROMMET2
9V595437 ROD AS2
1A4784WASHER (10.3X22.2X2.5-MM THK)2
4M747038 GROMMET2
3B461139 PIN-COTTER2
4E253540 DOOR AS1
4E1073HINGE1
4E1074PIN1
8T5413STUD-WELD (M10X1.5X25-MM)2
0685963SCREW-DRIVE (NO 14X0.5-IN)2
4E254241 HOOD AS1
8T3490NUT-WELD (M10X1.5-THD)9
4E254942 BAFFLE2
4E254843 COVER2
4E252844 DOOR AS1
4E1073HINGE1
4E1074PIN1
8T5413STUD-WELD (M10X1.5X25-MM)2
0685963SCREW-DRIVE (NO 14X0.5-IN)2
4E487345 ANGLE (RH)1
4E487446 ANGLE (LH)1
