System And Components

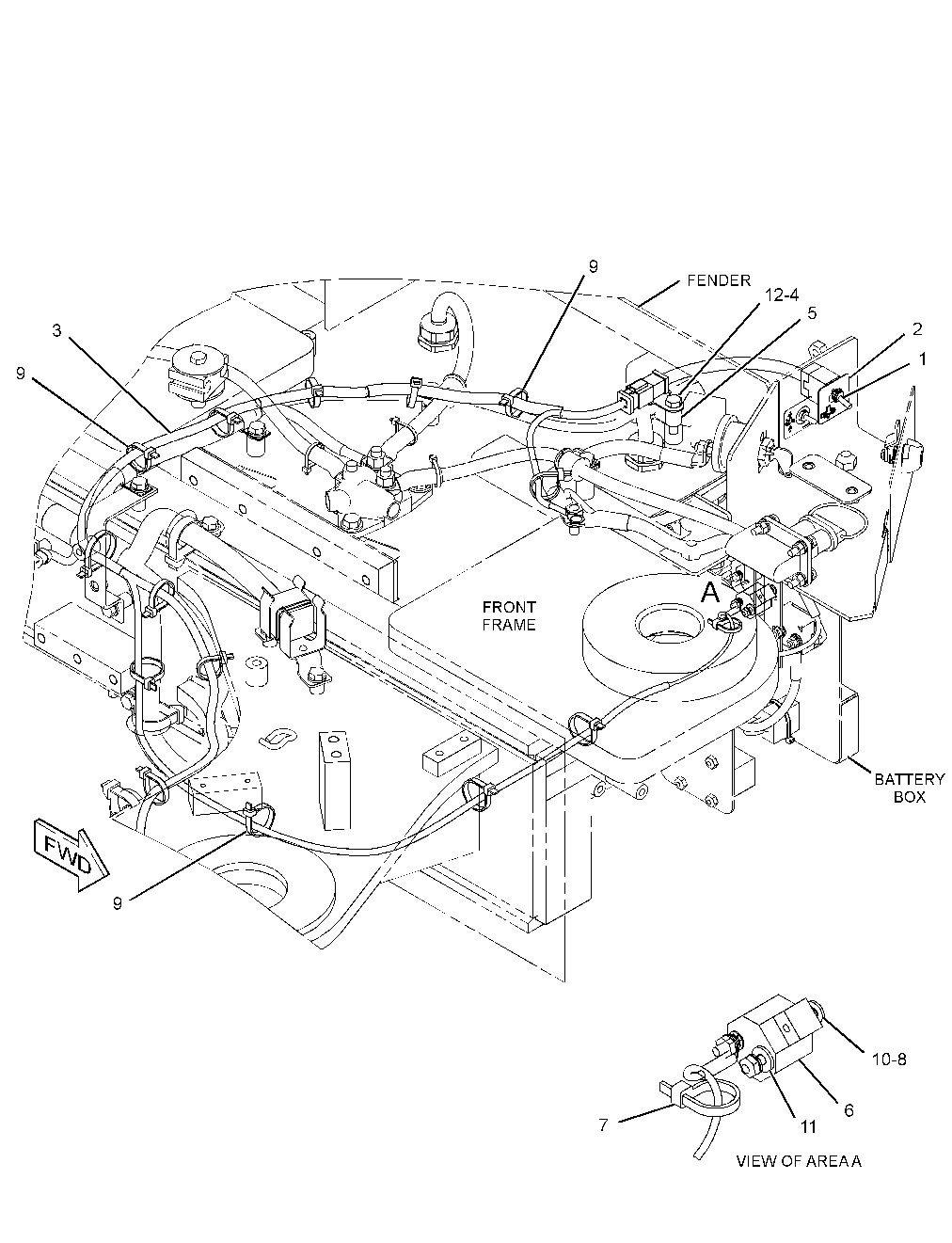

349-3986 WIRING GP-WASTE HANDLERS/N A6D2451-UP
Group No: 349-3986
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1571364 | 1 SWITCH AS-TOGGLE (POWER GUARD ACTUATOR) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 2496463 | 2 FILM-IDENTIFICATION (POWER GUARD ACTUATOR SWITCH) | 1 | |
| 3493985 | 3 HARNESS AS-CONTROL (POWER GUARD ACTUATOR) | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(12-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 2L8081 | TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 2 | |
| 1305300 | 4 CLIP | 1 | |
| 1W3189 | 5 SPACER (10X18X20-MM THK) | 1 | |
| 2483288 | 6 CIRCUIT BREAKER GP (15-AMPERE)(POWER GUARD ACTUATOR) | 1 | |
| 3S2093 | 7 STRAP-CABLE | 1 | |
| 4B4863 | 8 WASHER (4.7X11X1.2-MM THK) | 2 | |
| 7K1181 | 9 STRAP-CABLE | 15 | |
| 7U4892 | 10 SCREW (8-32X0.75-IN) | 2 | |
| 7X0620 | 11 WASHER-HARD (5.5X13X1.6-MM THK) | 1 | |
| 8T4186 | 12 BOLT (M10X1.5X40-MM) | 1 |
