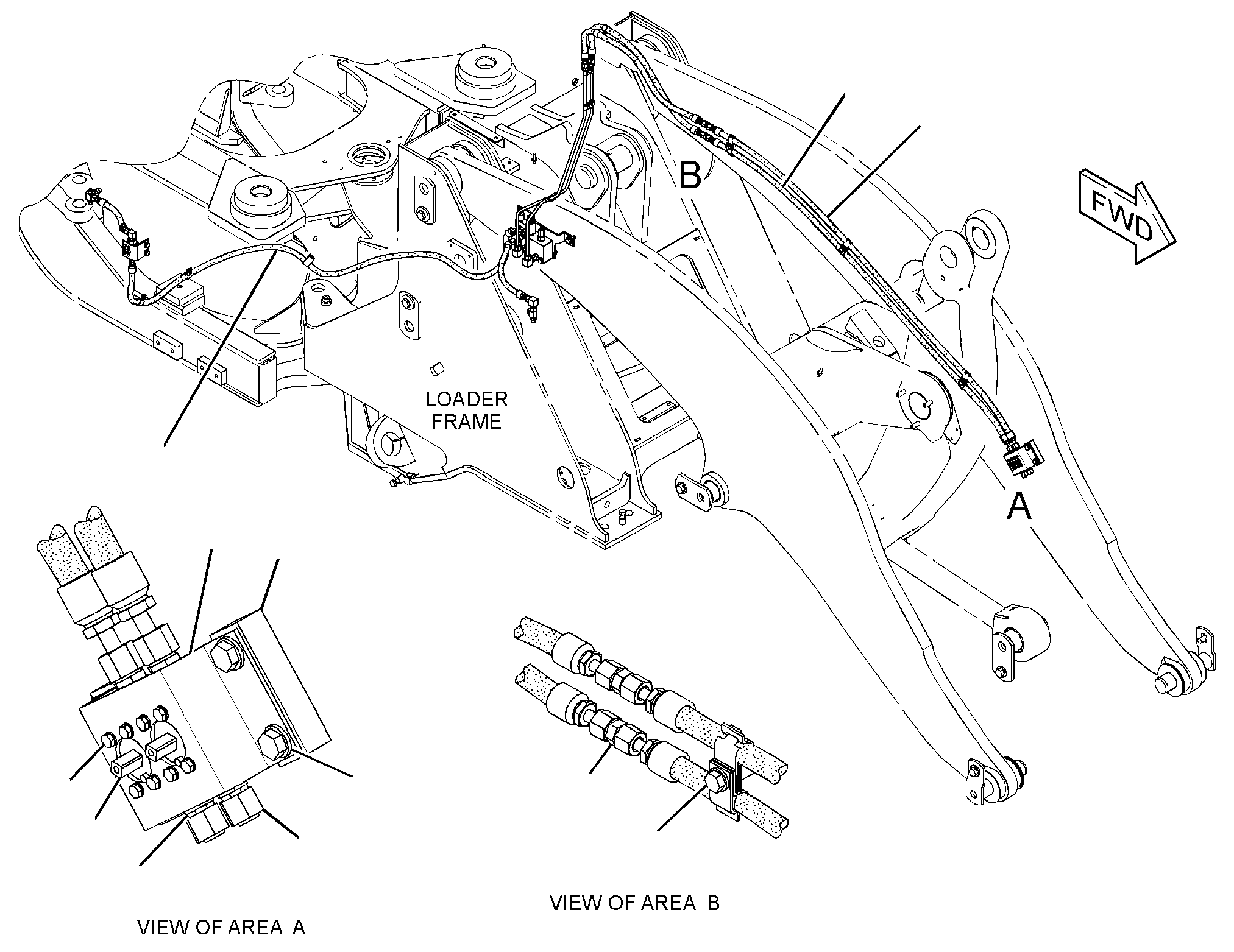

Assembly
100%

315-6316 LINES GP-COUPLER -KIT, HIGH LIFT MACHINESS/N K6K1-UP

Group No: 315-6316
Part NumberPart NameQty
23070581 BRACKET1
27561014 LINES GP-COUPLER (REAR)1
31563285 HOSE AS2
09661666 WASHER-HARD (4.5X9X1-MM THK)8
11218177 VALVE-BALL2
3J19079 SEAL-O-RING4
6V839710 SEAL-O-RING8
6V863611 CONNECTOR4
6V873012 UNION (FACE SEAL)2
6V982913 CAP (ORFS)2
8T028514 SCREW-MACHINE (M4X0.7X12-MM)8
8T188715 CLIP (SLOT)6
8T188816 CLIP (TAB)6
8T412117 WASHER-HARD (11X21X2.5-MM THK)7
8T413718 BOLT (M10X1.5X20-MM)4
8T419519 BOLT (M10X1.5X30-MM)3
9C493520 PLATE2
9R261321 BOSS-WELD (M10X1.5X25-MM)3
2525925SWITCH GP-QUICK COUPLER1
2714026WIRING GP-QUICK COUPLER1
