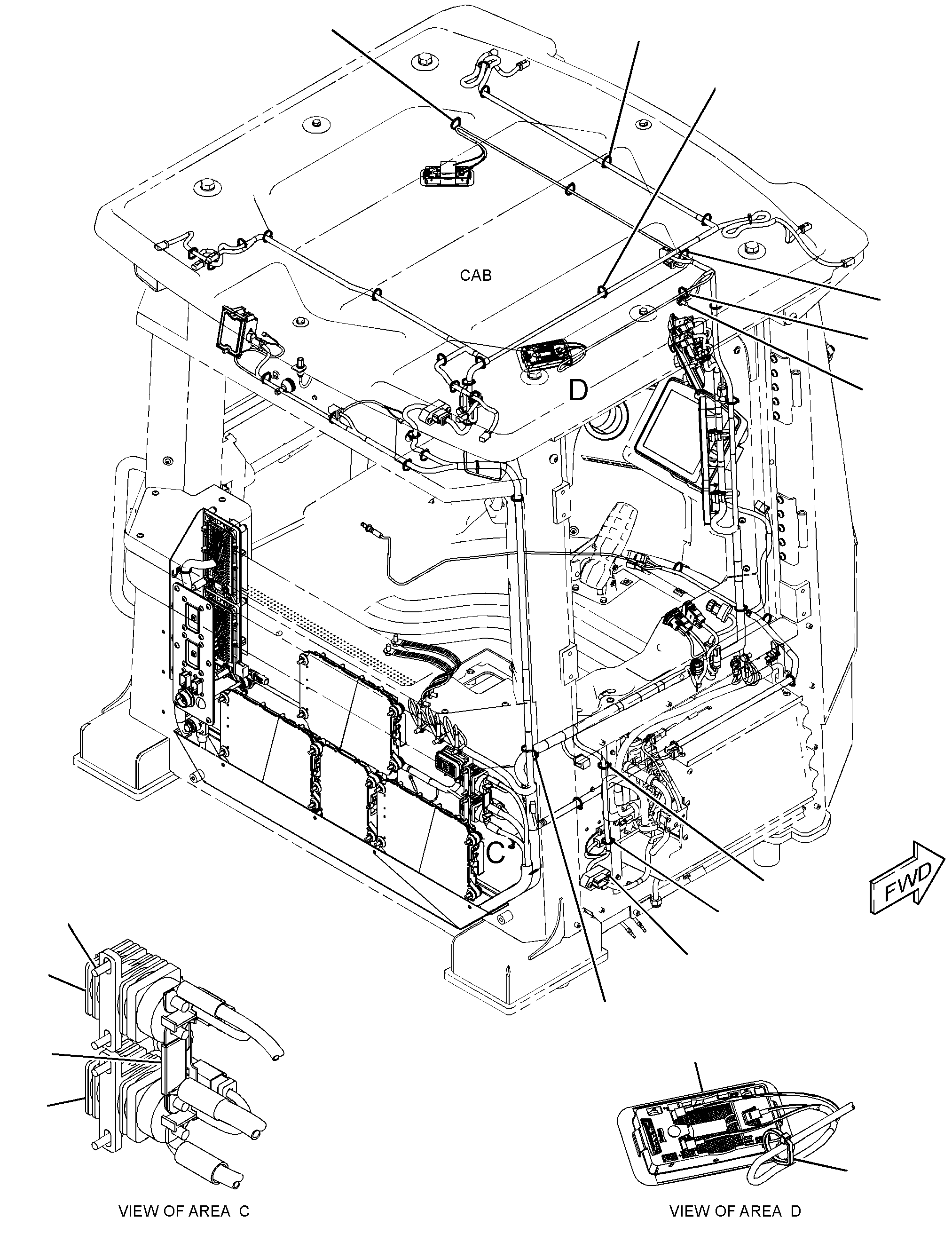

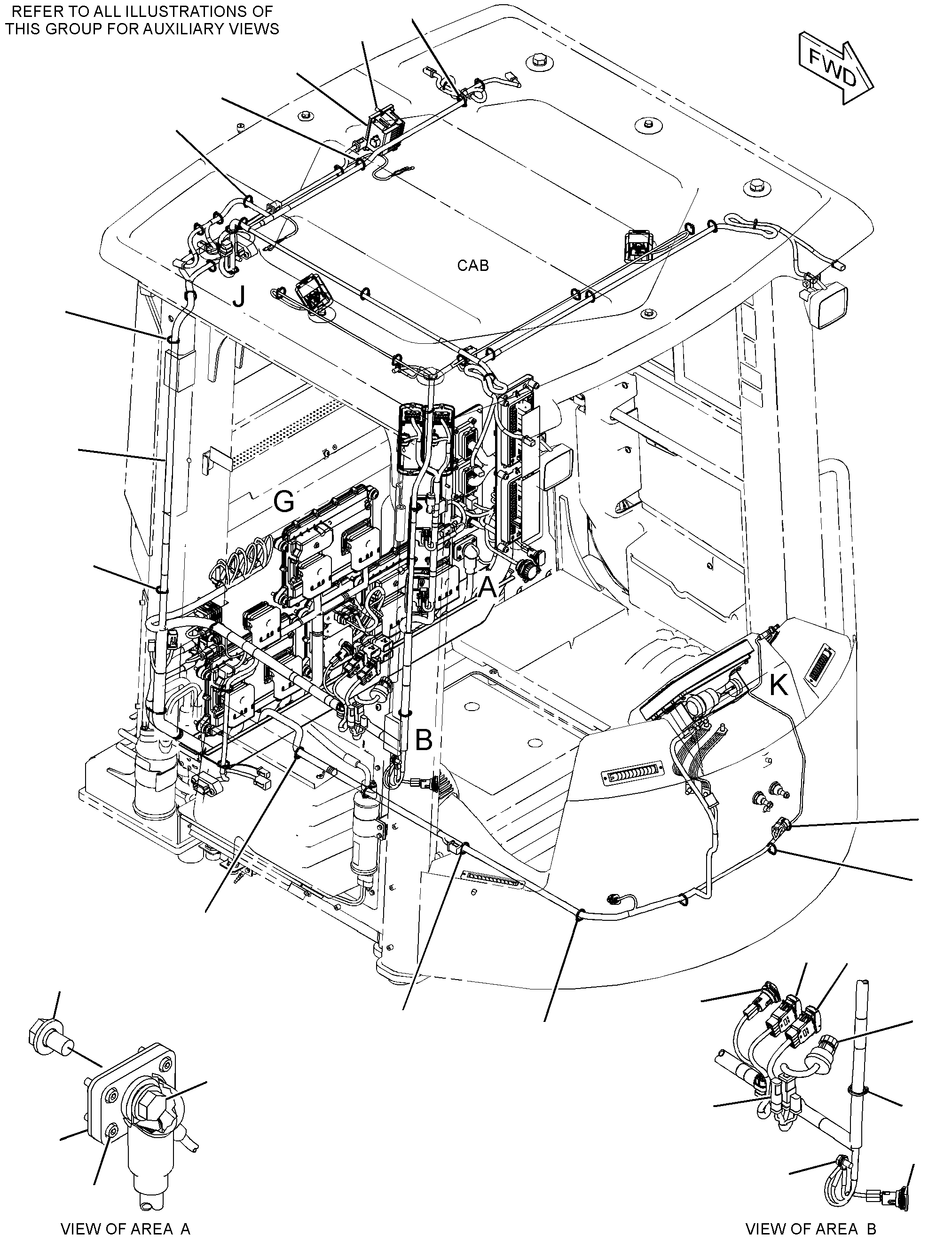

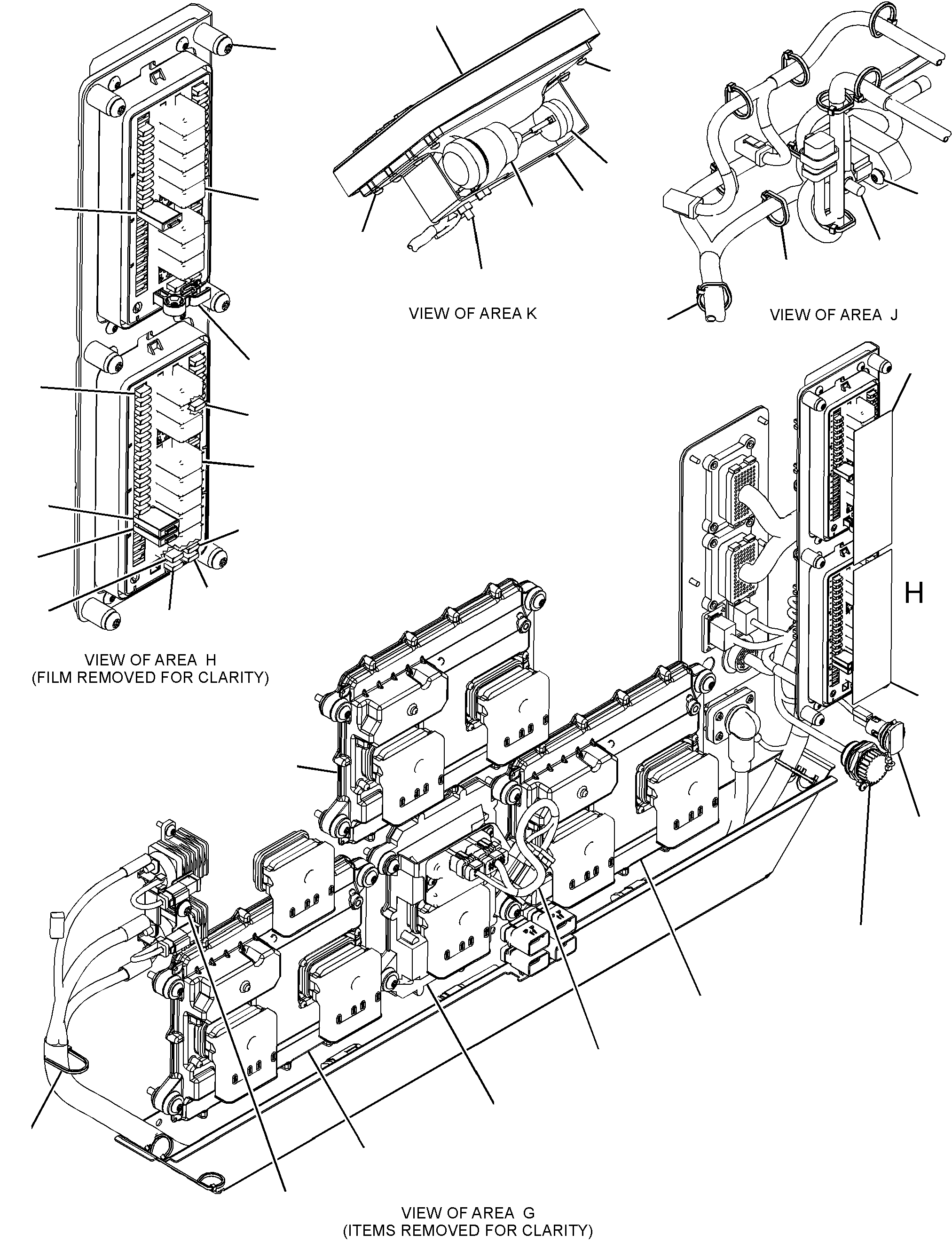

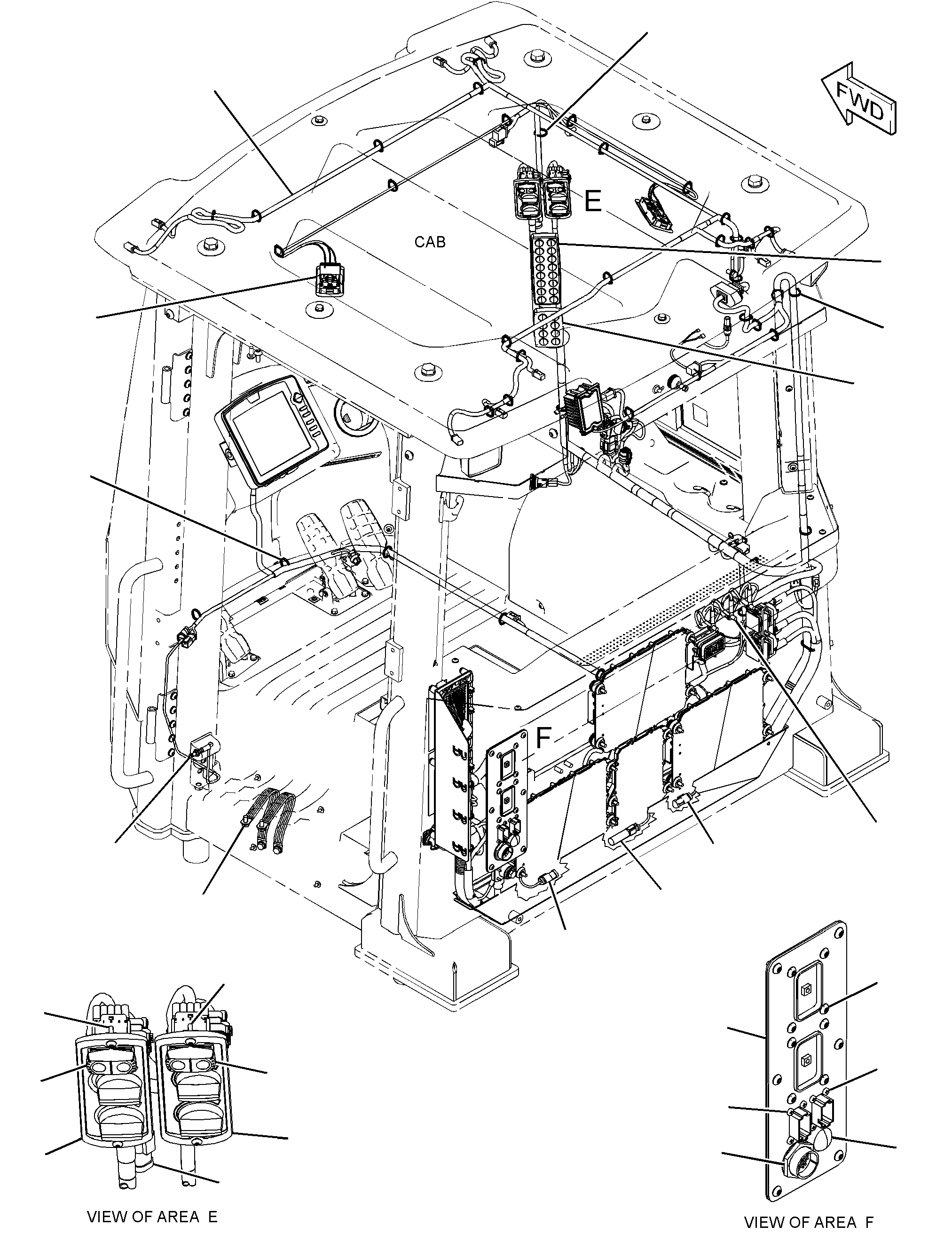

346-1054 WIRING GP-CABS/N Z4W1-429

Group No: 346-1054
Part NumberPart NameQty
13218291 ALARM GP (24-VOLT)1
6I14182 SPACER (8.2X12.7X28.7-MM THK)15
7K11813 STRAP-CABLE47
8T96554 MOUNT-ISOLATION30
8X96185 STRAP AS-GROUND2
10580346 SWITCH AS-LIMIT (DOOR, LH)1
10760327 LAMP AS-DOME (24-VOLT)2
2591286LAMP (24-VOLT, 10-WATT)1
11384908 FUSE (10-AMPERE)23
11384919 FUSE (15-AMPERE)19
113849210 FUSE (20-AMPERE)2
123969411 HORN1
128424912 LOCKWASHER1
141275913 FUSE (5-AMPERE)2
167780114 RESISTOR AS (390-OHM, 2-WATT)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
180990015 CAP AS2
5P7958SLEEVE-CABLE SPLICE1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
1799392LANYARD1
187867516 GASKET1
203900717 NUT (1-1/2-18-THD)2
211005218 NUT (1-11/16-18-THD)1
228498219 RESISTOR AS1
1028802KIT-RECEPTACLE (2-PIN)1
6T3610RESISTOR1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
241836820 SWITCH GP-MAGNETIC (24-VOLT)2
242155521 PULLER-FUSE1
248284122 RELAY AS (24-VOLT)17
255275223 SWITCH GP-START (IGNITION)1
270267924 LOCKWASHER2
272723925 BLOCK AS1
280270926 CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)2
280271027 CIRCUIT BREAKER AS (20-AMPERE, MANUAL RESET)1
284362328 SWITCH AS-ROCKER (24-VOLT)(HYDRAULIC LOCKOUT)1
284366529 SWITCH AS-ROCKER (24-VOLT)(AIR CONDITIONER, HEATER CONT)1
288815530 PANEL AS (AIR CONDITIONER, HEATER CONT)1
2717312KNOB2
288855431 PANEL AS (WINDOW WIPER CONTROLS)1
2717312KNOB2
290296832 HARNESS AS-LIGHTING1
9X1813SLEEVE (90-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(20-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)38
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)38
1311500TERMINAL AS-RING1
2L8071TERMINAL-RING (10-GA TO 12-GA, 1/2-IN SCREW)1
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(4-CM)
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)9
2312295PLUG AS-CONNECTOR (8-PIN)1
2647033SEAL-CONNECTOR1
2743774CAP-CONNECTOR5
2743784CAP-SEAL1
290970433 SWITCH AS-ROCKER (WINDOW WIPER CONTROLS)1
292301234 MODULE GP-MONITOR KEYPAD (8-BUTTON)1
8F1326WASHER (4.2X9.5X0.8-MM THK)2
8T2659LOCKNUT (M4X0.7-THD)2
292301335 MODULE GP-MONITOR KEYPAD (16-BUTTON)1
8F1326WASHER (4.2X9.5X0.8-MM THK)4
8T2659LOCKNUT (M4X0.7-THD)4
299574436 MODULE GP-RELAY DRIVER1
7X6315STRAP AS-GROUND1
1344126WASHER (4.52X8.28X0.76-MM THK)1
1842472SCREW-PAN HEAD (8-32X0.375-IN)1
304568737 CONTROL GP-UNPROGRAMMED2
304569138 CONTROL GP-UNPROGRAMMED1
352169539 DISPLAY GP-CAMERA1
329308640 MODULE GP-DISPLAY1
2764053FILM-IDENTIFICATION (CAT)1
329679141 SWITCH AS-ROCKER (PARKING BRAKE)1
335536542 SOCKET-AUXILIARY POWER (12-VOLT)3
340716143 CONVERTER-POWER (24-VOLT TO 12-VOLT)1
344745144 FILM-IDENTIFICATION (FUSE PANEL, UPPER)1
344745245 FILM-IDENTIFICATION (FUSE PANEL, LOWER)1
346105546 WIRING GP-CAB1
346105947 BRACKET AS1
346106048 BRACKET AS1
346106349 PLATE1
346106450 GASKET1
346106851 BAR-BUS1
354557752 FLASHER AS (12/24-VOLT)1
096483353 BOLT-SOCKET HEAD (M5X0.8X20-MM)4
127217054 SCREW-TRUSS HEAD (M8X1.25X20-MM)1
130530055 CLIP3
134254056 RECEPTACLE AS-CONNECTOR (3-PIN)3
138845457 SCREW-TRUSS HEAD (M4X0.7X10-MM)2
174813158 SCREW-TRUSS HEAD (M4X0.7X12-MM)3
203539859 INSERT-THREADED (M5X0.8-THD)2
271940860 SCREW-TRUSS HEAD (M5X0.8X10-MM)8
274740961 SCREW-TRUSS HEAD (M8X1.25X45-MM)15
6V268762 SCREW-PAN HEAD (10-24X1-IN)8
8T032863 WASHER-HARD (5.5X10X1-MM THK)4
8T412164 WASHER-HARD (11X21X2.5-MM THK)10
8T413765 BOLT (M10X1.5X20-MM)10
8T417966 BOLT (M12X1.75X20-MM)2
8T422367 WASHER-HARD (13.5X25.5X3-MM THK)2
191227668 SCREW-TRUSS HEAD (M5X0.8X20-MM)2
9N086969 WASHER-HARD (8.8X25.5X2-MM THK)18
9X104670 SCREW (M4X0.7X18-MM)4
9X204171 SCREW-TRUSS HEAD (M10X1.5X20-MM)1
9X204472 SCREW-TRUSS HEAD (M6X1X16-MM)24
9X204573 SCREW-TRUSS HEAD (M6X1X20-MM)4
8T490874 BOLT (M8X1.25X25-MM)3
6V398775 SEAL (0.07-M EACH)
