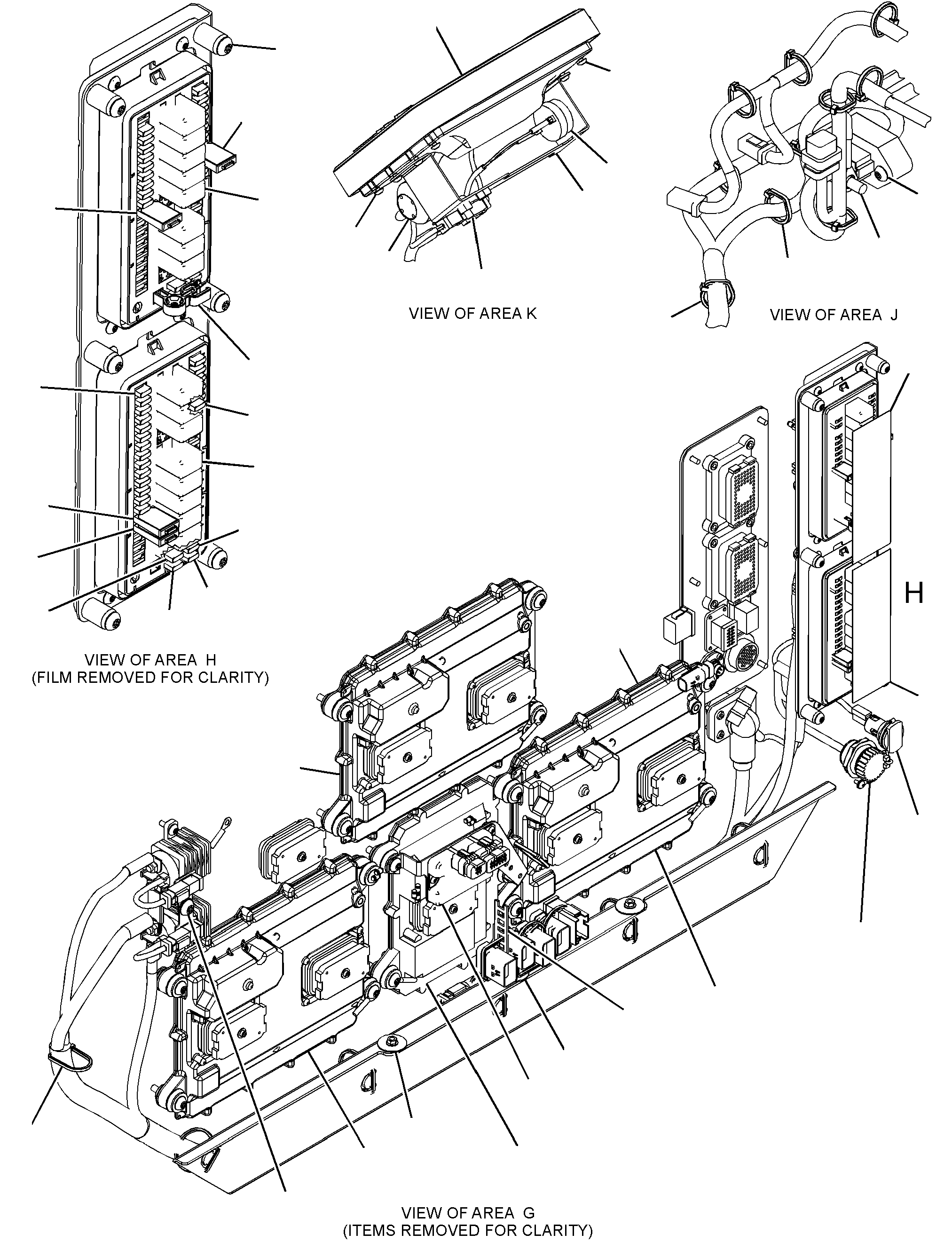

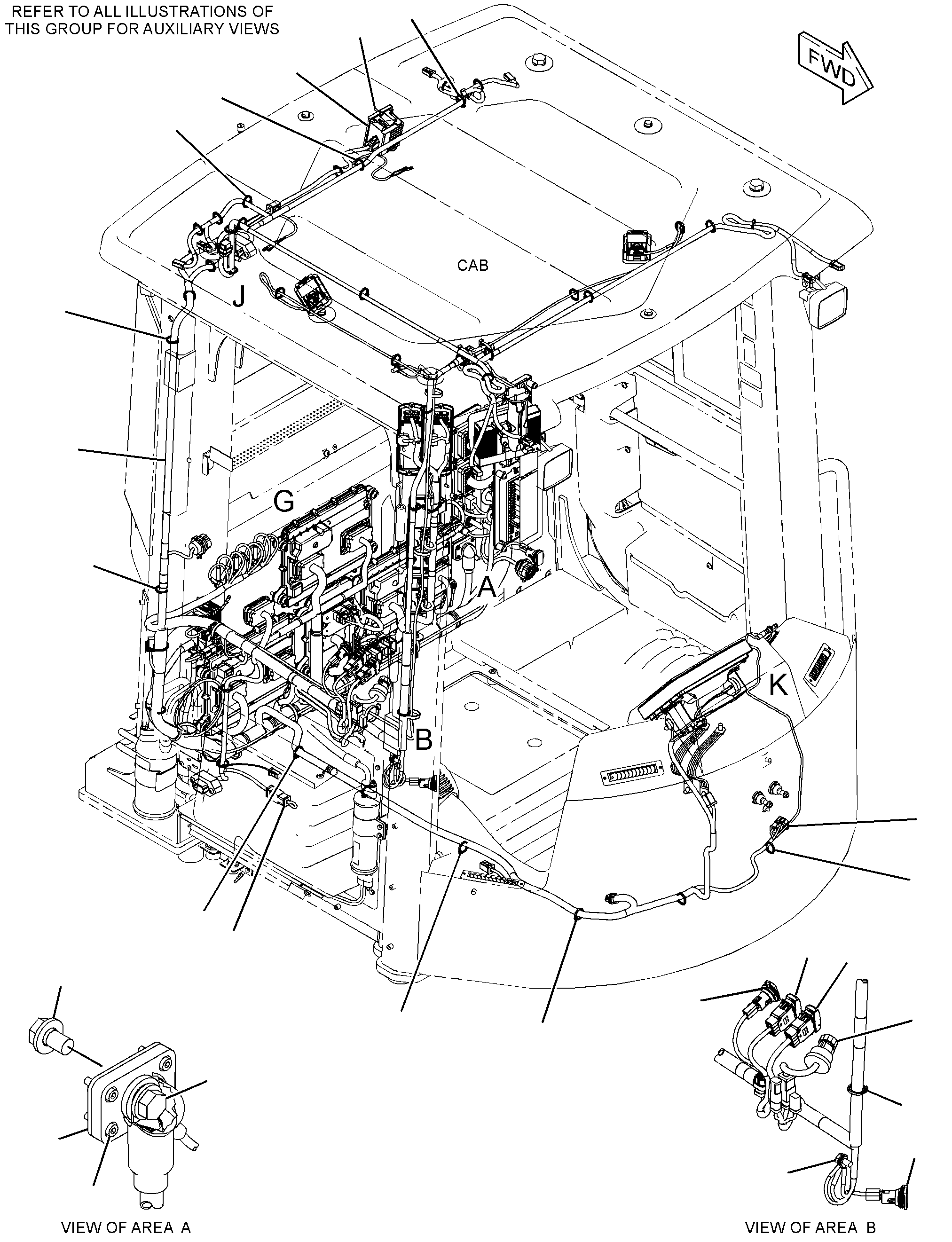

System And Components
346-1054 WIRING GP-CABS/N Z4W524-UP
Group No: 346-1054
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1321829 | 1 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 6I1418 | 2 SPACER (8.2X12.7X28.7-MM THK) | 15 | |
| 7K1181 | 3 STRAP-CABLE | 51 | |
| 8T9655 | 4 MOUNT-ISOLATION | 30 | |
| 8X9618 | 5 STRAP AS-GROUND | 2 | |
| 1058034 | 6 SWITCH AS-LIMIT (DOOR, LH) | 1 | |
| 1076032 | 7 LAMP AS-DOME (24-VOLT) | 2 | |
| 2591286 | LAMP (24-VOLT, 10-WATT) | 1 | |
| 1138490 | 8 FUSE (10-AMPERE) | 23 | |
| 1138491 | 9 FUSE (15-AMPERE) | 18 | |
| 1138492 | 10 FUSE (20-AMPERE) | 2 | |
| 1239694 | 11 HORN | 1 | |
| 1284249 | 12 LOCKWASHER | 1 | |
| 1412759 | 13 FUSE (5-AMPERE) | 2 | |
| 4315058 | 14 WIRE AS (14-GA) | 1 | |
| 1809900 | 15 CAP AS | 2 | |
| 5P7958 | SLEEVE-CABLE SPLICE | 1 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 1799392 | LANYARD | 1 | |
| 1878675 | 16 GASKET | 1 | |
| 2039007 | 17 NUT (1-1/2-18-THD) | 2 | |
| 2110052 | 18 NUT (1-11/16-18-THD) | 1 | |
| 2284982 | 19 RESISTOR AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 6T3610 | RESISTOR | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 2418368 | 20 SWITCH GP-MAGNETIC (24-VOLT)(LOW CURRENT MODULE RELAY) | 1 | |
| 2418368 | 20A SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY) | 1 | |
| 2421555 | 21 PULLER-FUSE | 1 | |
| 2482841 | 22 RELAY AS (24-VOLT) | 17 | |
| 2552752 | 23 SWITCH GP-START (IGNITION) | 1 | |
| 2702679 | 24 LOCKWASHER | 2 | |
| 2727239 | 25 BLOCK AS | 1 | |
| 2802709 | 26 CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)(CRANKCASE GUARD ACTUATOR) | 1 | |
| 2802709 | 26A CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)(WINDOW WIPER) | 1 | |
| 2802709 | 26B CIRCUIT BREAKER AS (15-AMPERE, MANUAL RESET)(VENTILATION FAN) | 1 | |
| 2802710 | 27 CIRCUIT BREAKER AS (20-AMPERE, MANUAL RESET)(HOOD TILT ACTUATOR) | 1 | |
| 2843623 | 28 SWITCH AS-ROCKER (24-VOLT)(HYDRAULIC LOCKOUT) | 1 | |
| 2843665 | 29 SWITCH AS-ROCKER (24-VOLT)(AIR CONDITIONER, HEATER CONT) | 1 | |
| 2888155 | 30 PANEL AS (AIR CONDITIONER, HEATER CONT) | 1 | |
| 2717312 | KNOB | 2 | |
| 2888554 | 31 PANEL AS (WINDOW WIPER CONTROLS) | 1 | |
| 2717312 | KNOB | 2 | |
| 2902968 | 32 HARNESS AS-LIGHTING | 1 | |
| 2909704 | 33 SWITCH AS-ROCKER (WINDOW WIPER CONTROLS) | 1 | |
| 4603173 | 34 MODULE GP-KEYPAD (8-BUTTON) | 1 | |
| 8F1326 | WASHER (4.2X9.5X0.8-MM THK) | 2 | |
| 8T2659 | LOCKNUT (M4X0.7-THD) | 2 | |
| 4603188 | 35 MODULE GP-KEYPAD (16-BUTTON) | 1 | |
| 8F1326 | WASHER (4.2X9.5X0.8-MM THK) | 4 | |
| 8T2659 | LOCKNUT (M4X0.7-THD) | 4 | |
| 2995744 | 36 MODULE GP-RELAY DRIVER | 1 | |
| 7X6315 | STRAP AS-GROUND | 1 | |
| 1344126 | WASHER (4.52X8.28X0.76-MM THK) | 1 | |
| 1842472 | SCREW-PAN HEAD (8-32X0.375-IN) | 1 | |
| 3045687 | 37 CONTROL GP-UNPROGRAMMED (IMPLEMENT) | 1 | |
| 3045687 | 37A CONTROL GP-UNPROGRAMMED (CAB) | 1 | |
| 3045691 | 38 CONTROL GP-UNPROGRAMMED (TRANSMISSION) | 1 | |
| 3521695 | 39 DISPLAY GP-CAMERA | 1 | |
| 3917036 | 40 CONTROL GP-UNPRGMED MONITOR | 1 | |
| 3675213 | 41 SWITCH AS-ROCKER (24-VOLT) | 1 | |
| 3355365 | 42 SOCKET-AUXILIARY POWER (12-VOLT) | 3 | |
| 3407161 | 43 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 3447451 | 44 FILM-IDENTIFICATION (FUSE PANEL, UPPER) | 1 | |
| 3447452 | 45 FILM-IDENTIFICATION (FUSE PANEL, LOWER) | 1 | |
| 3461059 | 47 BRACKET AS | 1 | |
| 3461060 | 48 BRACKET AS | 1 | |
| 3461063 | 49 PLATE | 1 | |
| 3461064 | 50 GASKET | 1 | |
| 3461068 | 51 BAR-BUS | 1 | |
| 0964833 | 53 BOLT-SOCKET HEAD (M5X0.8X20-MM) | 4 | |
| 1272170 | 54 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 1 | |
| 1305300 | 55 CLIP | 3 | |
| 1342540 | 56 RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 1388454 | 57 SCREW-TRUSS HEAD (M4X0.7X10-MM) | 2 | |
| 1748131 | 58 SCREW-TRUSS HEAD (M4X0.7X12-MM) | 3 | |
| 7I2272 | 60 BOLT (M5X0.8X12-MM) | 8 | |
| 2747409 | 61 SCREW-TRUSS HEAD (M8X1.25X45-MM) | 15 | |
| 6V2687 | 62 SCREW-PAN HEAD (10-24X1-IN) | 8 | |
| 8T0328 | 63 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4121 | 64 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4137 | 65 BOLT (M10X1.5X20-MM) | 10 | |
| 8T4179 | 66 BOLT (M12X1.75X20-MM) | 2 | |
| 8T4223 | 67 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 1912276 | 68 SCREW-TRUSS HEAD (M5X0.8X20-MM) | 2 | |
| 9N0869 | 69 WASHER-HARD (8.8X25.5X2-MM THK) | 18 | |
| 9X1046 | 70 SCREW (M4X0.7X18-MM) | 4 | |
| 9X2041 | 71 SCREW-TRUSS HEAD (M10X1.5X20-MM) | 1 | |
| 9X2044 | 72 SCREW-TRUSS HEAD (M6X1X16-MM) | 24 | |
| 9X2045 | 73 SCREW-TRUSS HEAD (M6X1X20-MM) | 4 | |
| 6V3987 | 75 SEAL (0.07-M EACH) | ||
| 3803890 | 76 WIRING GP-CAB | 1 | |
| 3523964 | 77 CLIP (LADDER) | 1 | |
| 3520381 | 78 FLASHER AS (12/24-VOLT)(TURN SIGNAL) | 1 | |
| 3391103 | 79 WASHER (6.6X35X1.5-MM THK) | 3 | |
| 2771873 | 80 CLIP (LADDER) | 1 | |
| 1178929 | 81 WASHER (6.6X22X2-MM THK) | 1 | |
| 0996418 | 82 NUT (M6X1-THD) | 3 | |
| 4B4277 | 83 WASHER (8.8X17.5X1.6-MM THK) | 4 | |
| 8T8737 | 84 PLUG-SEAL | 24 | |
| 1552255 | 85 KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552257 | 86 KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 2574907 | 87 COVER AS-ACCESS | 2 | |
| 4167158 | 88 COVER-CONNECTOR | 1 |
