System And Components

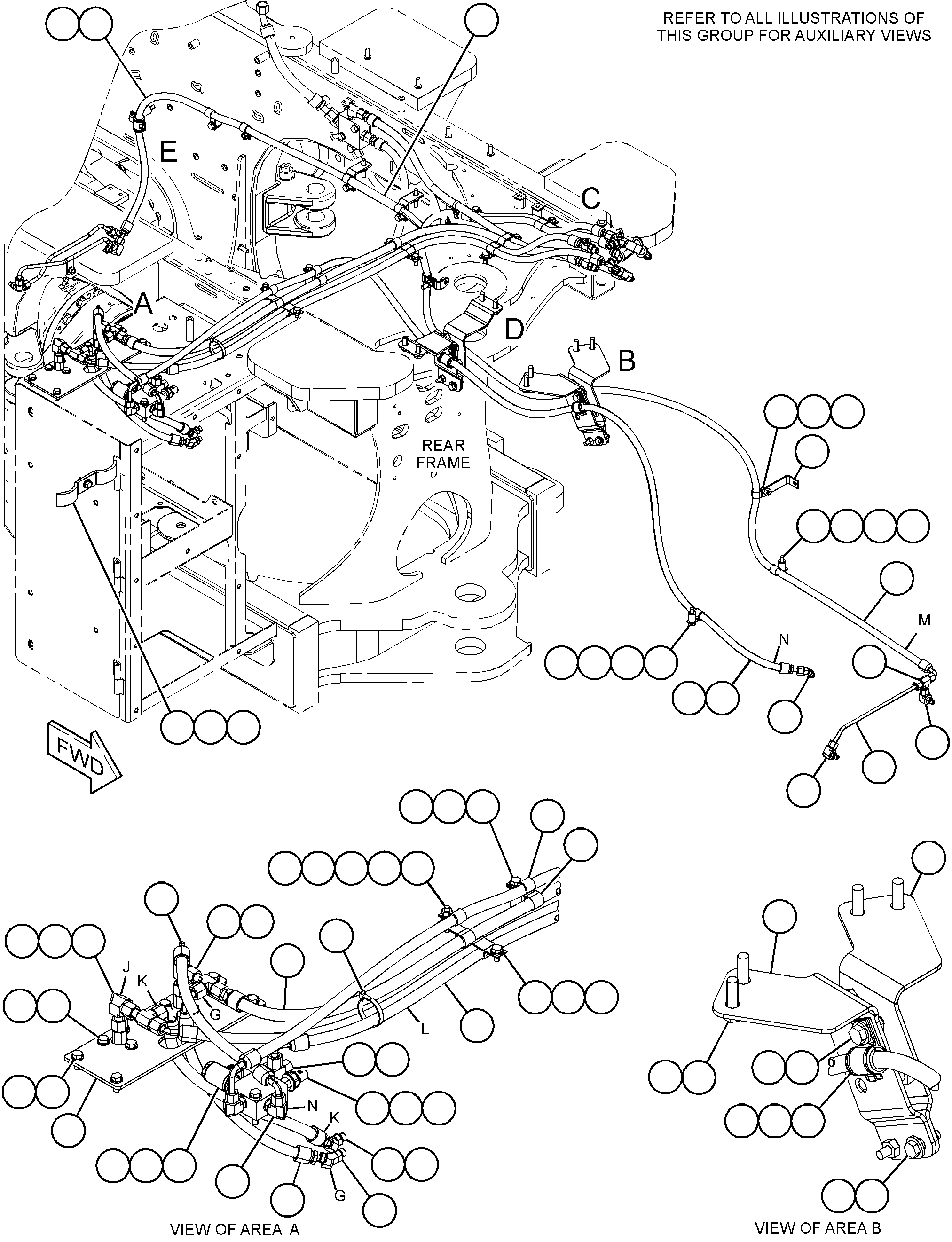

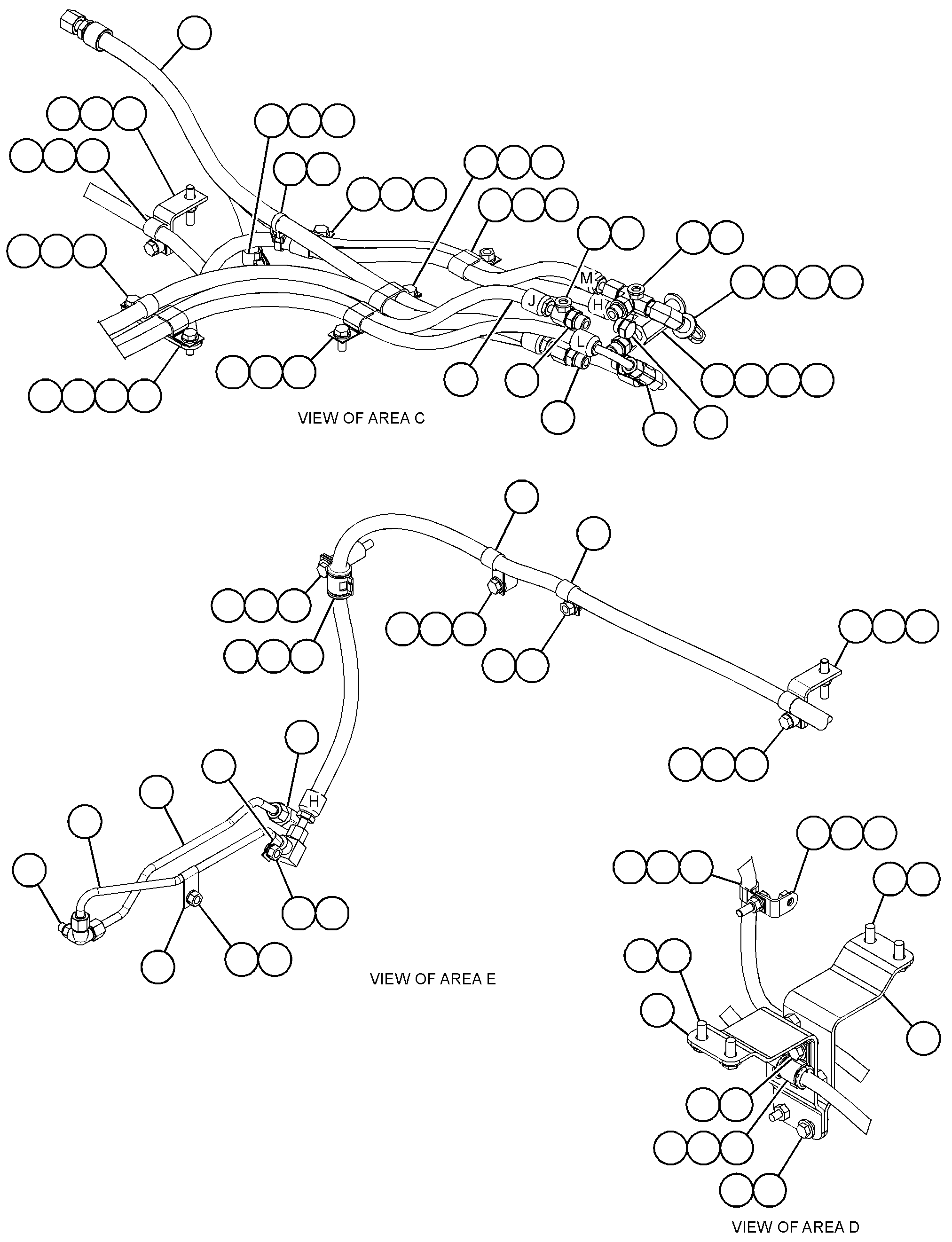

457-3105 CONTROL GP-SERVICE BRAKES/N FRS1-UP
Group No: 457-3105
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V9829 | 1 CAP (ORFS) | 1 | |
| 7K1181 | 2 STRAP-CABLE | 3 | |
| 1243019 | 3 BRACKET AS | 1 | |
| 1258534 | 4 PLATE AS | 1 | |
| 1488340 | 6 CONNECTOR AS | 3 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488353 | 7 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488361 | 8 ELBOW AS (90-DEG) | 3 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9200 | ELBOW | 1 | |
| 1488370 | 10 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 | |
| 1488378 | 11 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488411 | 12 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1488426 | 13 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6696 | TEE-O-RING | 1 | |
| 1488434 | 14 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9843 | TEE | 1 | |
| 1488444 | 15 TEE AS-SWIVEL | 3 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 1546626 | 16 BRACKET AS | 1 | |
| 1628264 | 17 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 0815645 | TEE | 1 | |
| 1645567 | 18 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1648908 | 19 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T0077 | CONNECTOR | 1 | |
| 1725761 | 20 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1268306 | TEE | 1 | |
| 1977382 | 21 CLAMP | 1 | |
| 2949546 | 22 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2446625 | ADAPTER-SPECIAL | 1 | |
| 2416215 | 23 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8076 | ELBOW | 1 | |
| 2965270 | 24 SENSOR GP-PRESSURE (BRAKE OIL ACCUMULATOR) | 1 | |
| 3191037 | 25 BRACKET AS | 2 | |
| 5622716 | 26 HOSE AS | 1 | |
| 3670319 | 27 TUBE AS | 1 | |
| 3670359 | 28 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1333260 | SPACER (11X19X10-MM THK) | 6 | |
| 3779555 | 29 TEE AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 3779554 | ADAPTER-TEE | 1 | |
| 3834284 | 30 BRACKET AS | 2 | |
| 3834286 | 31 BRACKET AS | 1 | |
| 3834288 | 32 BRACKET AS | 1 | |
| 3834375 | 33 HOSE AS | 1 | |
| 3996736 | 34 HOSE AS | 2 | |
| 5622714 | 35 HOSE AS | 1 | |
| 4239942 | 36 HOSE AS | 1 | |
| 4341370 | 37 TUBE AS | 1 | |
| 4446926 | 38 TUBE AS | 1 | |
| 5457861 | 39 MANIFOLD GP-CONTROL (PARKING BRAKE) | 1 | |
| 4651658 | 40 HOSE AS | 1 | |
| 5622717 | 41 HOSE AS | 1 | |
| 4651672 | 42 HOSE AS | 1 | |
| 4651673 | 43 HOSE AS | 1 | |
| 0672551 | 44 CLIP | 10 | |
| 0910081 | 45 SPACER (10.5X20X10-MM THK) | 2 | |
| 0919035 | 46 SPACER (11X25X20-MM THK) | 1 | |
| 1013129 | 47 STUD (M10X1.5-THD) | 2 | |
| 1336934 | 49 SPACER (11X20X25-MM THK) | 2 | |
| 5T6374 | 50 SPACER (11X20X40-MM THK) | 1 | |
| 1423953 | 51 STUD (M10X1.5-THD) | 2 | |
| 8T7934 | 52 WASHER-HARD (11X21X5-MM THK) | 4 | |
| 1904885 | 53 SPACER (11X22X50-MM THK) | 1 | |
| 1F7567 | 54 CLIP (LOOP) | 1 | |
| 1J9671 | 55 SEAL-O-RING | 1 | |
| 2062423 | 56 SADDLE-MOUNTING | 1 | |
| 2971546 | 57 CLIP | 1 | |
| 3368614 | 58 CLIP (LOOP) | 2 | |
| 3445675 | 59 NUT (M10X1.5-THD) | 9 | |
| 4D7733 | 60 CLIP (LOOP) | 5 | |
| 5P1076 | 61 WASHER-HARD (13.5X30X4-MM THK) | 8 | |
| 1S0994 | 62 CLIP (LOOP) | 1 | |
| 6D4247 | 63 CLIP | 1 | |
| 6V0852 | 64 CAP-DUST | 2 | |
| 6V8397 | 65 SEAL-O-RING | 1 | |
| 7B1597 | 66 CLIP | 1 | |
| 7S3916 | 67 CLIP (TAB) | 5 | |
| 7S3919 | 68 CLIP (SLOT) | 5 | |
| 7V6571 | 69 GROMMET | 5 | |
| 7X7729 | 70 WASHER (11X25X3-MM THK) | 5 | |
| 8T4121 | 73 WASHER-HARD (11X21X2.5-MM THK) | 33 | |
| 8T4136 | 74 BOLT (M10X1.5X25-MM) | 9 | |
| 8T4137 | 75 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 76 BOLT (M12X1.75X30-MM) | 9 | |
| 8T4172 | 77 BOLT (M10X1.5X80-MM) | 1 | |
| 8T4182 | 78 BOLT (M10X1.5X45-MM) | 2 | |
| 8T4185 | 79 BOLT (M10X1.5X50-MM) | 1 | |
| 8T4195 | 80 BOLT (M10X1.5X30-MM) | 6 | |
| 8T4196 | 81 BOLT (M10X1.5X35-MM) | 6 | |
| 8T4223 | 82 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T5005 | 83 BOLT (M10X1.5X70-MM) | 1 | |
| 8T6466 | 84 BOLT (M10X1.5X60-MM) | 2 | |
| 9X2027 | 85 WASHER (11X18X2-MM THK) | 4 | |
| 8T4183 | 86 BOLT (M12X1.75X40-MM) | 4 | |
| 7I1024 | 87 GUARD-HOSE (17-CM) | ||
| 2977958 | 88 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2053079 | ADAPTER | 1 |
