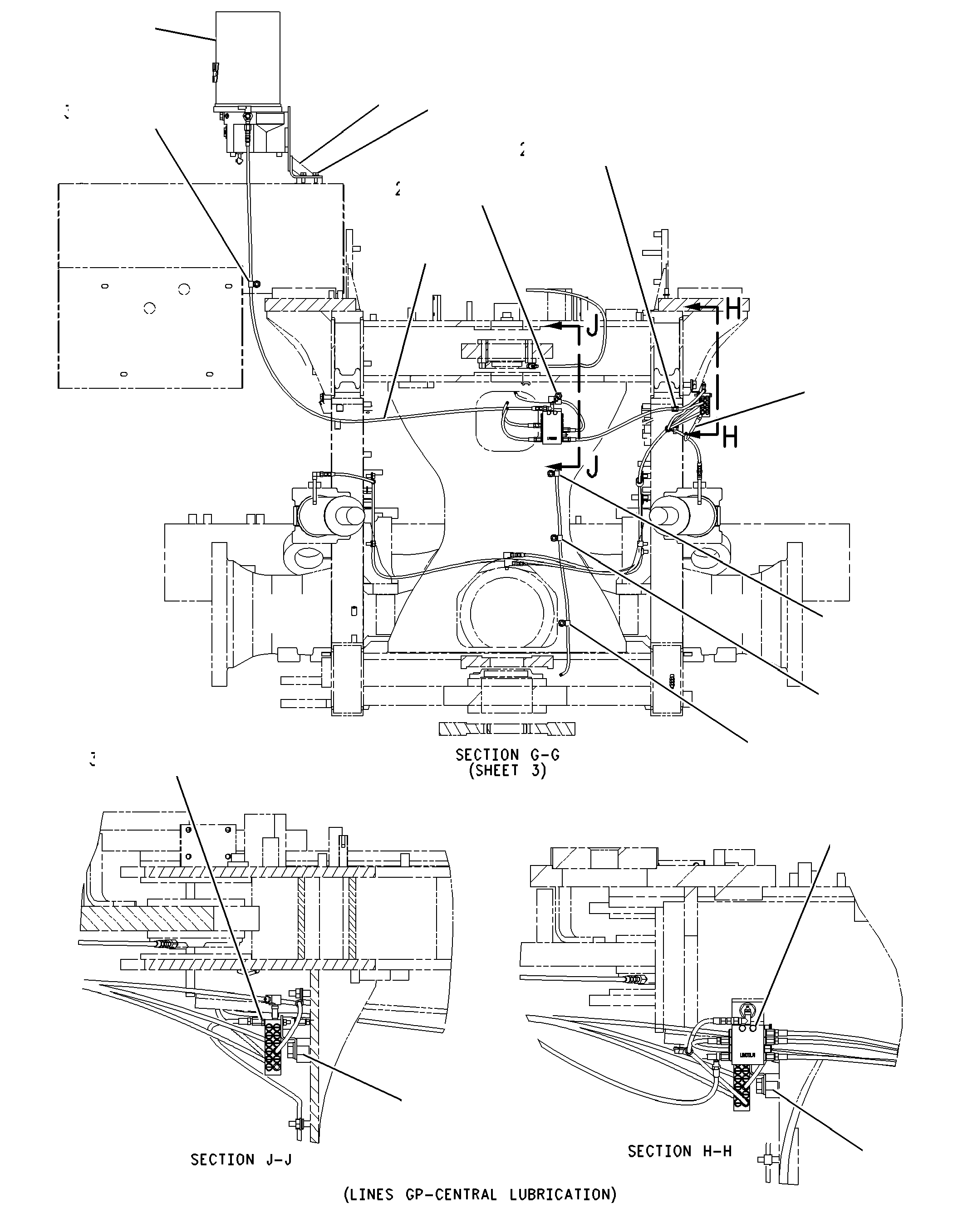

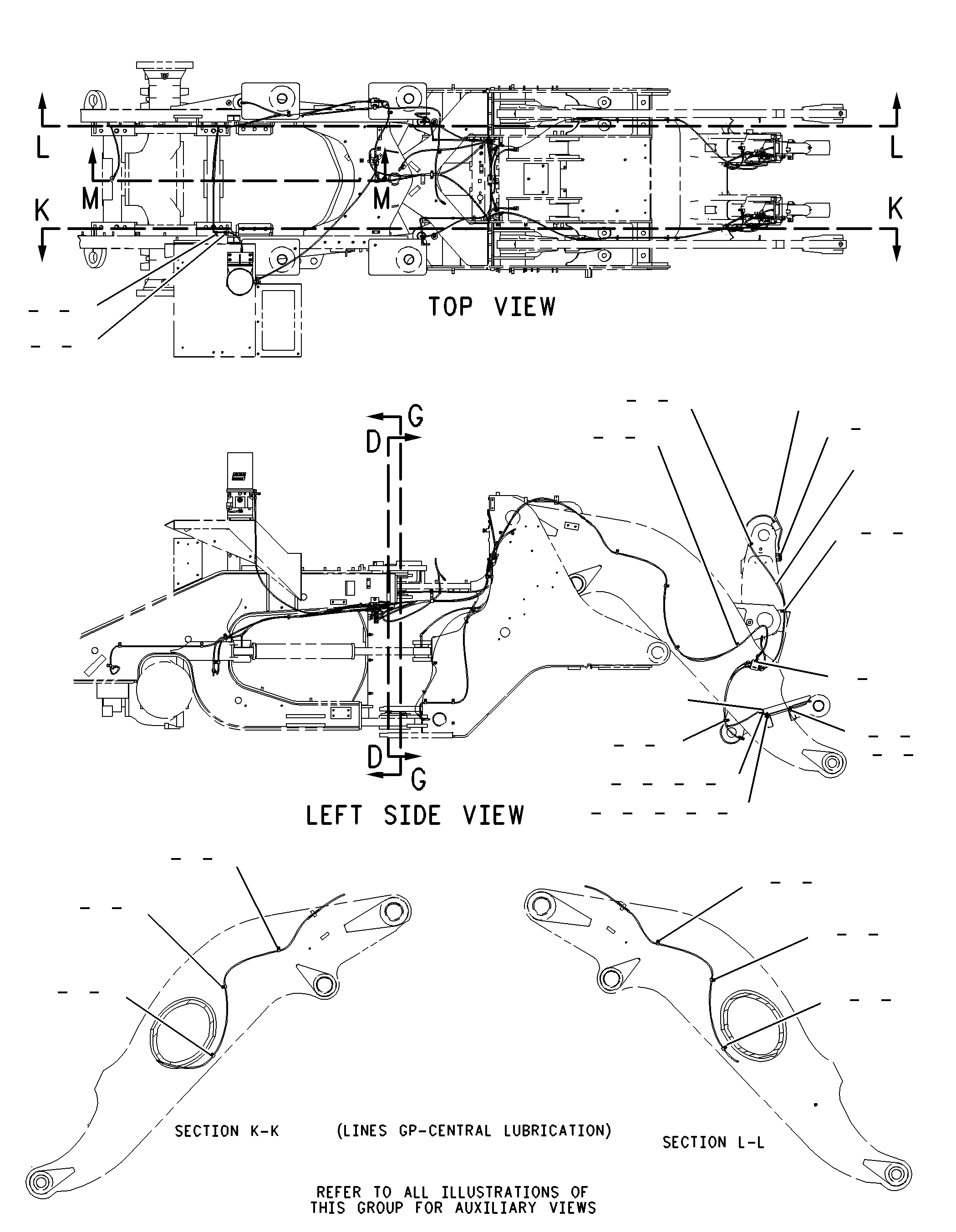

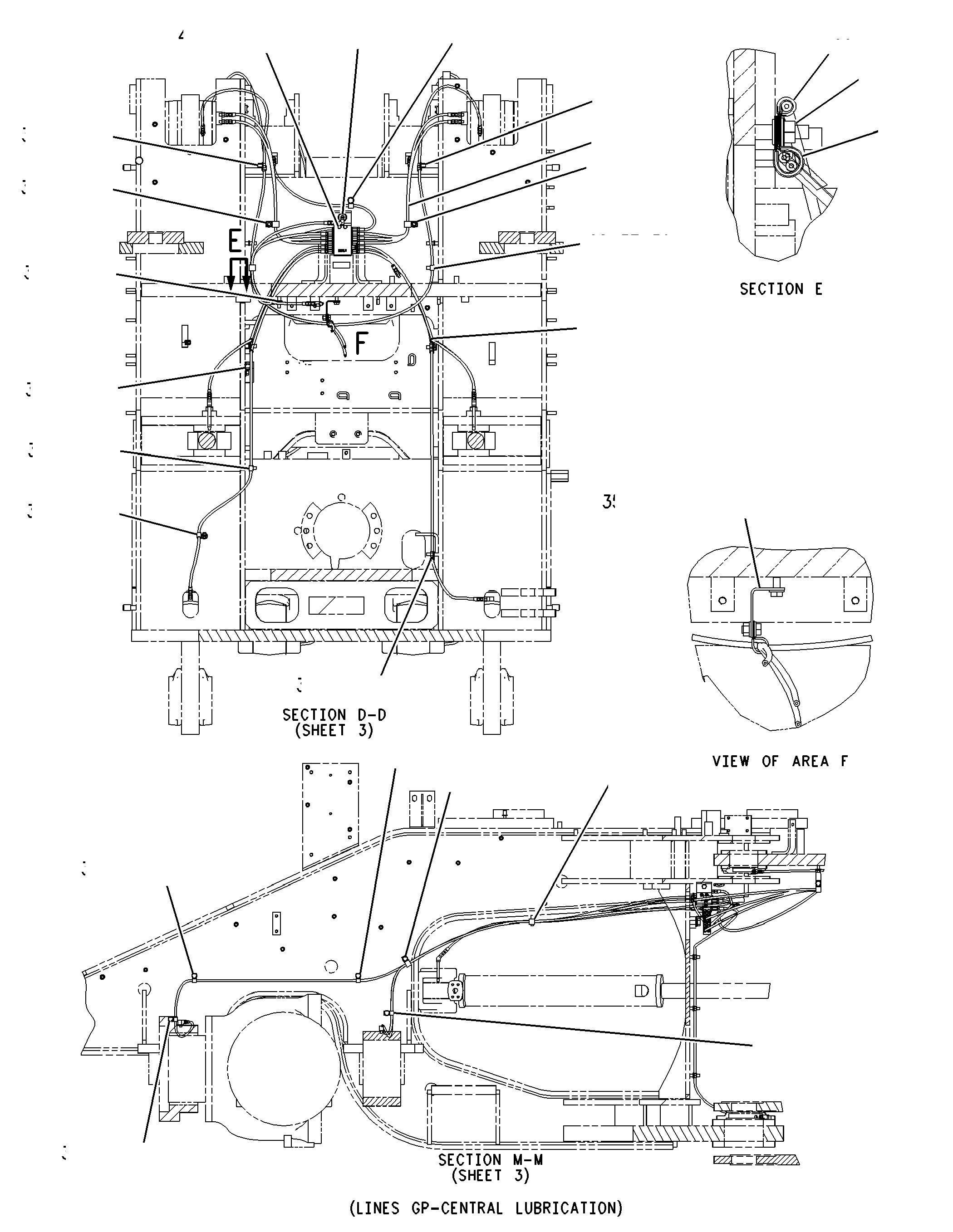

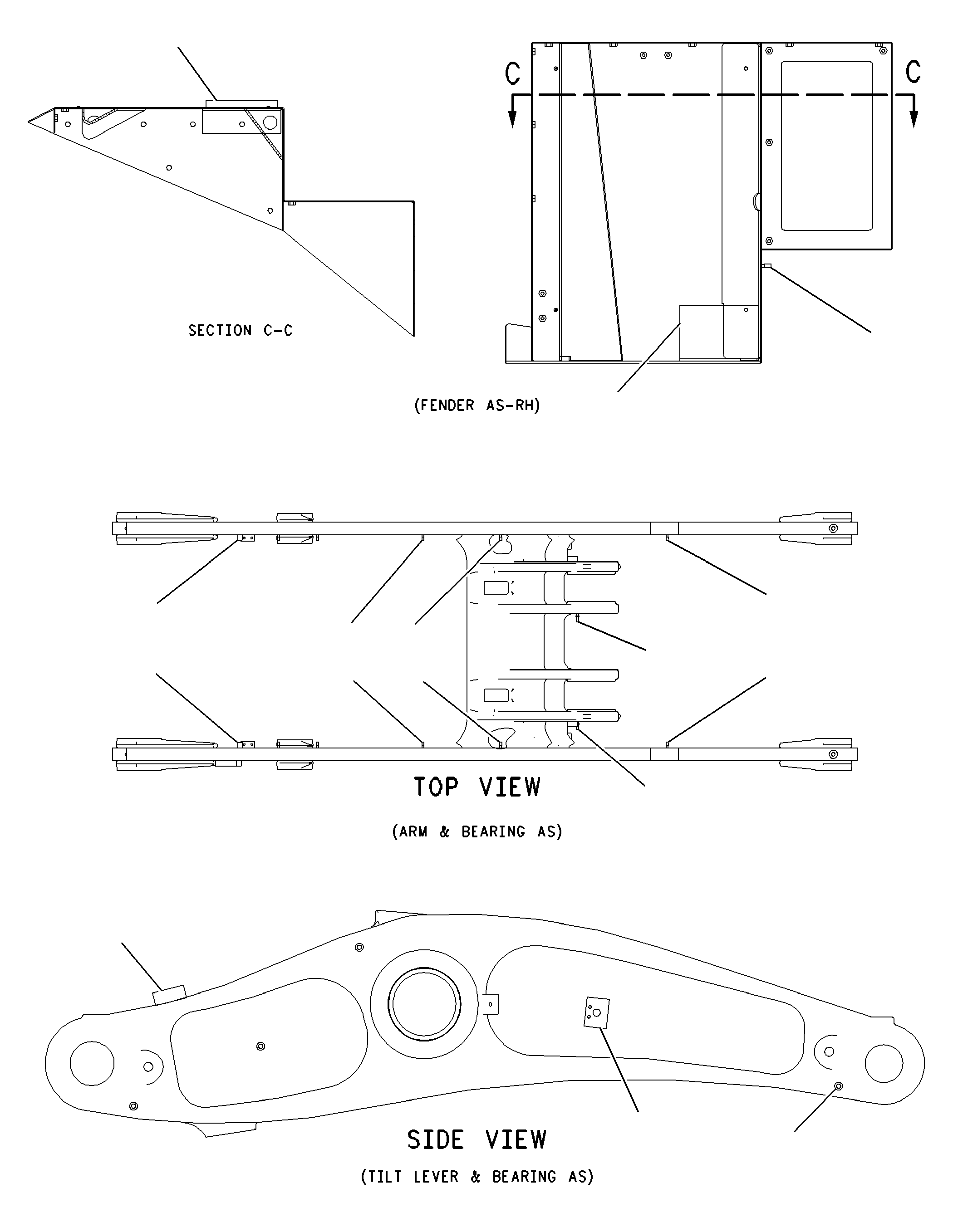

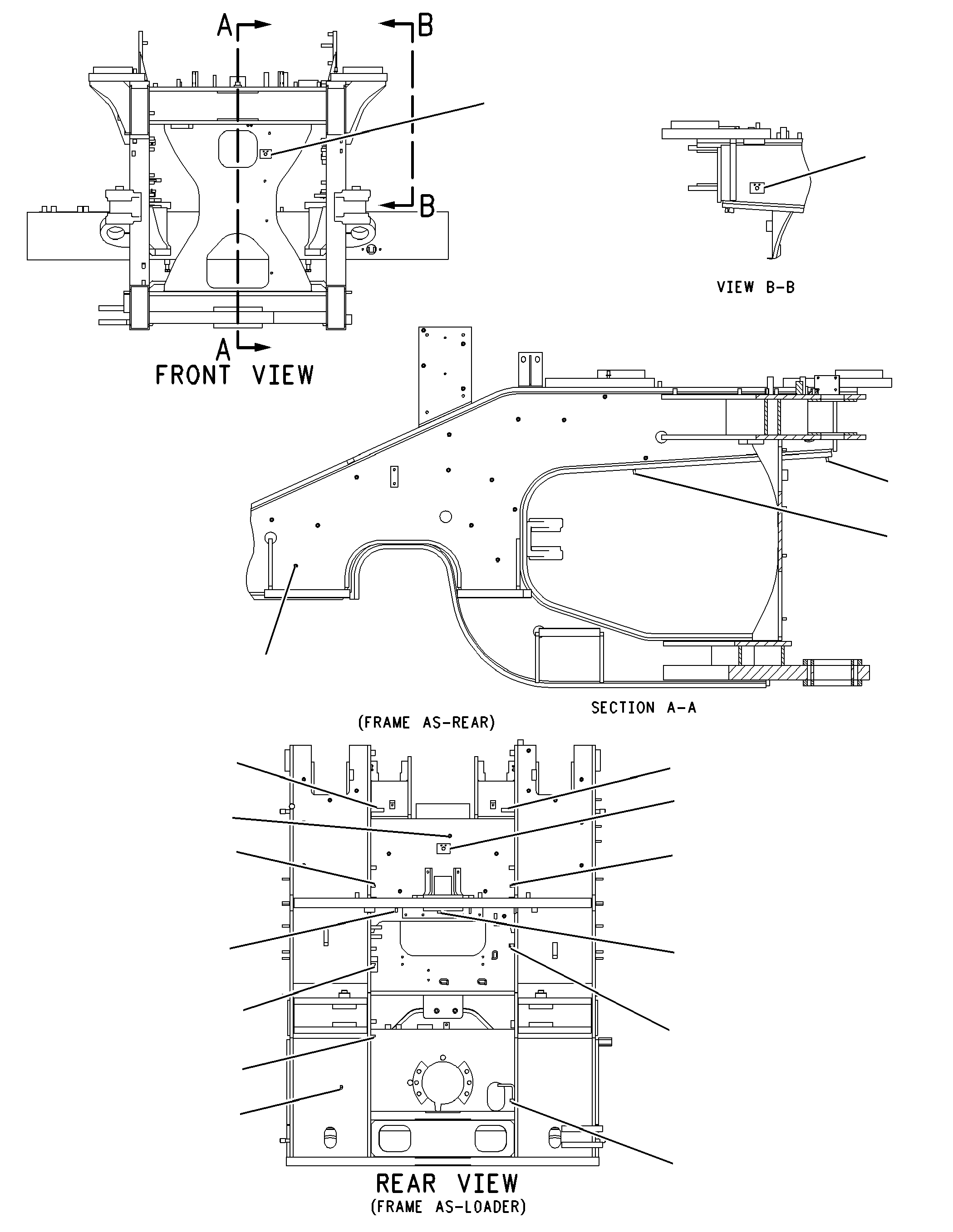

2Q-8427 LUBRICATION GP-AUTOMATIC -CUSTOMS/N 2KR1-4552

Group No: 2Q-8427
Part NumberPart NameQty
8T38511 BOSS-WELD (M10X1.5X17.5-MM)2
17188622 BLOCK2
8T49673 STUD-WELD (M10X1.5X23-MM OAL)6
8T38514 BOSS-WELD (M10X1.5X17.5-MM)2
17188625 BLOCK1
7X07526 BOSS-WELD (M10X1.5 X 65-MM OAL)2
8T49677 STUD-WELD (M10X1.5X23-MM OAL)9
11020238 STUD-WELD (M10X1.5X25-MM)2
17264709 BLOCK2
8T421910 STUD-WELD (M10X1.5X17.5-MM)8
171886211 BLOCK2
174821112 BLOCK2
8T646213 BOSS-WELD8
171878814 BLOCK1
171878915 PLATE1
8T421916 STUD-WELD (M10X1.5X17.5-MM)1
160174417 BRACKET1
171719118 LINES GP-LUBRICATION (RIGHT LEVER, LEFT LEVER)1
171719219 LINES GP-LUBRICATION (AXLES, STEER CYL'S,LOWER HITCH)1
171719320 LINES GP-LUBRICATION (BKT CONT; STEER CYL; UP HITCH)1
171719421 LINES GP-LUBRICATION (TILT CYL; LINKS; BELL CRANK)2
171880622 BRACKET AS1
171882323 TANK GP-GREASE1
171886124 BRACKET2
174821425 GUARD AS2
186162426 GUARD2
130843327 GROMMET4
4D779428 CLIP37
4K886429 CLIP3
5C289030 NUT (M6X1-THD)6
6V435631 CLIP (SLOT)4
6V435732 CLIP (TAB)4
7X253433 BOLT (M6X1X50-MM)10
7X255234 BOLT (M16X2X30-MM)3
8M277335 CLIP6
8T412136 WASHER-HARD (11X21X2.5-MM THK)61
8T413337 NUT (M10X1.5-THD)33
8T413638 BOLT (M10X1.5X25-MM)10
8T413739 BOLT (M10X1.5X20-MM)14
8T418640 BOLT (M10X1.5X40-MM)2
8T419641 BOLT (M10X1.5X35-MM)2
8T422342 WASHER-HARD (13.5X25.5X3-MM THK)8
8T495643 BOLT (M12X1.75X35-MM)8
9M840644 CLIP1
9X825645 WASHER (6.6X12X2-MM THK)16
9X825746 WASHER (17.5X30X3.5-MM THK)3
174006047 HARNESS AS-CONTROL (AUTO LUBE FUSE, RELAY, PUMP)1
1028803KIT-RECEPTACLE (3-PIN)1
174006148 HARNESS AS (AUTO LUBRICATION, KEY)1
3S209349 STRAP-CABLE6
3K878150 FUSE (7.5-AMPERE)2
1897241PLATE1
