2Q-8499 LUBRICATION GP-AUTOMATIC -CUSTOMS/N 2KR4553-UP

Group No: 2Q-8499

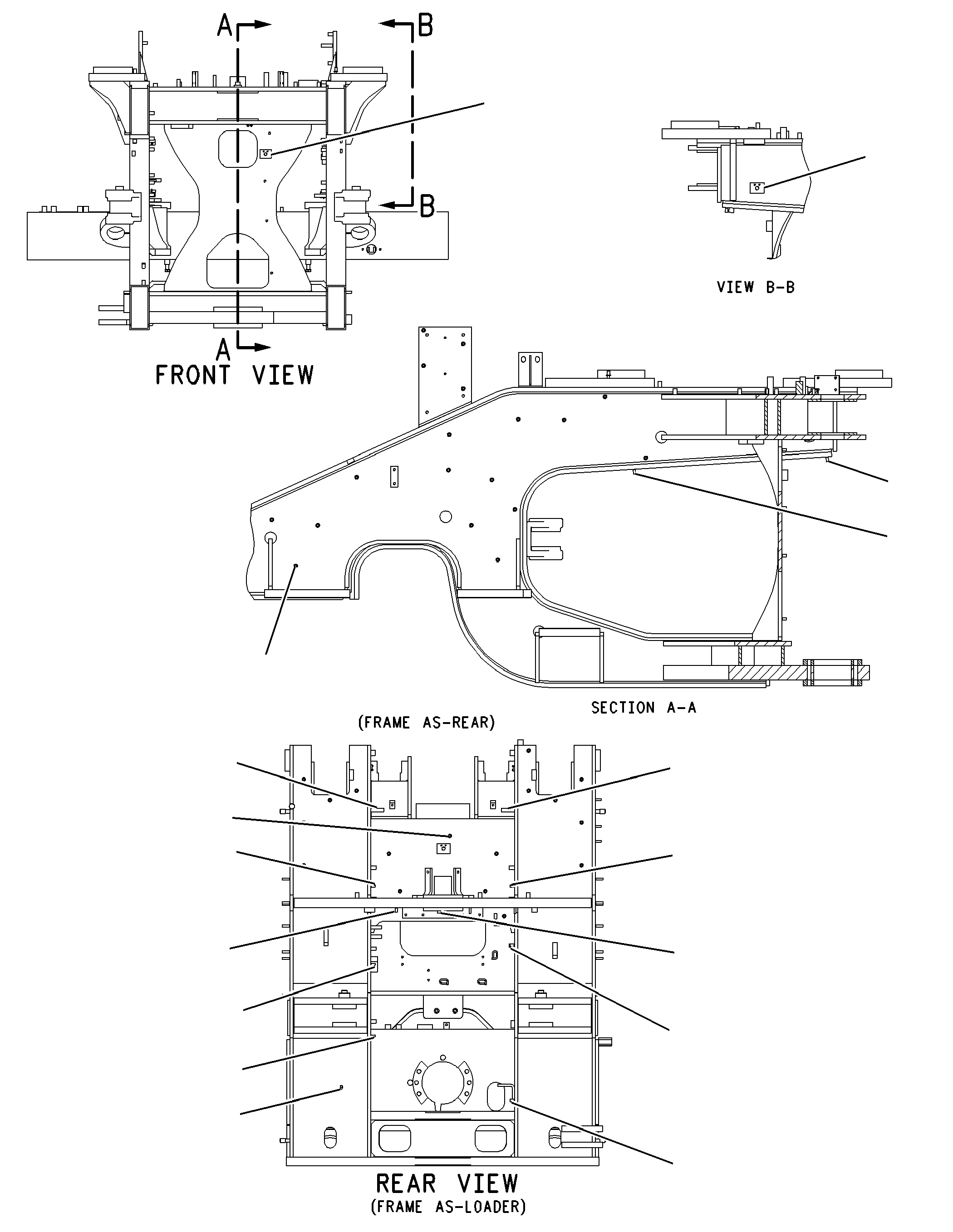

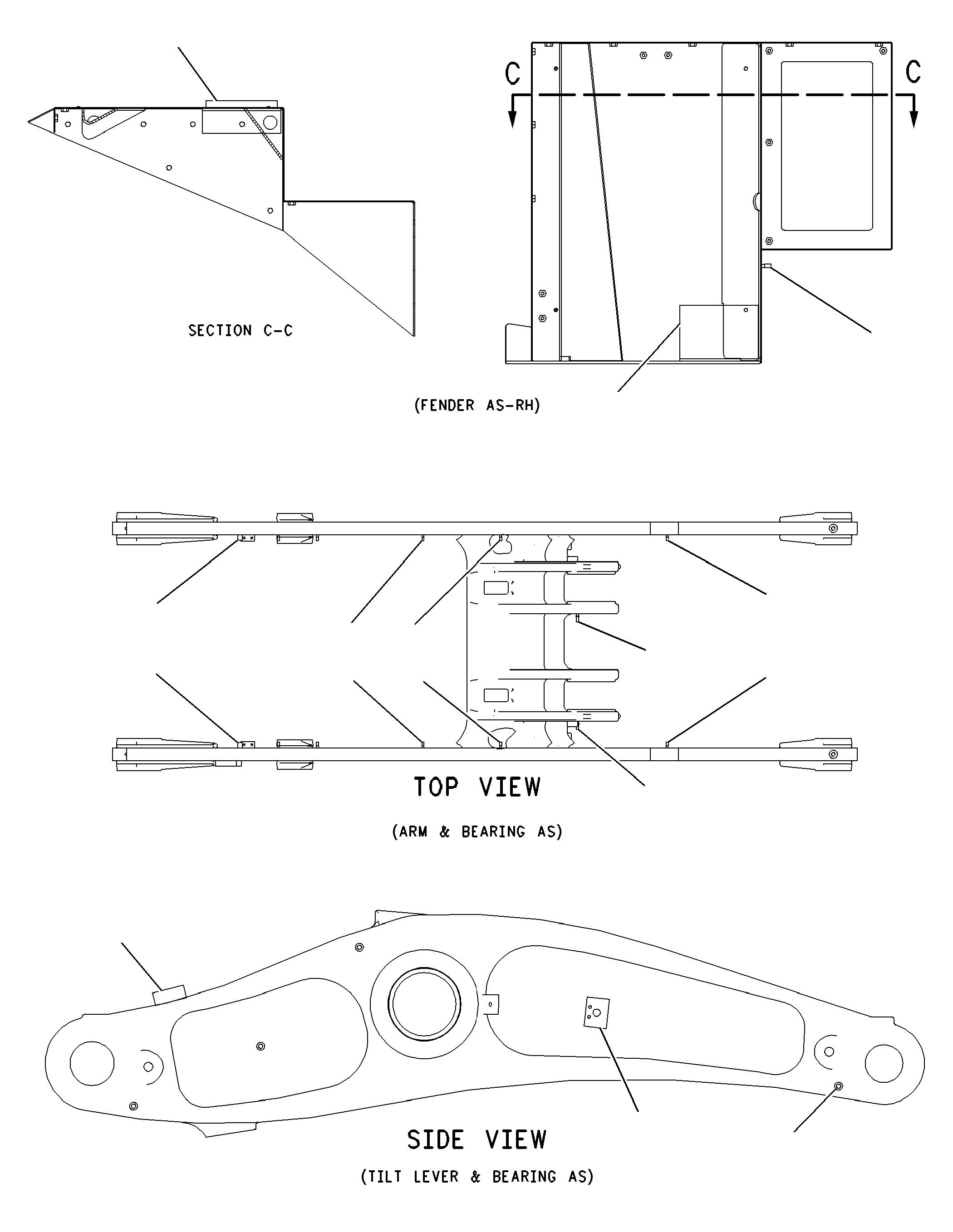

Part NumberPart NameQty
8T38511 BOSS-WELD (M10X1.5X17.5-MM)2
17188622 BLOCK2
8T49673 STUD-WELD (M10X1.5X23-MM OAL)6
8T38514 BOSS-WELD (M10X1.5X17.5-MM)2
7X07525 BOSS-WELD (M10X1.5 X 65-MM OAL)2
8T49676 STUD-WELD (M10X1.5X23-MM OAL)9
11020237 STUD-WELD (M10X1.5X25-MM)2
17264708 BLOCK2
8T49679 STUD-WELD (M10X1.5X23-MM OAL)8
171886210 BLOCK2
174821111 BLOCK2
8T646212 BOSS-WELD8
171878813 BLOCK1
171878914 PLATE1
8T421915 STUD-WELD (M10X1.5X17.5-MM)1
5K924316 ELBOW-FLARED2
5K997917 CONNECTOR2
160174418 BRACKET1

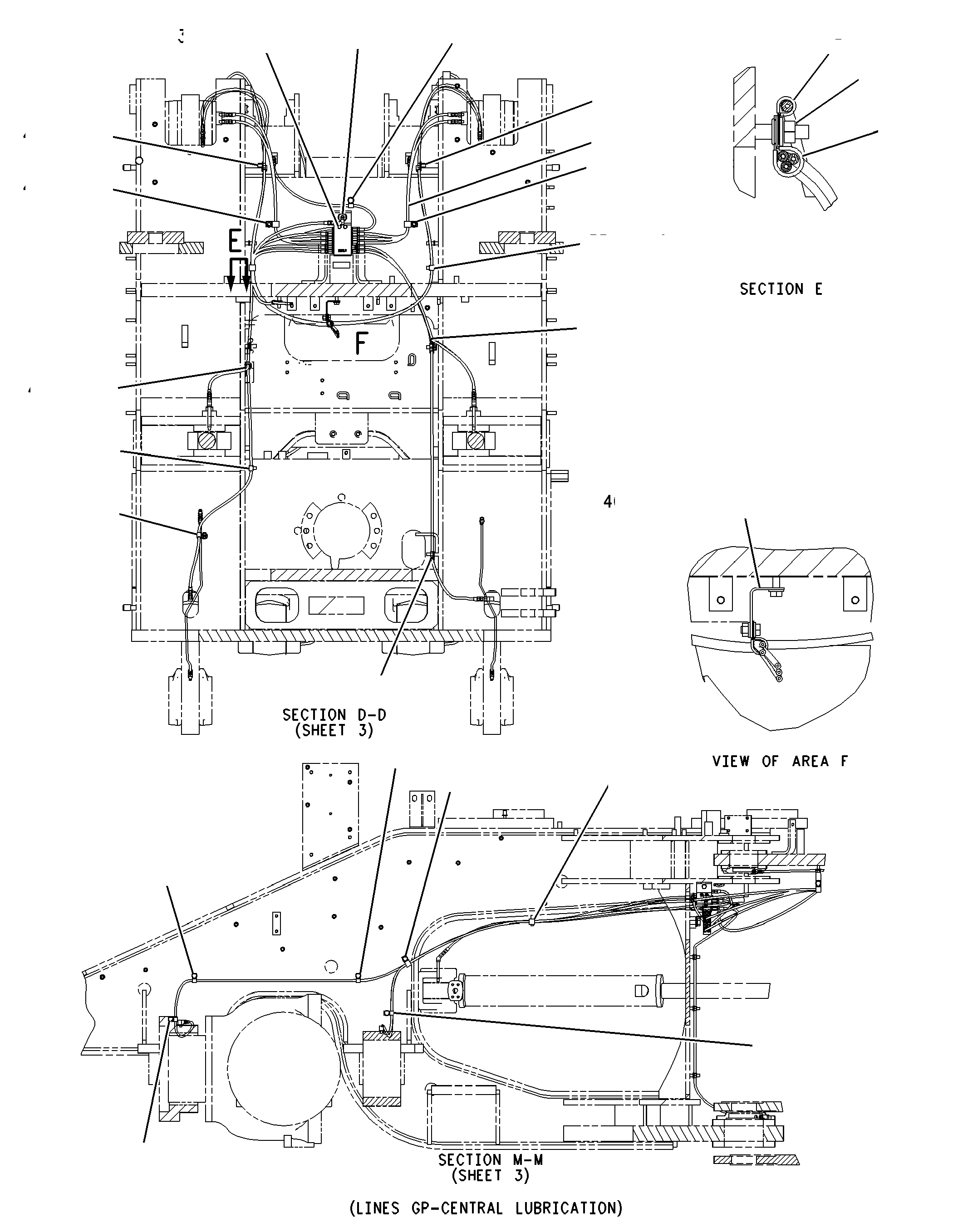

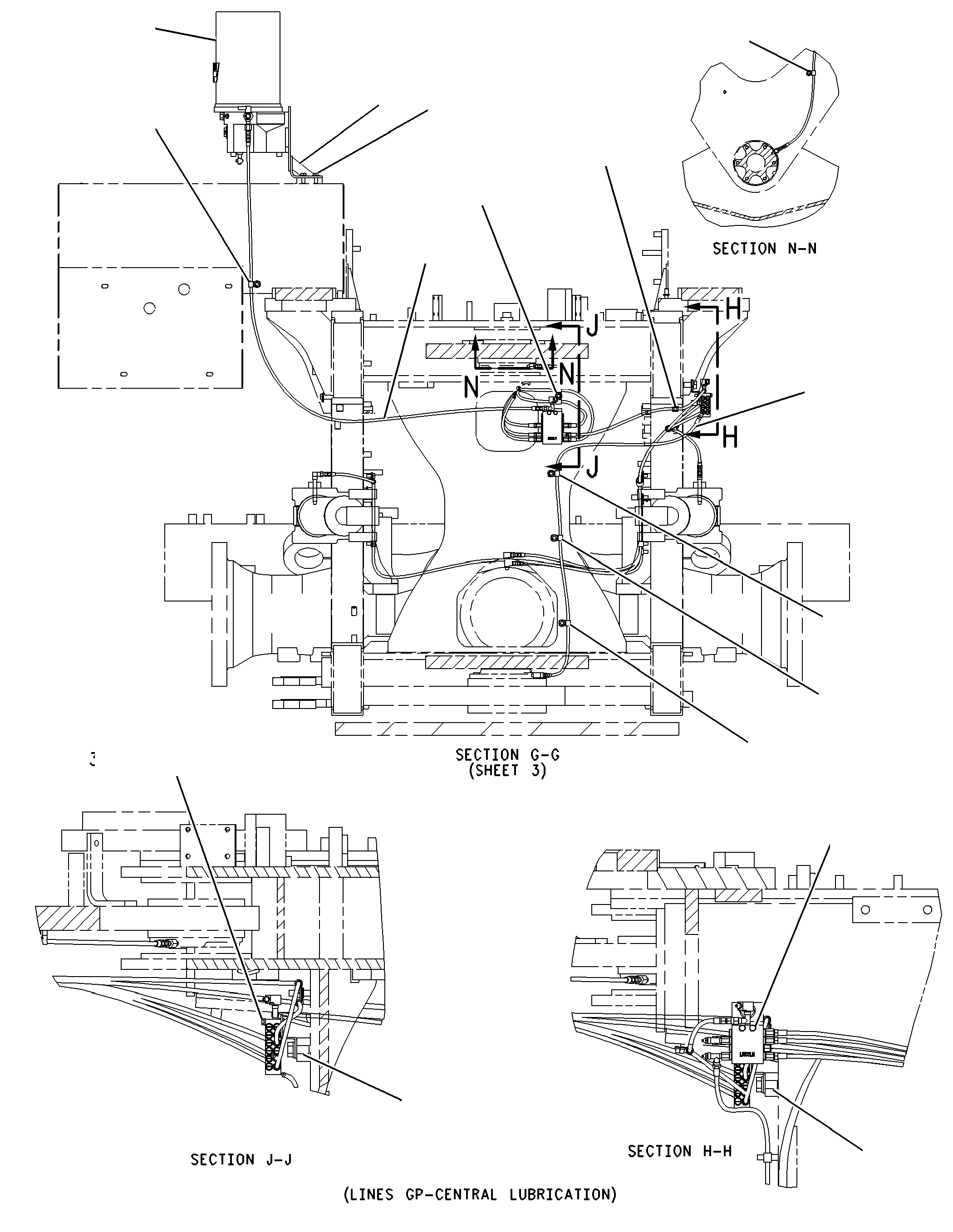

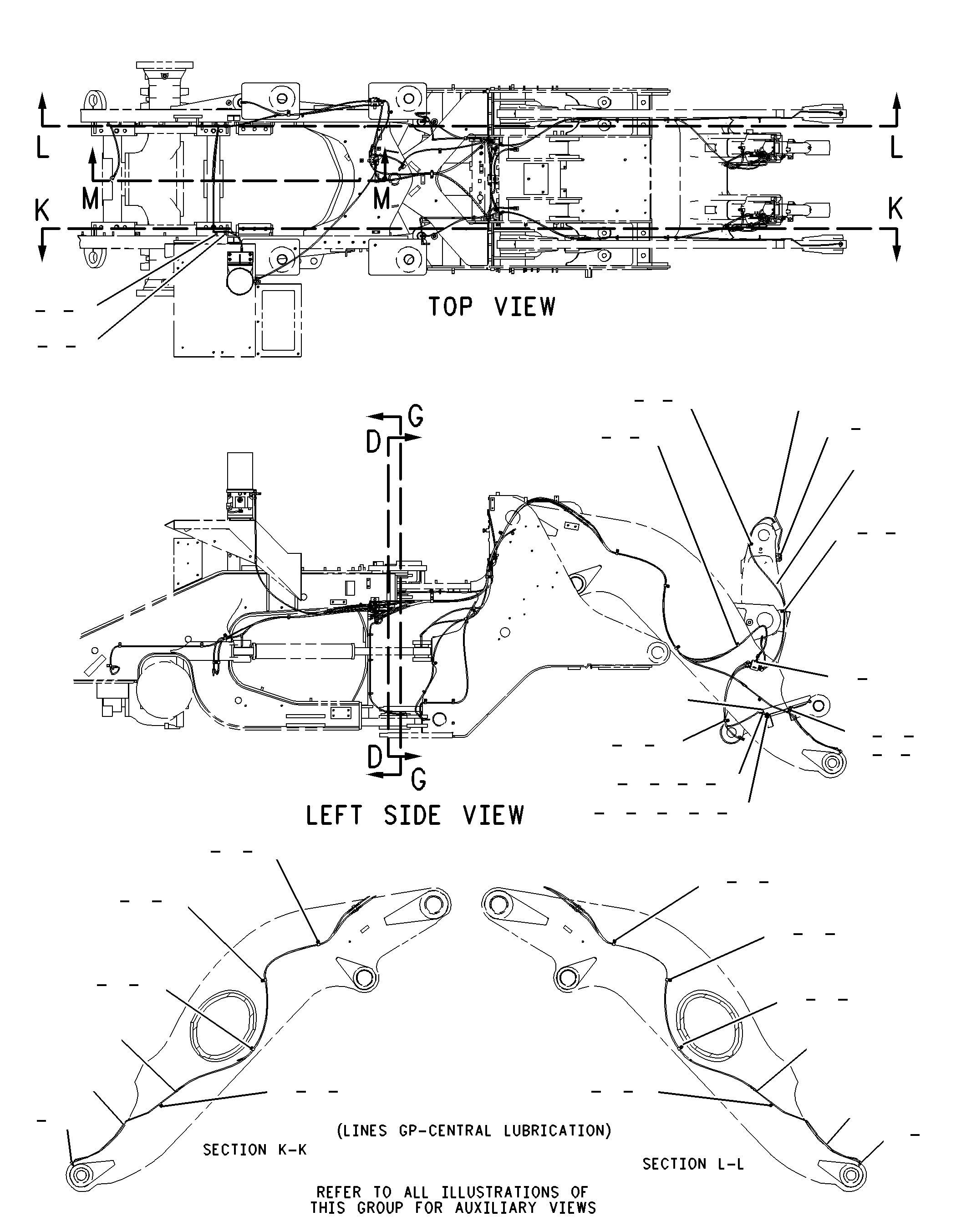

171719219 LINES GP-LUBRICATION (AXLES, STEER CYL'S,LOWER HITCH)1
171719320 LINES GP-LUBRICATION (BKT CONT; STEER CYL; UP HITCH)1
171719421 LINES GP-LUBRICATION (TILT CYL; LINKS; BELL CRANK)2
171880622 BRACKET AS1
171882323 TANK GP-GREASE1
171886124 BRACKET2
174821425 GUARD AS2
186162426 GUARD2
189700327 LINES GP-LUBRICATION (B-PINS, LEVERS, FRAMES)1
189704228 TUBE AS1
189704329 TUBE AS1
130843330 GROMMET4
4D779431 CLIP29
4K302632 EXTENSION (FITTING)2
4K886433 CLIP12
5C289034 NUT (M6X1-THD)6
6V435635 CLIP (SLOT)4
6V435736 CLIP (TAB)4
7X253437 BOLT (M6X1X50-MM)10
7X255238 BOLT (M16X2X30-MM)3
8M277239 CLIP2
8M277340 CLIP6
8T412141 WASHER-HARD (11X21X2.5-MM THK)63
8T413342 NUT (M10X1.5-THD)35
8T413643 BOLT (M10X1.5X25-MM)10
8T413744 BOLT (M10X1.5X20-MM)14
8T418645 BOLT (M10X1.5X40-MM)2
8T419646 BOLT (M10X1.5X35-MM)2
8T422347 WASHER-HARD (13.5X25.5X3-MM THK)8
8T495648 BOLT (M12X1.75X35-MM)8
9M840649 CLIP1
9X825650 WASHER (6.6X12X2-MM THK)16
9X825751 WASHER (17.5X30X3.5-MM THK)3
174006052 HARNESS AS-CONTROL (AUTO LUBE FUSE, RELAY, PUMP)1
1028803KIT-RECEPTACLE (3-PIN)1
9G2731HOLDER AS-FUSE2
189805953 HARNESS AS (KEY)1
1028804KIT-RECEPTACLE (4-PIN)1
1552271KIT-CONNECTING PLUG (4-PIN)1
3S209354 STRAP-CABLE6
3K878155 FUSE (7.5-AMPERE)2
1897241PLATE1
