System And Components

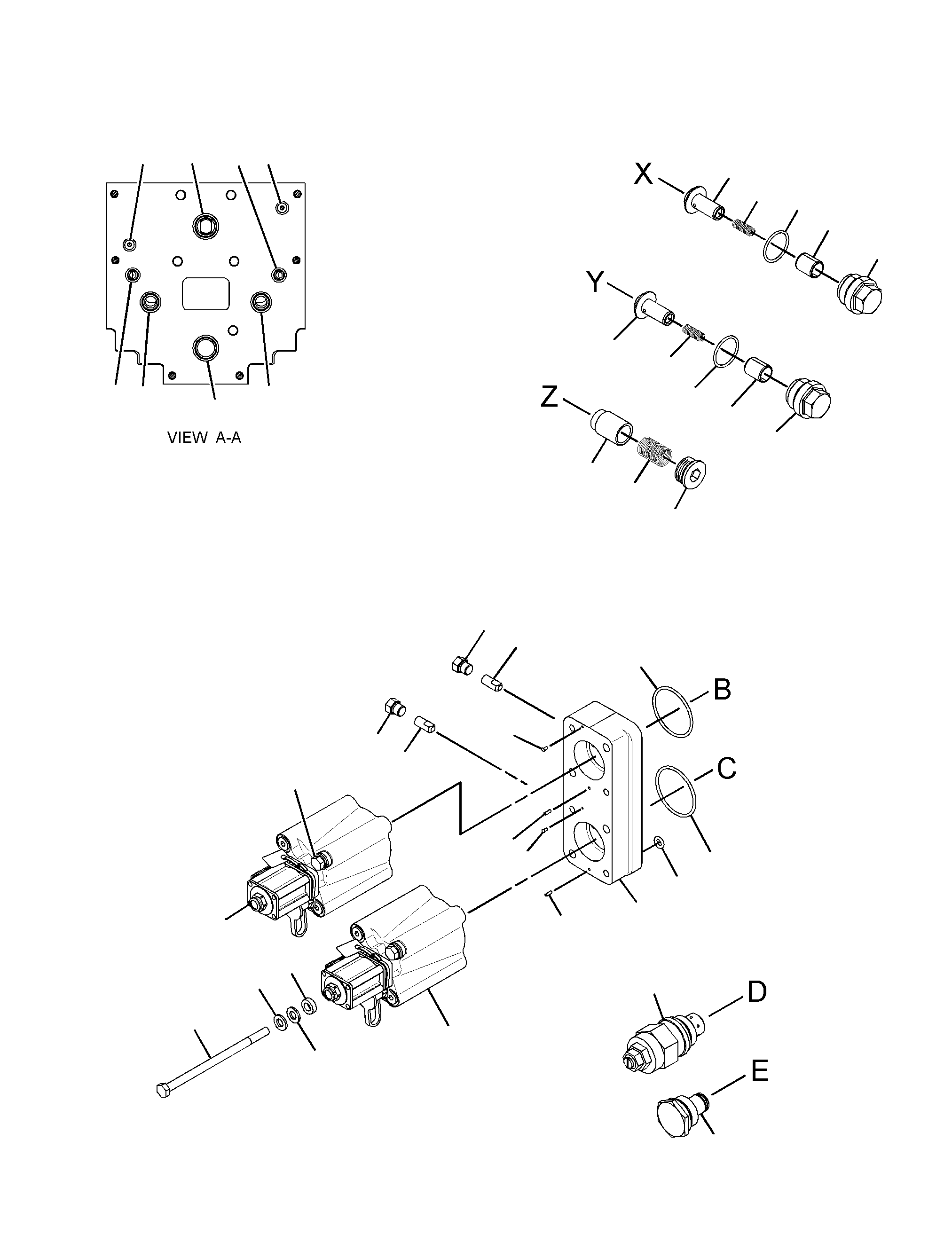

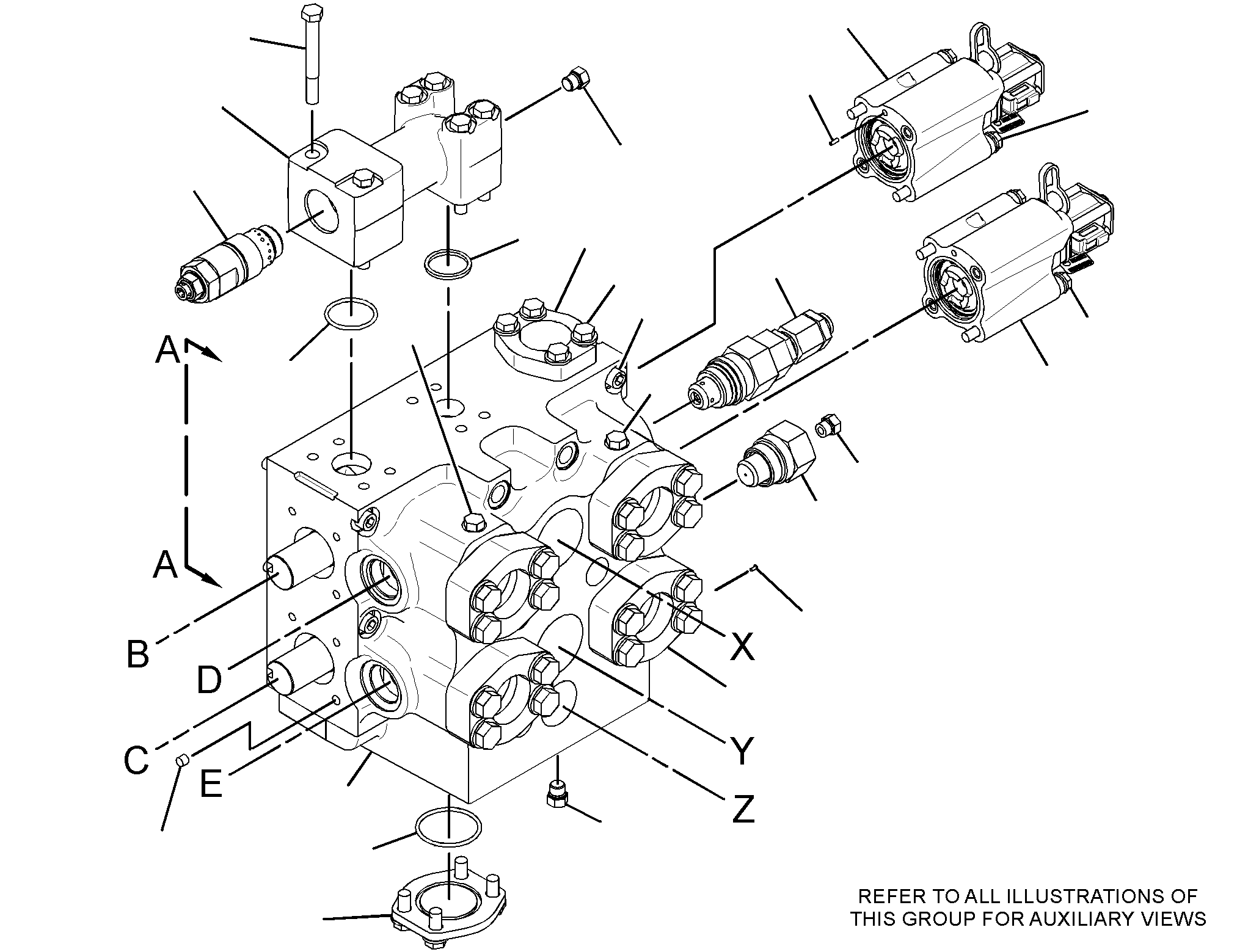

284-6630 VALVE GP-CONTROL -2-FUNCTION, RHS/N RM51-UP
Group No: 284-6630
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4B4158 | 1 SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 6E1291 | 2 VALVE-CONTROL | 1 | |
| 6E3993 | 3 PLUG AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 1480767 | RING-SPLIT | 1 | |
| 7J7852 | 4 SPRING | 1 | |
| 9L9188 | 5 SPRING-VALVE | 2 | |
| 9R5008 | 6 SPACER (11X20X6-MM THK) | 8 | |
| 1024156 | 7 VALVE-CONTROL | 2 | |
| 1128244 | 8 HOUSING | 1 | |
| 1138263 | 9 PISTON | 2 | |
| 1170159 | 10 VALVE GP-RELIEF (MAIN) | 1 | |
| 4237704 | 11 VALVE GP-RELIEF (LINE, TILT) | 1 | |
| 1607439 | 12 VALVE GP-MAKEUP | 1 | |
| 2176719 | 13 ACTUATOR GP-PILOT CONTROL (LIFT, LOWER) | 2 | |
| 2176720 | 14 ACTUATOR GP-PILOT CONTROL (HOIST CONTROL VALVE) | 2 | |
| 4237712 | 15 VALVE GP-RELIEF | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 3549163 | 16 VALVE GP-CONTROL | 1 | |
| 1P3705 | 17 SEAL-RECTANGULAR | 1 | |
| 2857940 | 19 MANIFOLD | 1 | |
| 1024158 | 20 PLUG AS | 2 | |
| 3G5003 | 20A BUSHING | 1 | |
| 1024157 | PLUG | 1 | |
| 1488406 | 21 PLUG AS | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 9S9334 | PLUG (1-5/16-12-THD) | 1 | |
| 3664699 | 22 PLUG AS | 9 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3603692 | PLUG (9/16-18-THD) | 1 | |
| 3664695 | 23 PLUG AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3603679 | PLUG-CONNECTOR (9/16-18-THD) | 1 | |
| 1H5728 | 24 SEAL-O-RING | 2 | |
| 1H8171 | 25 SEAL-O-RING | 2 | |
| 1P3703 | 26 SEAL-RECTANGULAR | 2 | |
| 1P3704 | 27 SEAL-RECTANGULAR | 1 | |
| 1P4579 | 28 FLANGE-HALF | 2 | |
| 2J2668 | 29 COVER-FLANGE | 1 | |
| 2J6274 | 30 SEAL-O-RING | 4 | |
| 2S4078 | 31 SEAL-O-RING | 2 | |
| 3J2903 | 32 COVER | 1 | |
| 4J0523 | 33 SEAL-O-RING | 1 | |
| 4J0524 | 34 SEAL-O-RING | 1 | |
| 4J0527 | 35 SEAL-O-RING | 1 | |
| 4J5573 | 36 SEAL-O-RING | 1 | |
| 5P8077 | 37 FLANGE-HALF | 8 | |
| 7X2546 | 38 BOLT (M10X1.5X180-MM) | 4 | |
| 7X2549 | 39 BOLT (M12X1.75X100-MM) | 6 | |
| 7X2607 | 40 BOLT (M12X1.75X130-MM) | 6 | |
| 8L6565 | 41 PIN-SPRING | 4 | |
| 8T4121 | 42 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 9X8257 | 43 WASHER (17.5X30X3.5-MM THK) | 16 | |
| 8T4139 | 44 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4140 | 45 BOLT (M16X2X60-MM) | 16 | |
| 8T4184 | 46 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4223 | 47 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T5436 | 48 BOLT (M10X1.5X130-MM) | 4 | |
| 8T6757 | 49 PLUG-PIPE | 1 |
