System And Components

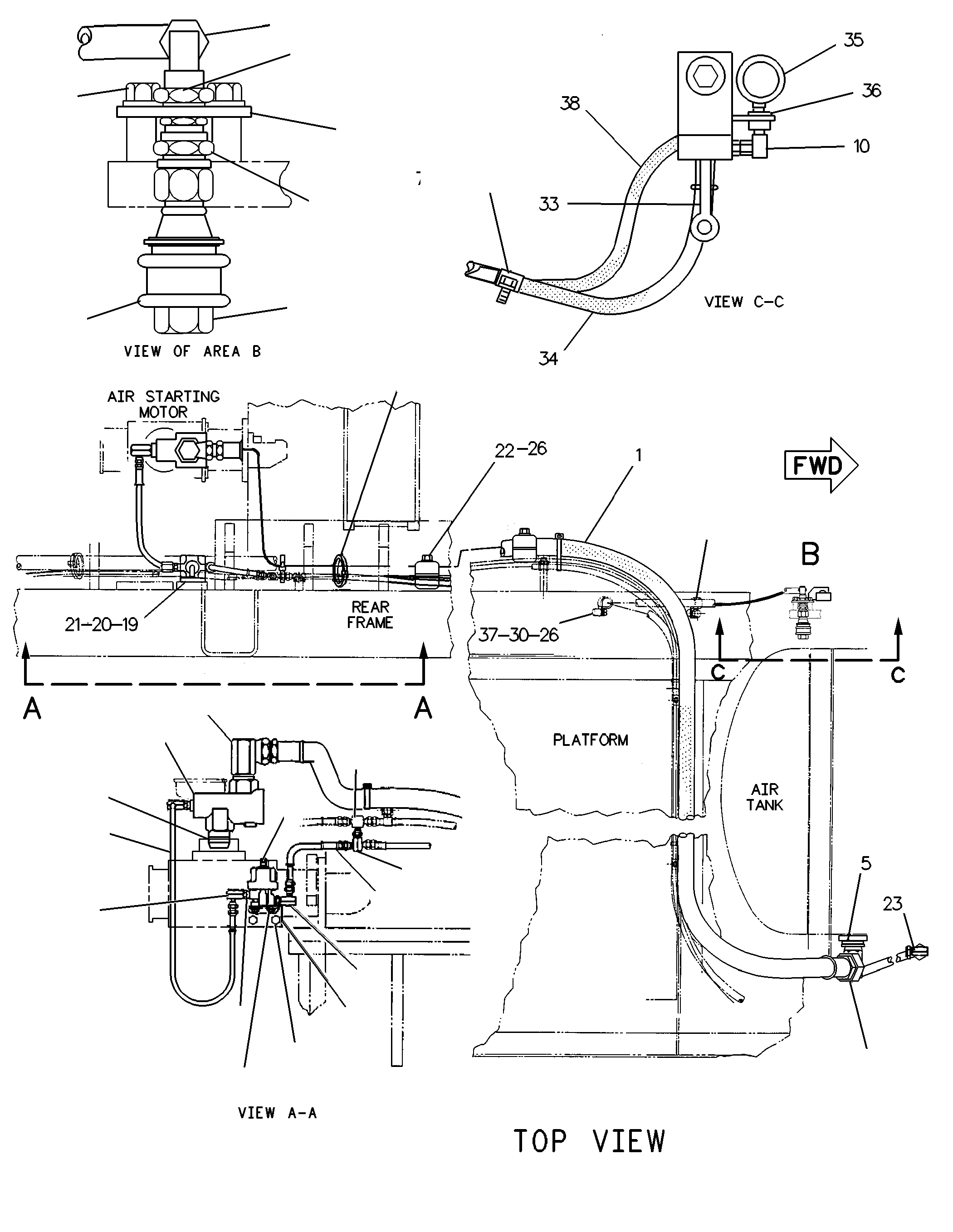

8X-6016 CONTROL GP-AIR STARTINGS/N 9YF26-55
Group No: 8X-6016
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8X5817 | 1 HOSE AS | 1 | |
| 5B7661 | 2 FITTING | 1 | |
| 0394966 | 3 ADAPTER | 2 | |
| 4D5371 | 4 CLIP | 3 | |
| 5B7660 | 5 BUSHING-REDUCER | 1 | |
| 1L0766 | 6 ELBOW | 2 | |
| 4S6668 | 7 CLIP (TAB) | 3 | |
| 4N3411 | 8 VALVE GP-RELAY | 1 | |
| 3B6552 | 9 ELBOW-PIPE | 1 | |
| 5H4778 | 10 ELBOW | 3 | |
| 8X5816 | 11 HOSE AS | 1 | |
| 8X5820 | 12 BRACKET | 1 | |
| 8T4179 | 13 BOLT (M12X1.75X20-MM) | 2 | |
| 8T4223 | 14 WASHER-HARD (13.5X25.5X3-MM THK)(25.5MM OD) | 2 | |
| 8T4205 | 15 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8T9364 | 16 BOLT (1/4-20X0.625-IN) | 2 | |
| 4D2847 | 17 HOSE AS | 1 | |
| 3S6115 | 18 TEE | 1 | |
| 5T4434 | 19 VALVE AS-SOLENOID | 1 | |
| 7D6081 | VALVE AS | 1 | |
| 7N9737 | 20 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 5D5569 | 21 CONNECTOR | 1 | |
| 5P7466 | 22 CLIP (SLOT) | 2 | |
| 5P7467 | CLIP (TAB) | 2 | |
| 8T4195 | BOLT (M10X1.5X30-MM) | 2 | |
| 2H3940 | 23 ELBOW | 1 | |
| 0026453 | 24 ELBOW | 1 | |
| 8D9423 | 25 COUPLING | 1 | |
| 8T4121 | 26 WASHER-HARD (11X21X2.5-MM THK)(21MM OD) | 8 | |
| 0026454 | 27 CONNECTOR | 1 | |
| 7D5208 | 28 FITTING (QUICK DISCONNECT, FEMALE) | 1 | |
| 4D9976 | 29 UNION | 1 | |
| 8T4136 | 30 BOLT (M10X1.5X25-MM) | 6 | |
| 7I5513 | 31 PLATE AS | 1 | |
| 7D5207 | 32 PLUG | 1 | |
| 7D5206 | 33 CAP-DUST | 1 | |
| 8X5815 | 34 HOSE AS | 1 | |
| 3L9157 | 35 GAUGE-PRESSURE | 1 | |
| 9M8662 | 36 COUPLING | 1 | |
| 6D4244 | 37 CLIP (LOOP) | 1 | |
| 6D9856 | 38 HOSE AS | 1 |
