System And Components

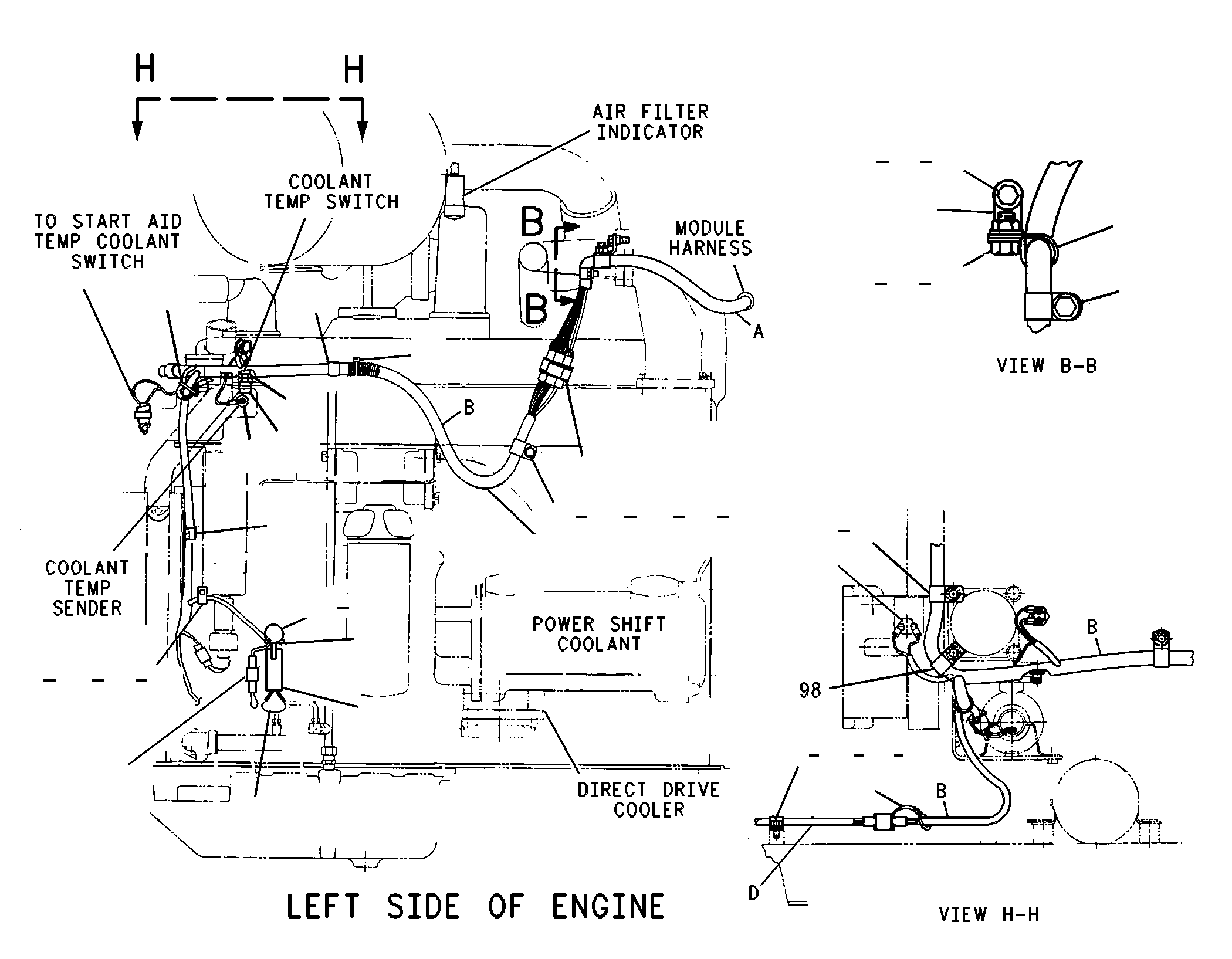

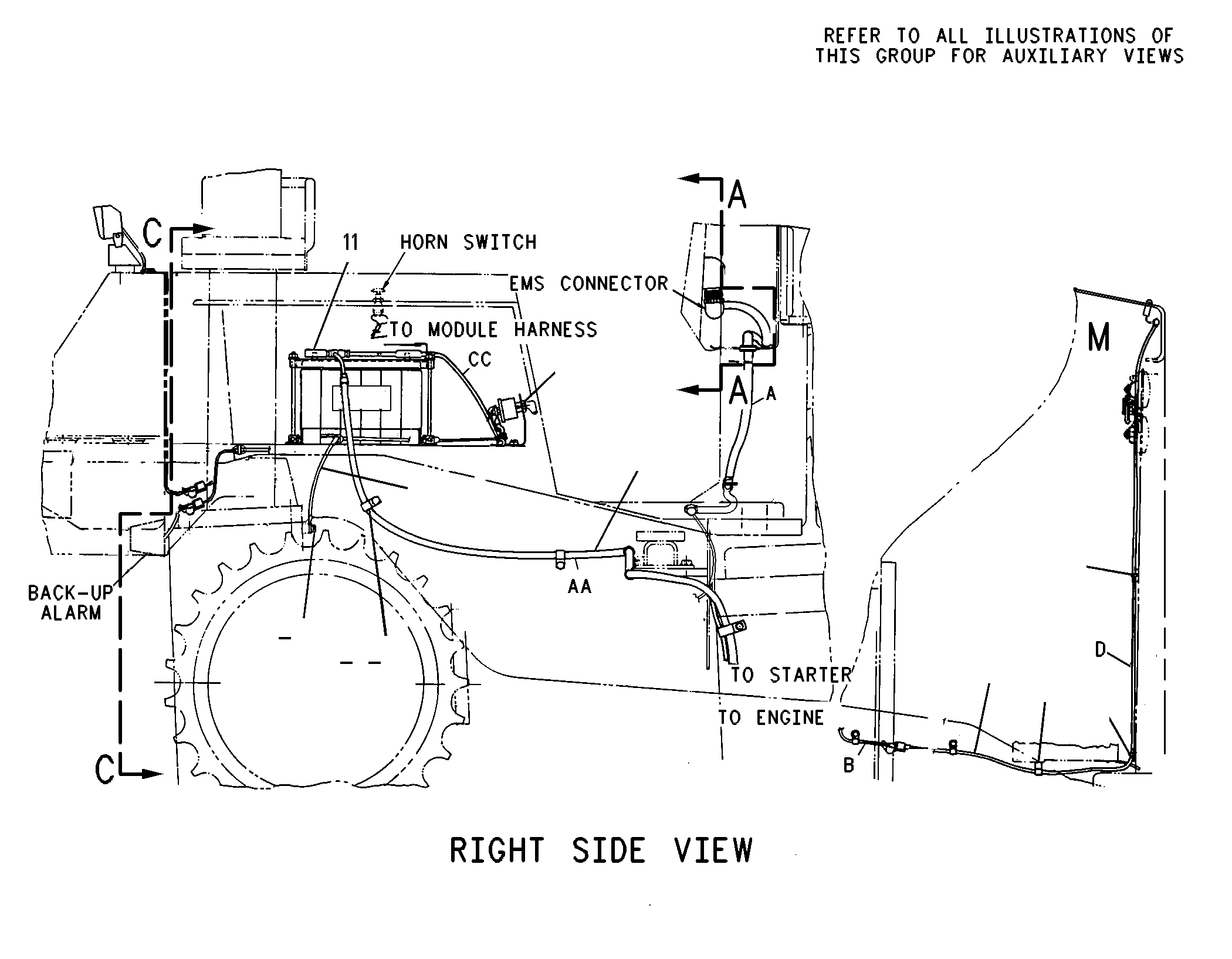

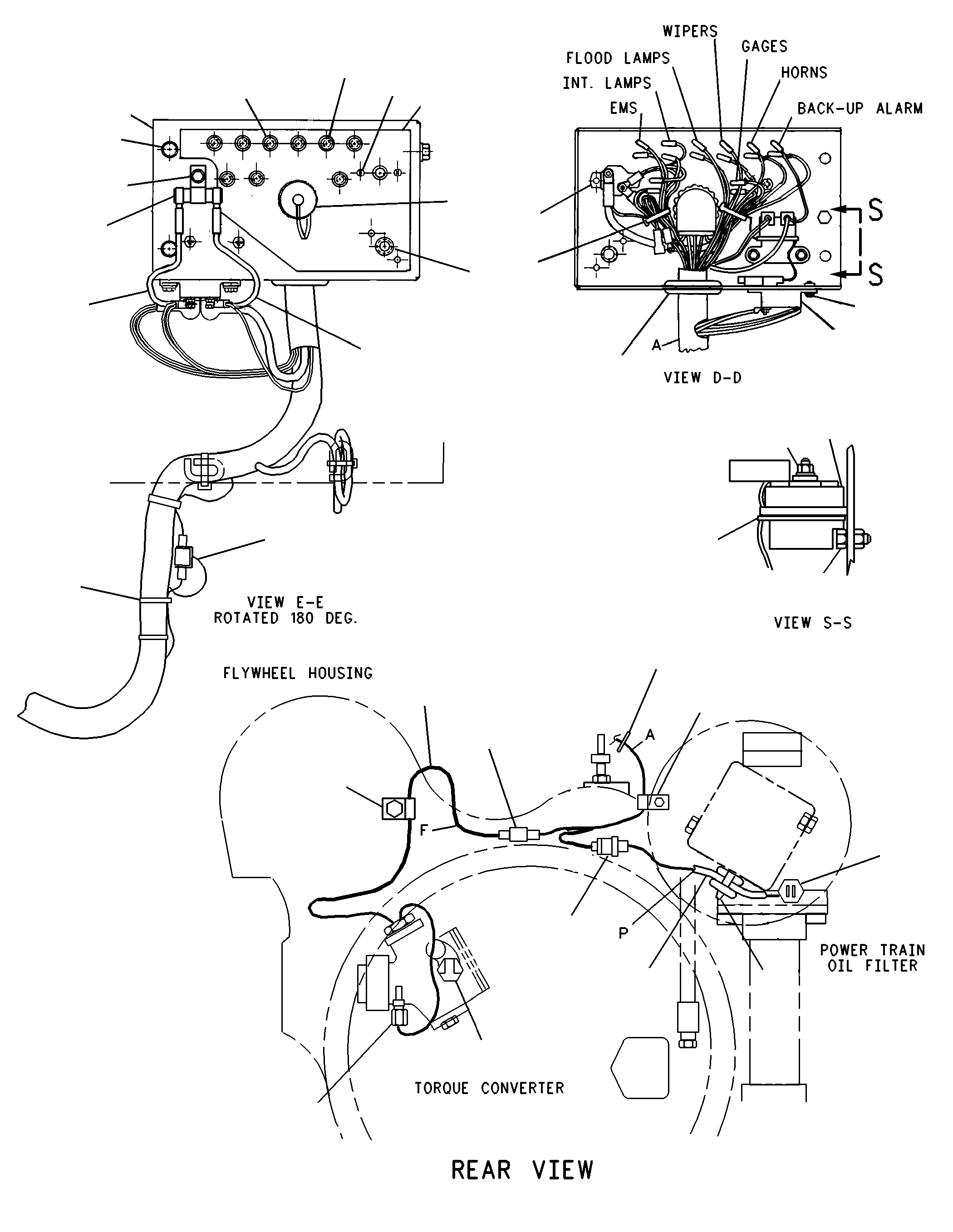

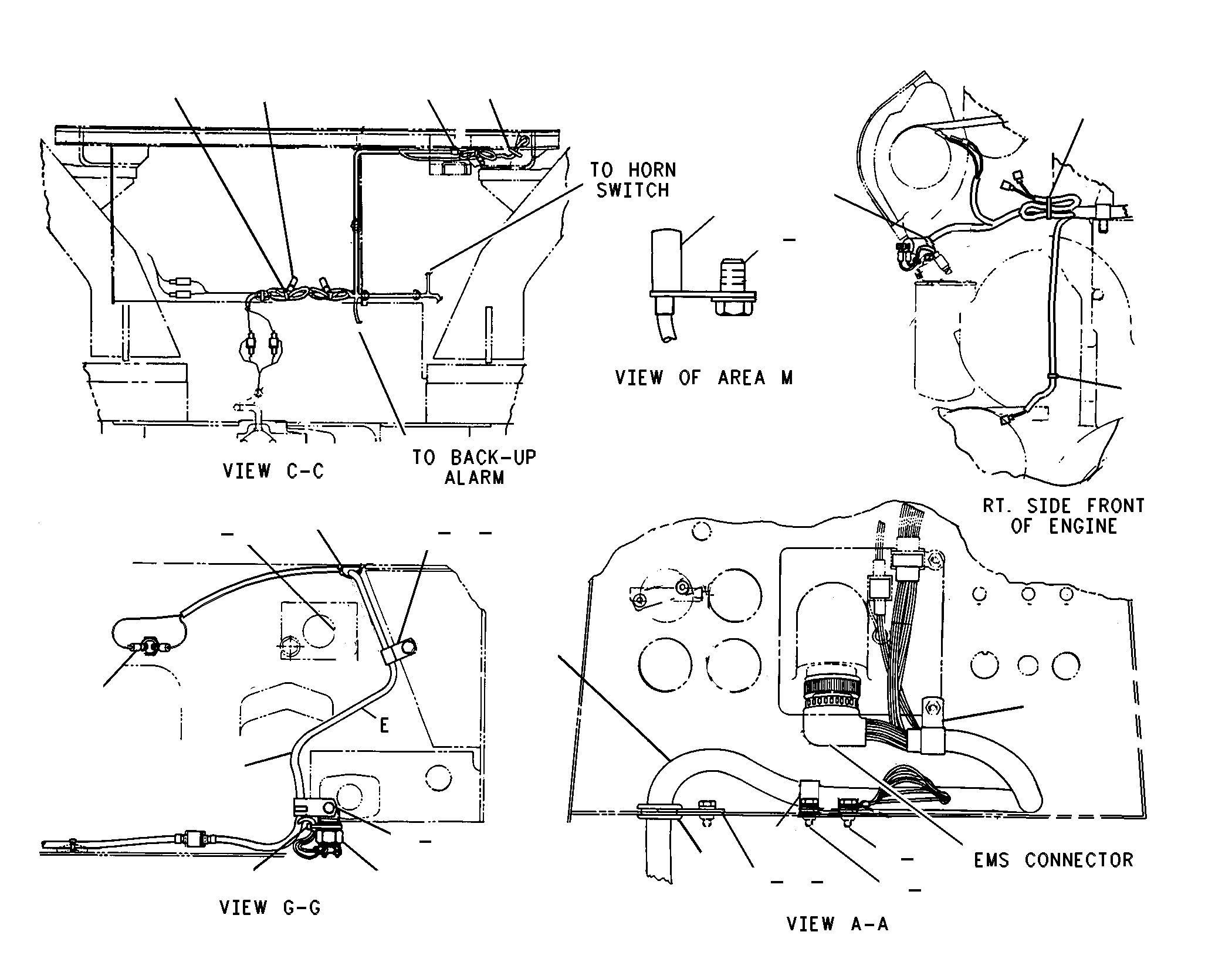

9U-8980 BATTERY & WIRING GPS/N 9KJ1-849
Group No: 9U-8980
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N0718 | 1 SWITCH GP-DISCONNECT | 1 | |
| 3W2318 | BRACKET | 1 | |
| 3P2182 | 2 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(96-CM) | ||
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 2 | |
| 0375197 | BOOT | 1 | |
| 7K1181 | 3 STRAP-CABLE | 8 | |
| 5G9496 | 4 HARNESS AS | 1 | |
| 1H5166 | 5 CLIP | 1 | |
| 8T4896 | 6 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5P8167 | 7 BOLT (3/8-16X0.625-IN) | 2 | |
| 5P1075 | 8 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 6D4244 | 9 CLIP (LOOP) | 1 | |
| 5G8921 | 10 CABLE AS | 1 | |
| 5P0761 | CABLE (00-GA, RED)(295-CM) | ||
| 5P0695 | CONDUIT (268-CM) | ||
| 8T2225 | TUBE-HEAT SHRINK (25.4-MM DIA)(HEAT SHRINK) | ||
| 1S4915 | LINER (CONDUIT) | 2 | |
| 3S2093 | STRAP-CABLE | 2 | |
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9G0002 | 11 COVER AS-TERMINAL (RED) | 1 | |
| 8K8854 | TERMINAL-BATTERY (POSITIVE, LH) | 1 | |
| 4J8265 | 12 NUT (3/8-16-THD) | 4 | |
| 9W4661 | ROD | 4 | |
| 5P1075 | 13 WASHER-HARD (10.2X22.5X3-MM THK) | 10 | |
| 5S7382 | 14 BOLT (3/8-16X1.375-IN) | 4 | |
| 3W5522 | 15 BRACKET AS | 2 | |
| 3B4615 | 16 PIN-COTTER | 4 | |
| 5G9495 | 17 CAP | 1 | |
| 3W5525 | 18 HOLD-DOWN AS | 1 | |
| 0339412 | RIVET | 6 | |
| 3T5760 | 19 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 9V2098 | 20 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(28-CM) | ||
| 9G0005 | 21 COVER AS-TERMINAL (BLACK) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 8T9756 | 22 TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 9G0002 | COVER AS-TERMINAL (RED) | 1 | |
| 9M8406 | 23 CLIP (LOOP) | 2 | |
| 2A7096 | 24 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(96.5-CM) | ||
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 7K1181 | 25 STRAP-CABLE | 1 | |
| 8T2502 | 26 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4896 | 27 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 3T3048 | 28 CLIP AS | 3 | |
| 5S7379 | 29 BOLT (3/8-16X0.875-IN) | 2 | |
| 5P8167 | 30 BOLT (3/8-16X0.625-IN) | 3 | |
| 6D4244 | 31 CLIP (LOOP) | 3 | |
| 9G9150 | 32 CLIP | 1 | |
| 5M3062 | 33 BOLT (3/8-16X0.75-IN) | 1 | |
| 9U9456 | 34 HARNESS AS | 1 | |
| 9G9813 | 35 ALARM GP (24-VOLT) | 1 | |
| 5F9757 | 36 GROMMET | 1 | |
| 9M8406 | 37 CLIP (LOOP) | 2 | |
| 8E1117 | 38 HARNESS AS | 1 | |
| 7K1181 | 39 STRAP-CABLE | 22 | |
| 3T3048 | 40 CLIP AS | 2 | |
| 9G9150 | 41 CLIP | 1 | |
| 5S7379 | 42 BOLT (3/8-16X0.875-IN) | 1 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 4P7581 | CLIP (LADDER) | 1 | |
| 3T3045 | 43 CLIP AS | 1 | |
| 3T3047 | 44 CLIP AS | 1 | |
| 4P7581 | 45 CLIP (LADDER) | 2 | |
| 3S2093 | 46 STRAP-CABLE | 1 | |
| 7K1181 | 47 STRAP-CABLE | 19 | |
| 8N2248 | 48 SWITCH AS-TEMPERATURE (HYD OIL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 4P7581 | 49 CLIP (LADDER) | 2 | |
| 5G9495 | 50 CAP | 2 | |
| 4L6454 | 51 BOLT (3/8-16X1-IN) | 2 | |
| 8E1014 | 52 RETAINER | 1 | |
| 9M4972 | 53 CLIP (LOOP) | 2 | |
| 5M3062 | 54 BOLT (3/8-16X0.75-IN) | 2 | |
| 5P8167 | 55 BOLT (3/8-16X0.625-IN) | 1 | |
| 8T4896 | 56 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 9X7781 | 57 SWITCH GP-BYPASS | 1 | |
| 9U9407 | 58 HARNESS AS | 1 | |
| 4P7428 | 59 CLIP (LADDER) | 1 | |
| 6Y7376 | 60 HARNESS AS | 1 | |
| 6P6641 | 61 GROMMET | 1 | |
| 3T8624 | 62 HARNESS AS | 1 | |
| 3T3045 | 63 CLIP AS | 1 | |
| 7K1181 | 64 STRAP-CABLE | 7 | |
| 1H5166 | 65 CLIP | 1 | |
| 8T4896 | 66 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 6T2934 | 67 HARNESS AS | 1 | |
| 5P9085 | 68 CLIP (LOOP) | 2 | |
| 9G3341 | 69 SWITCH AS-TEMPERATURE (OIL FILTER CHANGE IND) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3K0360 | 70 SEAL-O-RING | 2 | |
| 3T3048 | 71 CLIP AS | 2 | |
| 7X6416 | 72 RESISTOR | 1 | |
| 8T4896 | 73 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 8N3844 | 74 SENDER-TEMPERATURE (POWER TRAIN OIL GAUGE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3T5825 | 75 SWITCH AS (POWER TRAIN OIL TEMP EMS) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 9M5711 | 76 PLUG-PROTECTION | 1 | |
| 9G4360 | 77 CAP-CONNECTOR | 1 | |
| 8N1537 | LOCKWASHER | 1 | |
| 8N1536 | NUT (1-5/8-18-THD) | 1 | |
| 5P8167 | 78 BOLT (3/8-16X0.625-IN) | 3 | |
| 6I9474 | 79 PANEL AS | 1 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 5 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 2 | |
| 8M8948 | 80 FUSE (15-AMPERE) | 2 | |
| 4K5122 | 81 HOLDER AS-FUSE | 9 | |
| 7N2867 | CAP-FUSE HOLDER | 1 | |
| 6T8115 | NUT (1/2-24-THD) | 1 | |
| 3K8782 | 82 FUSE (10-AMPERE) | 6 | |
| 3D9799 | 83 SCREW-MACHINE (8-32X0.875-IN) | 2 | |
| 6I9472 | 84 FILM-PANEL (OPERATOR CONTROLS) | 1 | |
| 9S0173 | 85 CIRCUIT BREAKER AS (60-AMPERE) | 1 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 3S2093 | 86 STRAP-CABLE | 2 | |
| 8D1470 | 87 GROMMET | 1 | |
| 6T0751 | 88 BLOCK AS-TERMINAL | 1 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8T6335 | NUT (5/16-18-THD) | 2 | |
| 4M5281 | 89 BOLT (1/4-20X0.75-IN) | 2 | |
| 5S7349 | 90 BOLT (1/4-20X0.5-IN) | 3 | |
| 5P4115 | WASHER-HARD (7.2X19X2-MM THK) | 2 | |
| 3E0075 | 91 SWITCH GP-MAGNETIC (24-VOLT) | 1 | |
| 5C2890 | NUT (M6X1-THD) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 3E3364 | RECEPTACLE (2-PIN) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 9X1386 | SLEEVE | ||
| 8E0937 | 92 WIRE AS | 1 | |
| 8E0936 | 93 WIRE AS | 1 | |
| 4K8864 | 94 CLIP (LOOP) | 1 | |
| 8T4205 | 95 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 5C2890 | 96 NUT (M6X1-THD) | 2 | |
| 5P1075 | 97 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 9M8406 | 98 CLIP (LOOP) | 1 | |
| 8N1693 | 99 SWITCH AS-TEMPERATURE (STARTING AID ARMING) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 1084512 | 100 HARNESS AS-ENGINE | 1 | |
| 1S0994 | 101 CLIP (LOOP) | 1 | |
| 3T3047 | 102 CLIP AS | 3 | |
| 4K1188 | 103 TUBE | 1 | |
| 7X0277 | 104 BOLT (5/16-18X3.75-IN) | 1 | |
| 5P4116 | 105 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 7K1181 | 106 STRAP-CABLE | 7 | |
| 6V3966 | 107 FITTING AS | 1 | |
| 6V0852 | CAP-DUST | 1 | |
| 7N9785 | 108 SWITCH AS-TEMPERATURE (COOLANT AID) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3B7255 | 109 BUSHING-REDUCER | 1 | |
| 6N5926 | 110 SENDER AS-TEMPERATURE (COOLANT) | 1 | |
| 3T3048 | 111 CLIP AS | 1 | |
| 4P7581 | 112 CLIP (LADDER) | 7 | |
| 5K0906 | 113 BOLT (5/16-18X0.625-IN) | 1 | |
| 3T3045 | 114 CLIP AS | 1 | |
| 5S7379 | 115 BOLT (3/8-16X0.875-IN) | 1 | |
| 1S0994 | CLIP (LOOP) | 1 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 9L1775 | 116 BRACKET | 1 | |
| 8T2502 | 117 BOLT (3/8-16X1.125-IN) | 1 | |
| 6V8801 | 118 NUT (3/8-16-THD) | 2 | |
| 8T4896 | 119 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 5P8167 | 120 BOLT (3/8-16X0.625-IN) | 3 | |
| 7T0988 | 121 SWITCH AS-PRESSURE (ENGINE OIL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 2D7325 | 122 TEE-PIPE | 1 | |
| 3T1480 | 123 WIRE AS | 1 | |
| 6D4244 | 124 CLIP (LOOP) | 2 | |
| 8C3121 | 125 BOLT (5/16-18X1.5-IN) | 1 | |
| 2B0941 | 126 SPACER (10.5X19X19-MM THK) | 1 | |
| 5P4116 | 127 WASHER-HARD (8.8X20.5X2-MM THK) | 3 | |
| 5K0906 | 128 BOLT (5/16-18X0.625-IN) | 2 | |
| 3T3048 | 129 CLIP AS | 1 | |
| 6T2217 | 130 RESISTOR AS (STARTER DIAGNOSTIC) | 1 | |
| 5P5677 | WIRE (18-GA, BLACK) | ||
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7K1181 | 131 STRAP-CABLE | 4 | |
| 5P9085 | 132 CLIP (LOOP) | 1 | |
| 7P6682 | 133 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(40CM) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 5M3062 | 134 BOLT (3/8-16X0.75-IN) | 1 | |
| 5P1075 | WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 6T2722 | 135 BRACKET AS | 2 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 1 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 4P7428 | 136 CLIP (LADDER) | 1 | |
| 5P2228 | BOLT (1/2-13X1-IN) | 1 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 9W3187 | 137 SWITCH AS-PRESSURE (FUEL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 4D7794 | 138 CLIP | 2 | |
| 6V9673 | 139 SCREW-MACHINE (M5X0.8X12-MM) | 1 | |
| 4B4274 | WASHER (5.5X13X1.2-MM THK) | 1 | |
| 8T4896 | 140 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 5S7379 | 141 BOLT (3/8-16X0.875-IN) | 3 |
