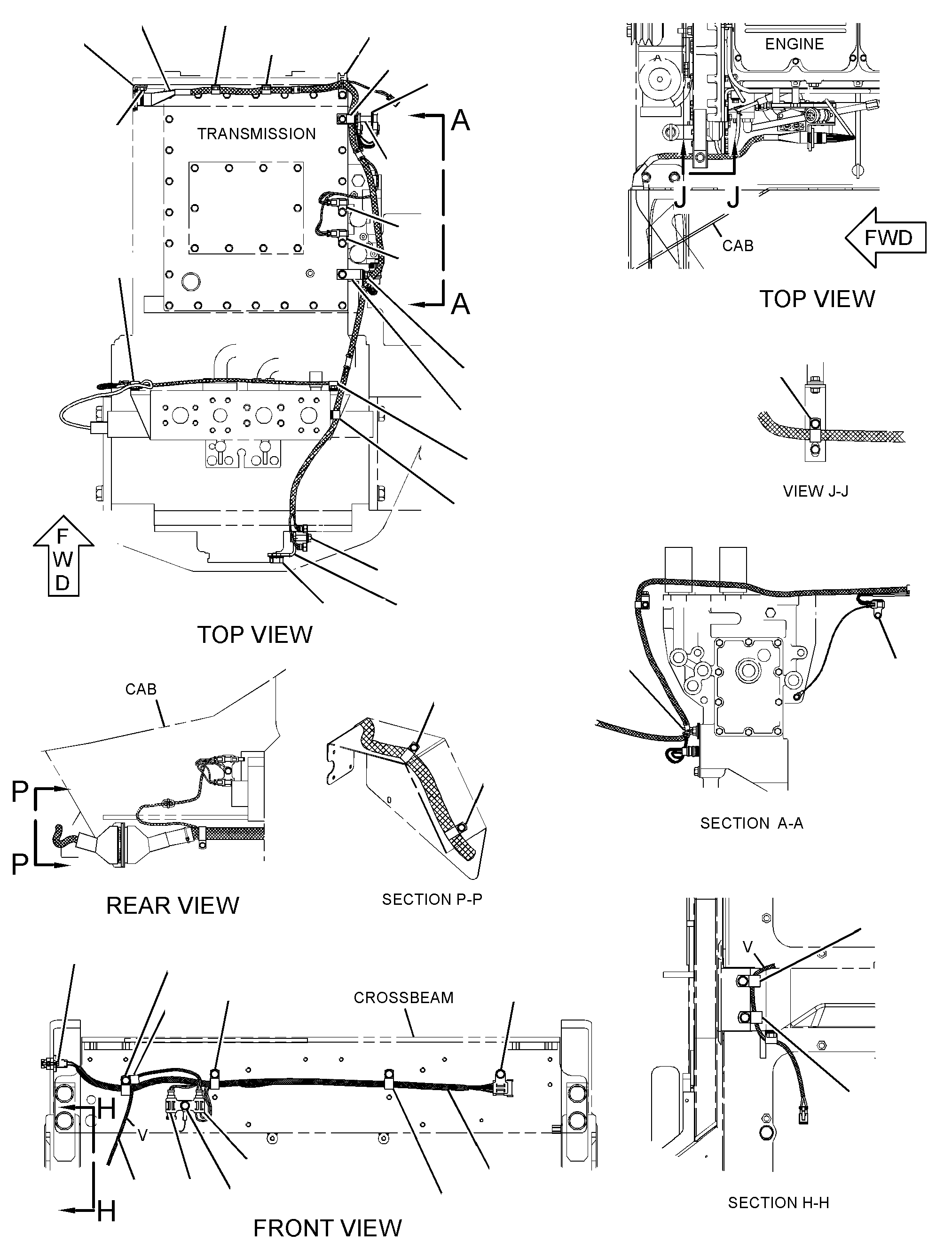

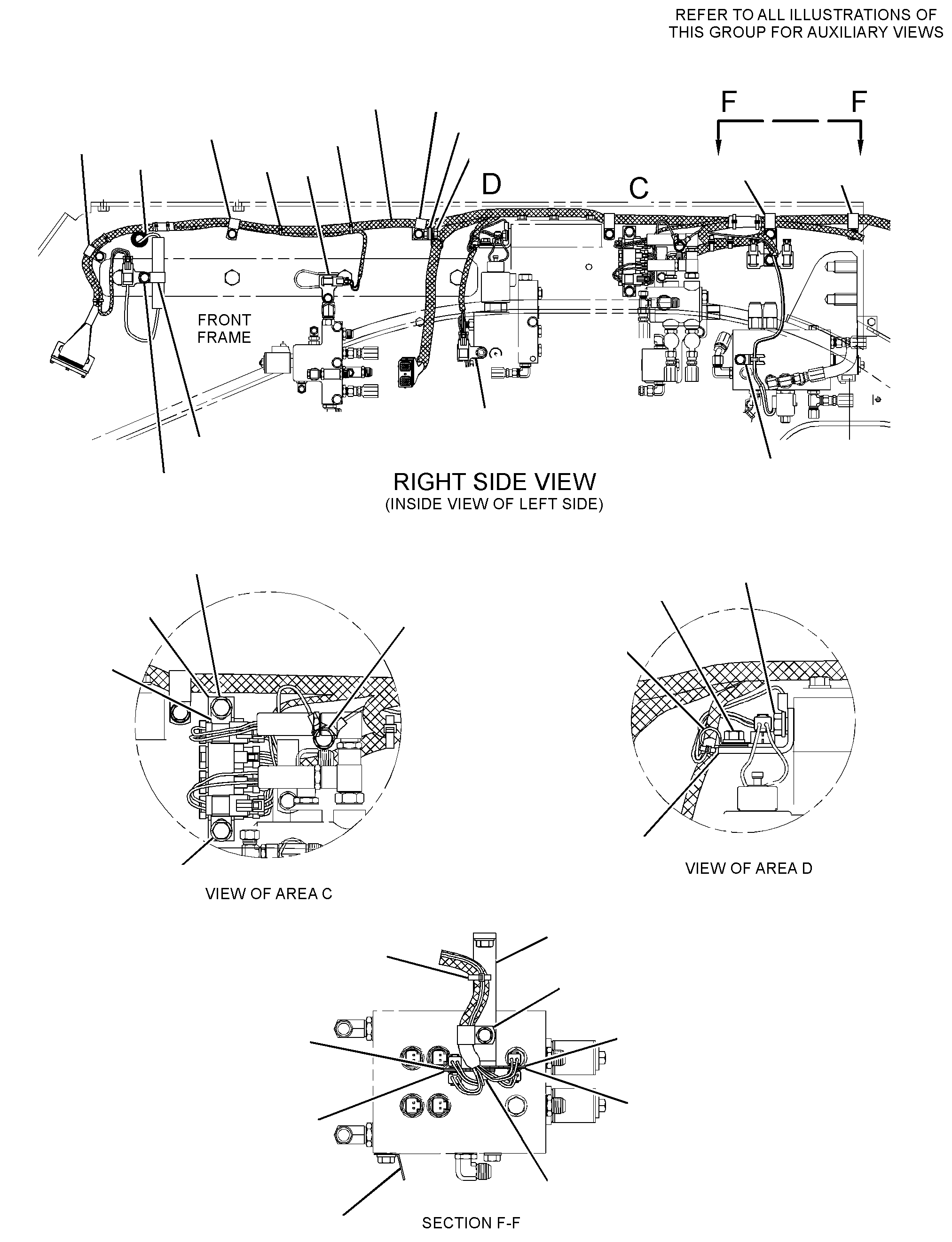

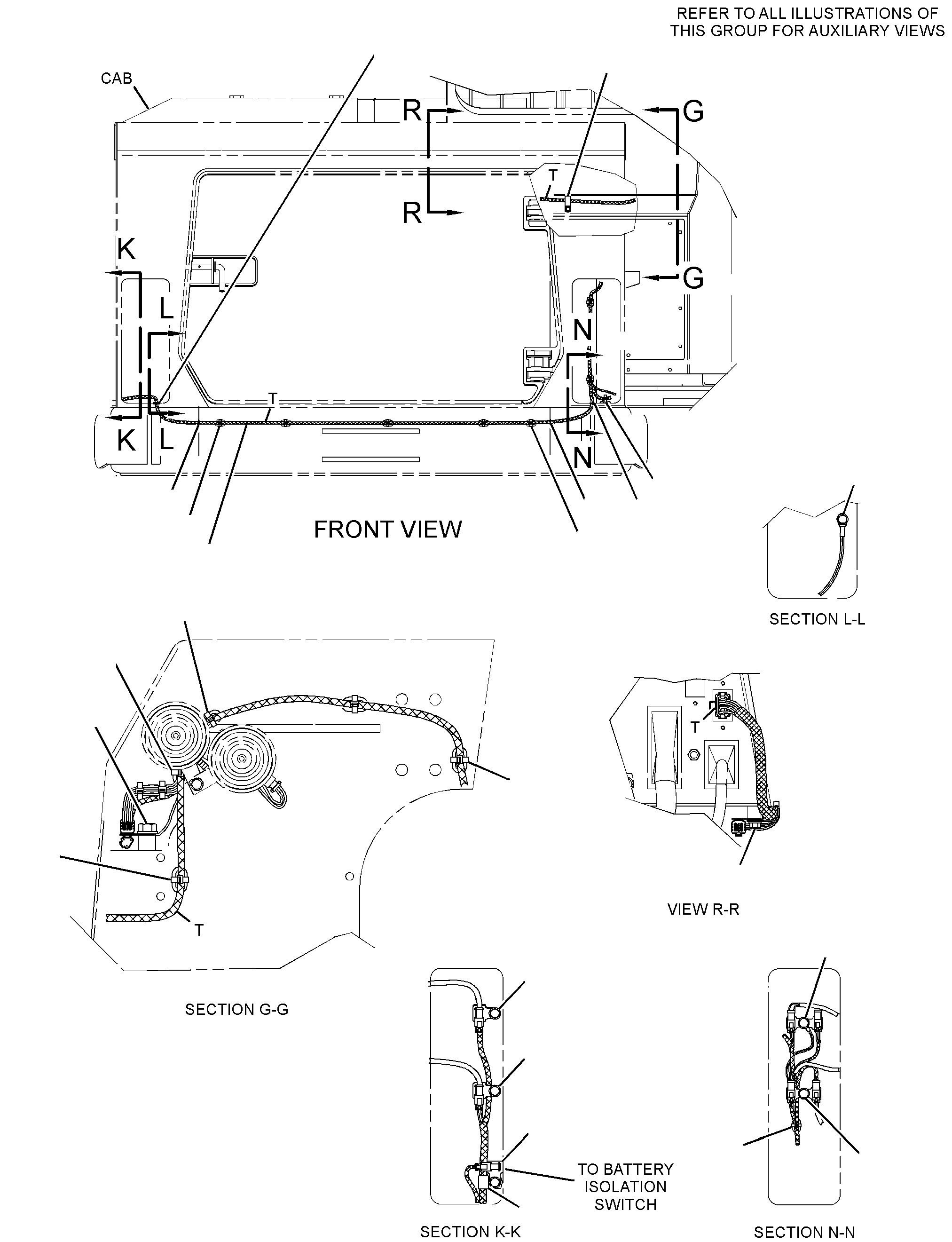

268-1070 WIRING GP-FRONTS/N CXM1-450

Group No: 268-1070
Part NumberPart NameQty
26425011 HARNESS AS-REAR CHASSIS1
7X08184 BOLT (M8X1.25X45-MM)2
26425025 HARNESS AS-FRONT1
26425036 HARNESS AS-TRANSMISSION1
26425048 HARNESS AS-SWITCH1
1552270KIT-CONNECTING PLUG (2-PIN)2
3214624SLEEVE (80-CM)
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
30913969 HARNESS AS-LIGHTING1
8T419512 BOLT (M10X1.5X30-MM)6
210630813 BRACKET1
1W879515 BRACKET3
116011816 CLIP5
8T646617 BOLT (M10X1.5X60-MM)1
6K080618 STRAP-CABLE21
8T413719 BOLT (M10X1.5X20-MM)32
8T412120 WASHER-HARD (11X21X2.5-MM THK)42
8T413321 NUT (M10X1.5-THD)7
3P541422 GROMMET1
5C289023 NUT (M6X1-THD)2
8T497124 BOLT (M6X1X30-MM)2
9X825625 WASHER (6.6X12X2-MM THK)4
6I141826 SPACER (8.2X12.7X28.7-MM THK)2
8M277027 CLIP (LOOP)4
130530028 CLIP25
5F975729 GROMMET4
7D409231 CLIP1
186969432 BRACKET AS1
2270217PAD1
210630533 BRACKET1
8T418934 BOLT (M8X1.25X20-MM)2
8T422435 WASHER-HARD (8.8X16X2-MM THK)4
9X625836 SCREW-MACHINE (6-32X0.5-IN)3
4W762737 SPACER (11X19X37-MM THK)2
033824838 CLIP (LOOP)2
8T500539 BOLT (M10X1.5X70-MM)1
6D424640 CLIP (LOOP)10
9M840641 CLIP (LOOP)1
1K412942 SPACER (0.423X0.675X0.375-MM THK)2
4P758143 CLIP (LADDER)3
212843844 BRACKET AS1
8T4133NUT (M10X1.5-THD)1
8T499445 WASHER-HARD (20X36.5X3.5-MM THK)1
8T939746 BOLT (3/4-10X1.25-IN)1
4P813448 CLIP (LADDER)1
5P785449 CLIP (LOOP)4
4D779450 CLIP5
8T418652 BOLT (M10X1.5X40-MM)1
7C824653 SPACER (10.5X20X24-MM THK)1
