System And Components

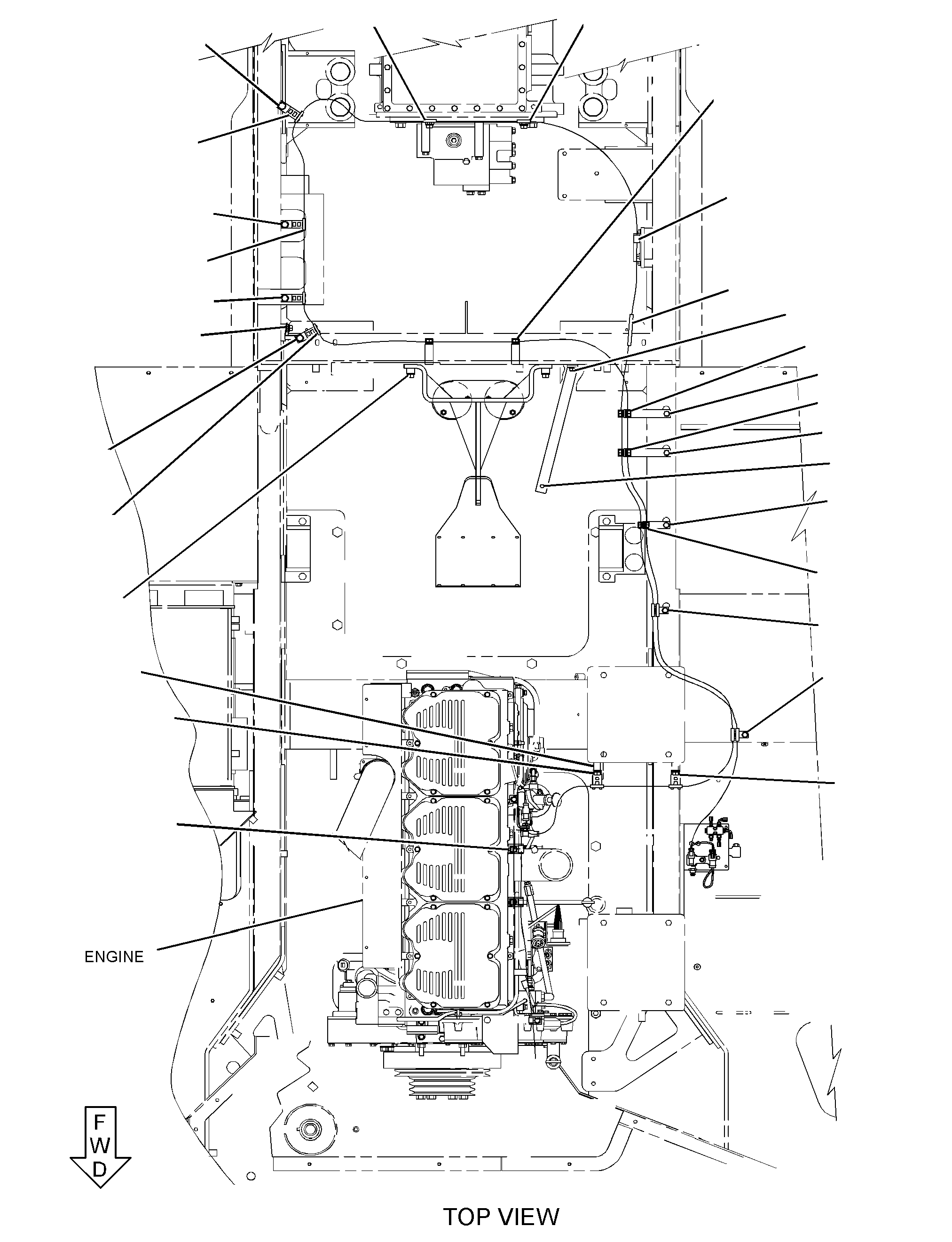

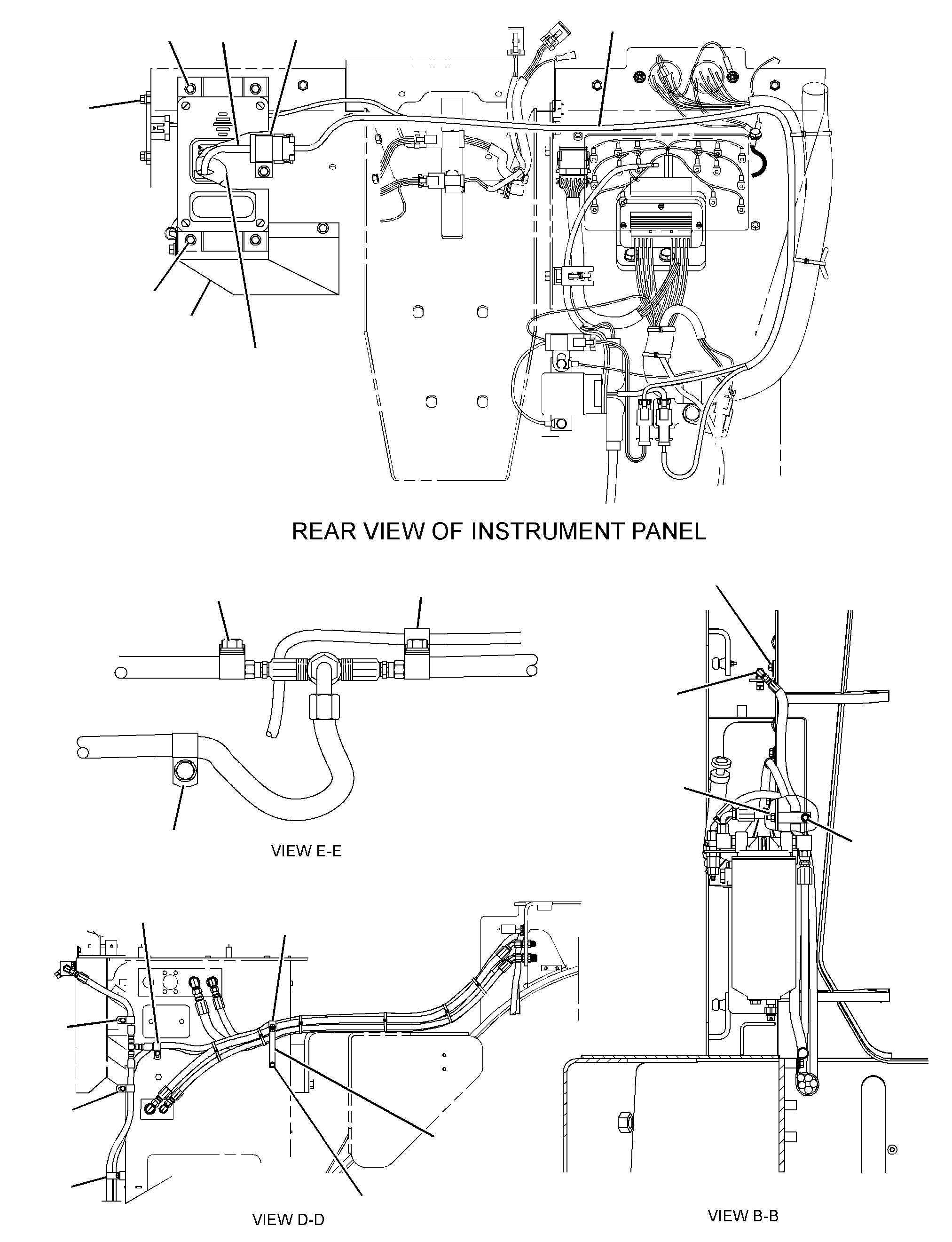

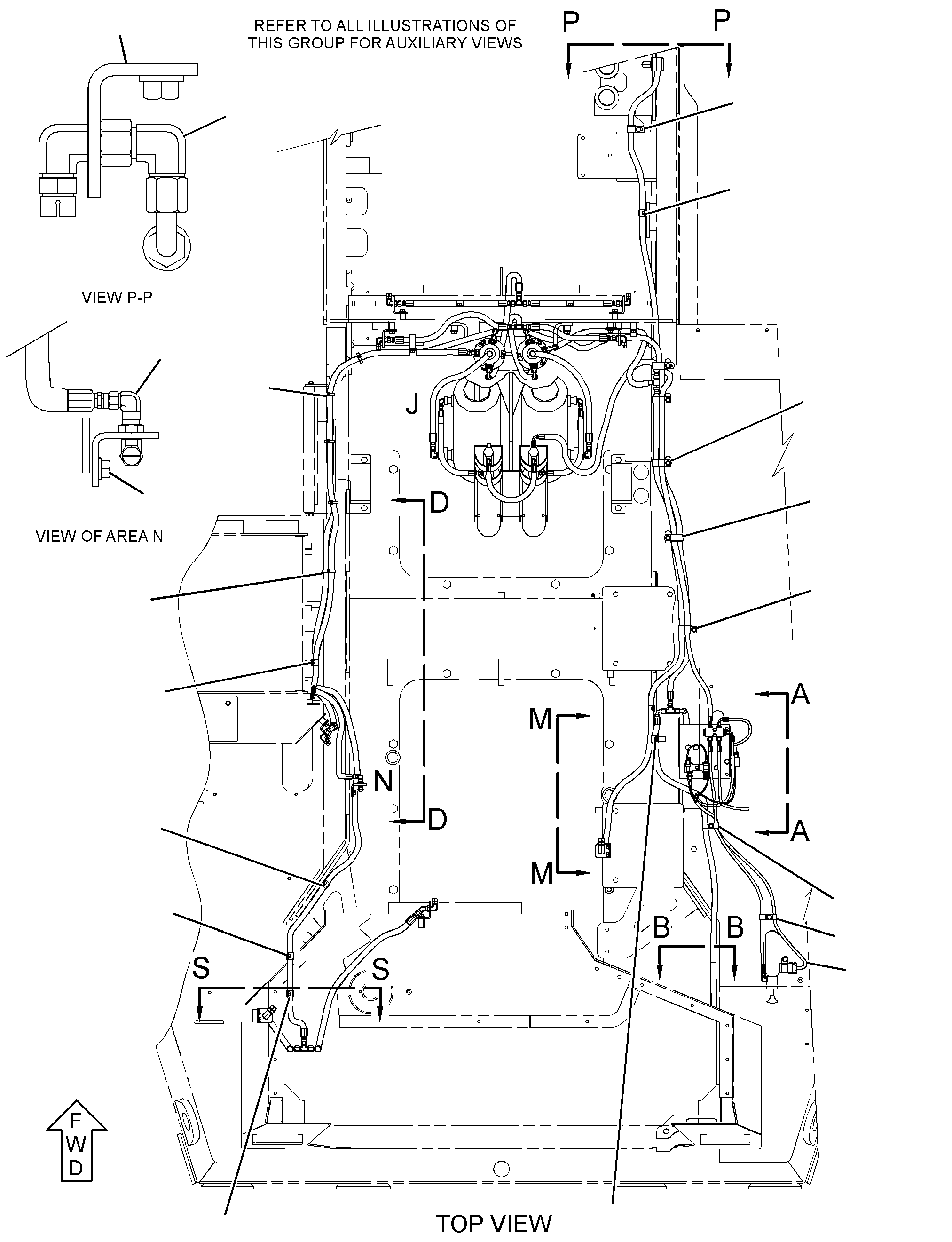

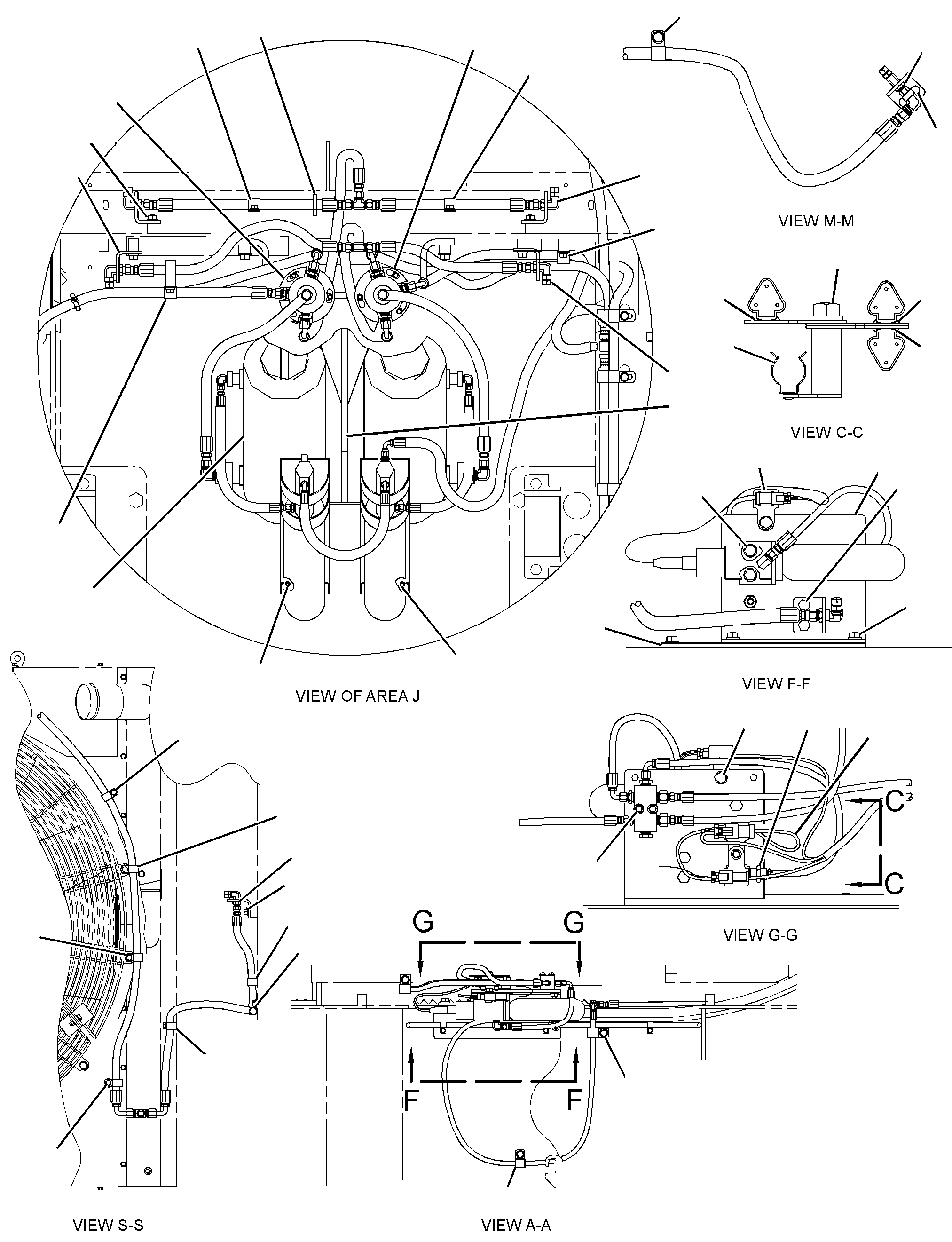

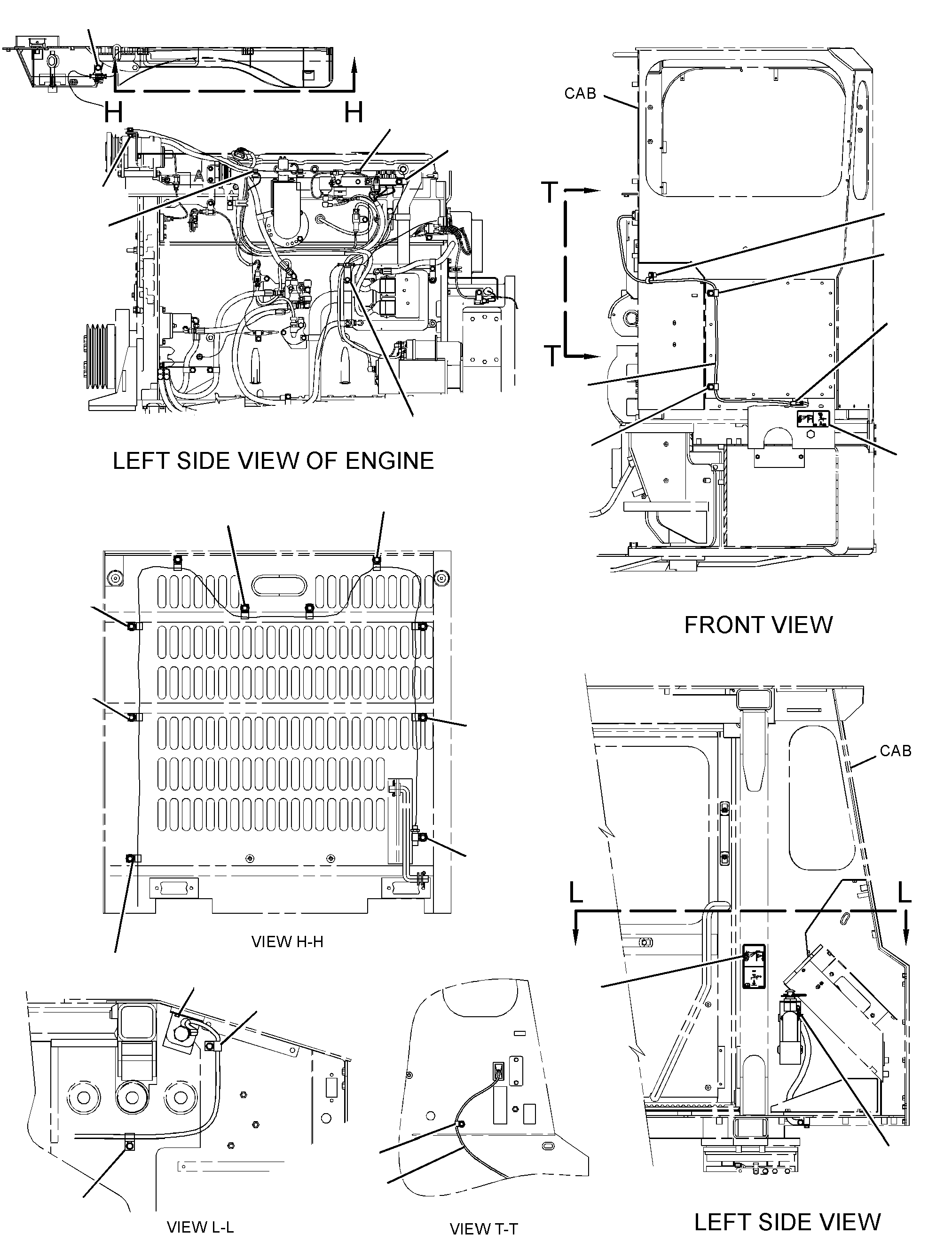

346-2543 LINES GP-FIRE SUPPRESSIONS/N CXM414-UP
Group No: 346-2543
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3462541 | 1 HARNESS AS-WIRING (CAB) | 1 | |
| 2239277 | 2 MOUNT | 12 | |
| 8T4137 | 3 BOLT (M10X1.5X20-MM) | 86 | |
| 8T4121 | 4 WASHER-HARD (11X21X2.5-MM THK) | 122 | |
| 8T2947 | 5 BOLT (M6X1X45-MM) | 2 | |
| 9X8256 | 6 WASHER (6.6X12X2-MM THK) | 4 | |
| 6V3265 | 7 CLIP | 8 | |
| 8T4136 | 8 BOLT (M10X1.5X25-MM) | 10 | |
| 9X3495 | 9 CLIP AS | 1 | |
| 4W7627 | 10 SPACER (11X19X37-MM THK) | 4 | |
| 8T6466 | 11 BOLT (M10X1.5X60-MM) | 4 | |
| 7S1912 | 12 CLIP | 14 | |
| 6D4244 | 13 CLIP (LOOP) | 22 | |
| 8T4133 | 14 NUT (M10X1.5-THD) | 14 | |
| 6N6011 | 15 BRACKET | 3 | |
| 8T4200 | 16 BOLT (M8X1.25X16-MM) | 6 | |
| 8T4186 | 17 BOLT (M10X1.5X40-MM) | 19 | |
| 8T4194 | 18 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4223 | 19 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 1P2841 | 20 SPACER (0.531X1X0.69-IN THK) | 4 | |
| 2239279 | 21 MOUNT | 1 | |
| 2Y5829 | NUT (M10X1.5-THD) | 6 | |
| 8M2770 | 22 CLIP (LOOP) | 4 | |
| 2239280 | 25 MOUNT AS | 1 | |
| 2Y5829 | NUT (M10X1.5-THD) | 5 | |
| 6V8225 | NUT (M6X1-THD) | 1 | |
| 2239281 | 26 BRACE | 1 | |
| 2239282 | 27 MOUNT AS | 1 | |
| 5P7970 | NUT (M8X1.25-THD) | 4 | |
| 2239283 | 28 COVER AS | 2 | |
| 1305300 | 29 CLIP | 7 | |
| 7Y7388 | 30 SCREW-BUTTON HEAD (M5X0.8X12-MM) | 4 | |
| 8T0328 | 31 WASHER-HARD (5.5X10X1-MM THK) | 8 | |
| 5C2874 | 32 NUT (M5X0.8-THD) | 4 | |
| 1272170 | 33 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 2 | |
| 8T4224 | 34 WASHER-HARD (8.8X16X2-MM THK) | 24 | |
| 5C7261 | 35 NUT (M8X1.25-THD) | 8 | |
| 3E7808 | 36 SWITCH AS-PRESSURE | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 4P8134 | 37 CLIP (LADDER) | 4 | |
| 1440195 | 38 HOSE (3-CM EACH) | ||
| 1440195 | 38A HOSE (6-CM EACH) | ||
| 1440195 | 38B HOSE (10-CM) | ||
| 3187990 | 39 FILM-IDENTIFICATION (FIRE EXTINGUISHER, POWDER, OMM) | 1 | |
| 2239284 | 41 HARNESS AS-WIRING (DASH) | 1 | |
| 2844318 | 42 HARNESS AS-CAB | 1 | |
| 2239286 | 43 HARNESS AS-CONTROL | 1 | |
| 8T4138 | 44 BOLT (M6X1X20-MM) | 2 | |
| 1153072 | 48 CLIP AS-CONNECTING (8-PIN) | 1 | |
| 8C3334 | RIVET-TUBULAR | 1 | |
| 6P0699 | 49 GROMMET | 1 | |
| 1W8795 | 50 BRACKET | 2 | |
| 4D7794 | 51 CLIP | 14 | |
| 1208234 | 52 BRACE | 3 | |
| 4P7581 | 54 CLIP (LADDER) | 11 | |
| 8S7583 | 55 GROMMET | 1 | |
| 8T4198 | 56 BOLT (M10X1.5X100-MM) | 4 | |
| 8T4196 | 57 BOLT (M10X1.5X35-MM) | 5 | |
| 8T4908 | 58 BOLT (M8X1.25X25-MM) | 8 | |
| 2485578 | 59 MOUNT AS | 1 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 2290385 | 60 HARNESS AS-SWITCH (SHUTDOWN)(PRESSURE SWITCH) | 1 | |
| 3474681 | 62 FILM-WARNING (FIRE SUPPRESSION ACTIVATION) | 1 | |
| 6D4246 | 64 CLIP (LOOP) | 1 | |
| 2B0941 | 66 SPACER (10.5X19X19-MM THK) | 1 | |
| 2N3378 | 67 ELBOW-FLARED | 3 | |
| 8T4123 | 68 WASHER (22X35X3.5-MM THK) | 8 | |
| 6K0806 | 69 STRAP-CABLE | 18 | |
| 2844317 | 70 BRACKET | 1 | |
| 3462541 | 71 HARNESS AS-WIRING (CAB) | 1 |
