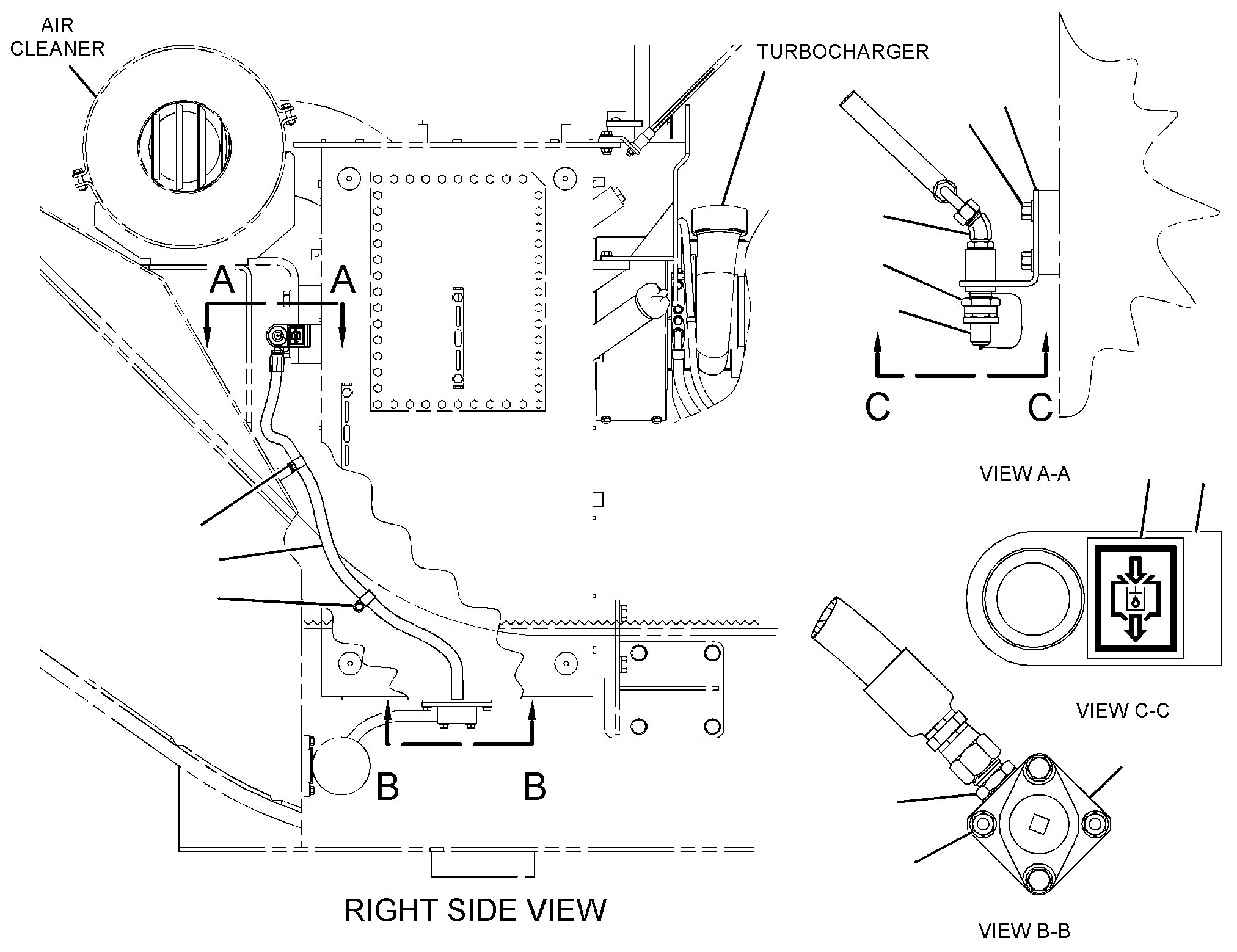

Assembly
100%

268-3006 DRAIN GP-HIGH SPEED FLUID -HYDRAULIC TANKS/N CXM1-UP

Group No: 268-3006
Part NumberPart NameQty
23888861 HOSE AS1
6D42442 CLIP (LOOP)2
8T41363 BOLT (M10X1.5X25-MM)2
8T41214 WASHER-HARD (11X21X2.5-MM THK)2
23888875 BRACKET1
8T41926 BOLT (M12X1.75X25-MM)2
8T42237 WASHER-HARD (13.5X25.5X3-MM THK)2
23959838 CONNECTOR-HYDRAULIC1
20303669 ADAPTER1
211833310 CAP1
203175611 BLOCK1
5F800012 SEAL-O-RING1
8T489613 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T250214 BOLT (3/8-16X1.125-IN)2
9M458415 CONNECTOR1
2M978016 SEAL-O-RING1
276857317 PLATE-IDENTIFICATION (FAST FILL)1
