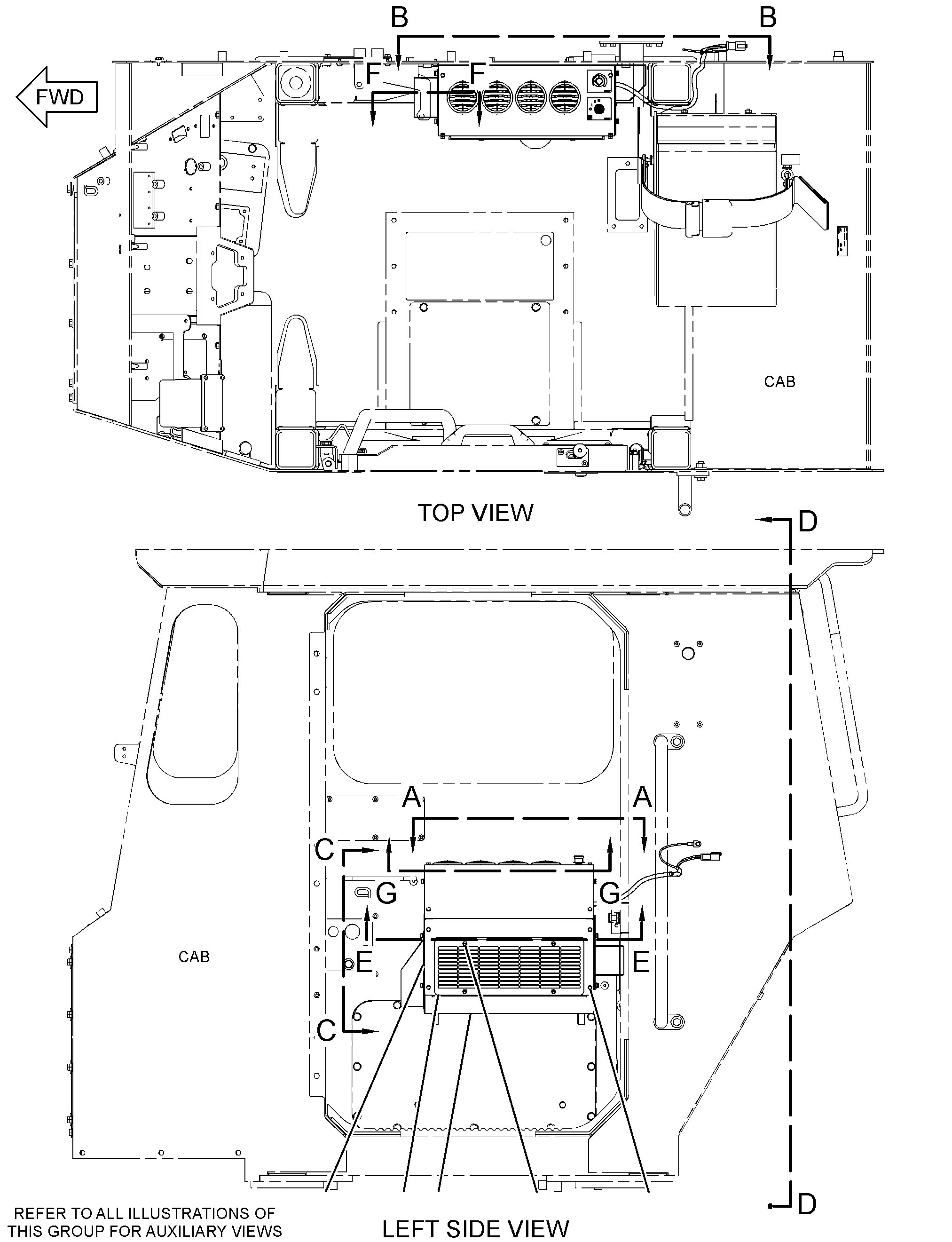

229-5176 AIR CONDITIONER GPS/N CXM1-566

Group No: 229-5176

Part Number	Part Name	Qty
3860057	1 SEAL (36-CM EACH)
3860057	1A SEAL (8-CM EACH)
2119326	2 FILM-IDENTIFICATION (TEMPERATURE CONTROL)	1
2119327	3 FILM-IDENTIFICATION (FAN CONTROL SWITCH)	1
2119334	4 GASKET	1
2295175	5 COVER AS	1
2313930	6 RELAY AS (24-VOLT)(DEF MANIFOLD HEATER)	1
3997473	7 HARNESS AS-HEATER & AIR COND	1
4173798	8 DEFLECTOR	1
1028804	9 KIT-RECEPTACLE (4-PIN)	1
3S2093	10 STRAP-CABLE	5
1868216	11 COVER	1
1868217	12 VENT	4
1868218	13 THERMOSTAT	1
1868219	14 SWITCH-FAN SPEED (AIR CONDITIONER)	1
1868220	15 KNOB (THERM0STAT)	1
1868221	16 KNOB (FAN SWITCH)	1
1868222	17 FAN AS	1
1868224	18 COIL-EVAPORATOR	1
1868225	19 VALVE	1
1868227	20 SEAL-O-RING	2
1868228	21 FILTER (AIR CONDITIONER)	1
1893158	22 SUPPRESSOR-ARC	1
1978672	23 CLIP	4
1978681	24 CLIP	4
1978682	25 CLIP	4
1978683	26 CLIP	4
2119336	27 WASHER (5.4X9.8X0.7-MM THK)	8
2119337	28 WASHER-SPRING	8
2119338	29 CASE AS	1
2119339	30 COVER-PANEL	1
2119340	31 PANEL AS	1
2119342	32 NUT (M5X0.8-THD)	4
2119343	33 PLATE-COVER	1
2119344	34 PLATE AS-COVER	1
2119345	35 SETSCREW (M6X1X16-MM)	13
2119346	36 WASHER (6.5X12.3X1-MM THK)	17
2119347	37 WASHER-SPRING	10
2128436	38 RECEPTACLE AS-CONNECTOR (3-PIN)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1439508	ADHESIVE-EPOXY	1
3083610	39 RECEPTACLE AS (2.5-AMPERE)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1439508	ADHESIVE-EPOXY	1
3860056	40 GRILL	1
2119335	41 BOLT (M5X0.8X16-MM)	8
5C2890	42 NUT (M6X1-THD)	2
7X2533	43 BOLT (M6X1X35-MM)	1
8T4138	44 BOLT (M6X1X20-MM)	1
