System And Components

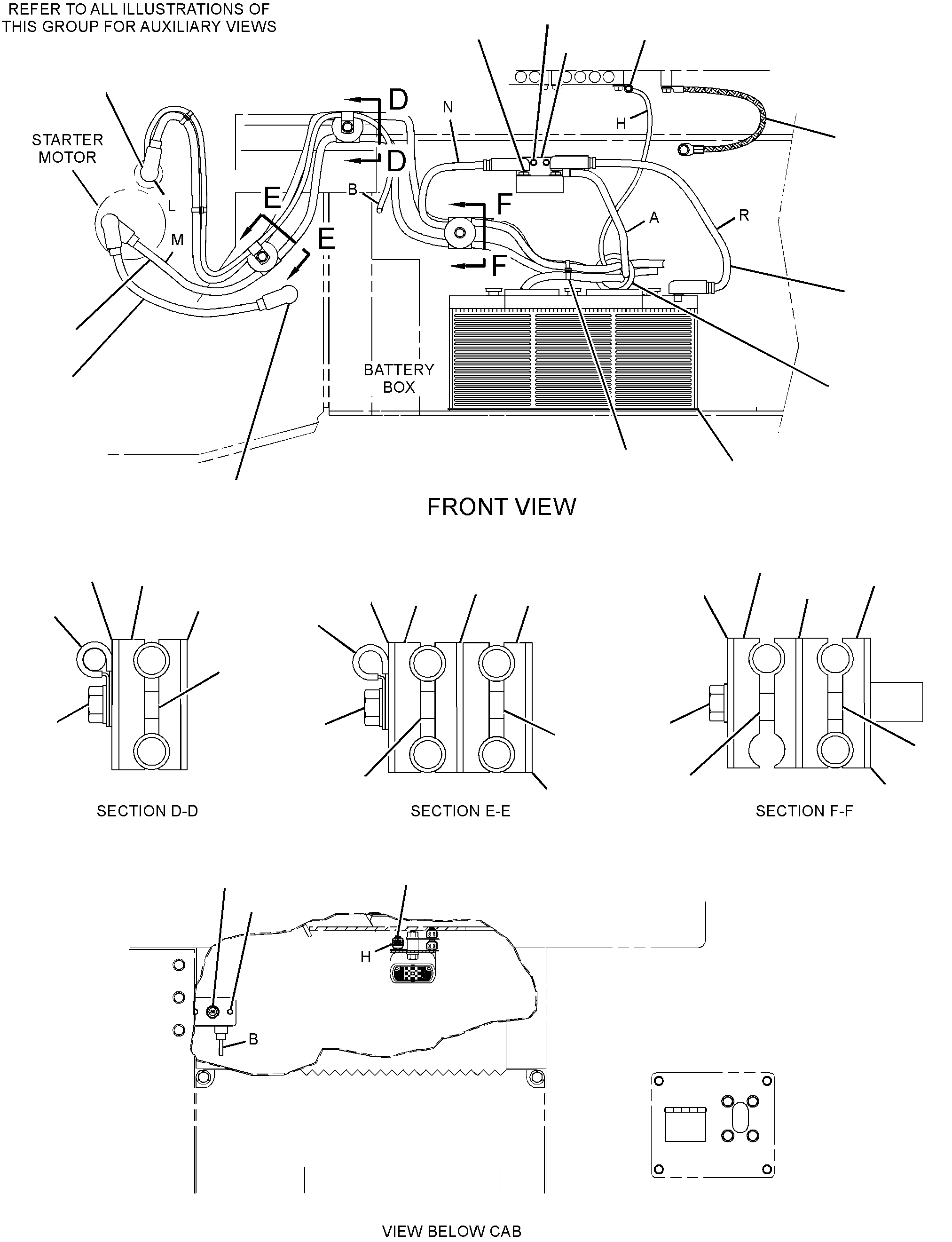

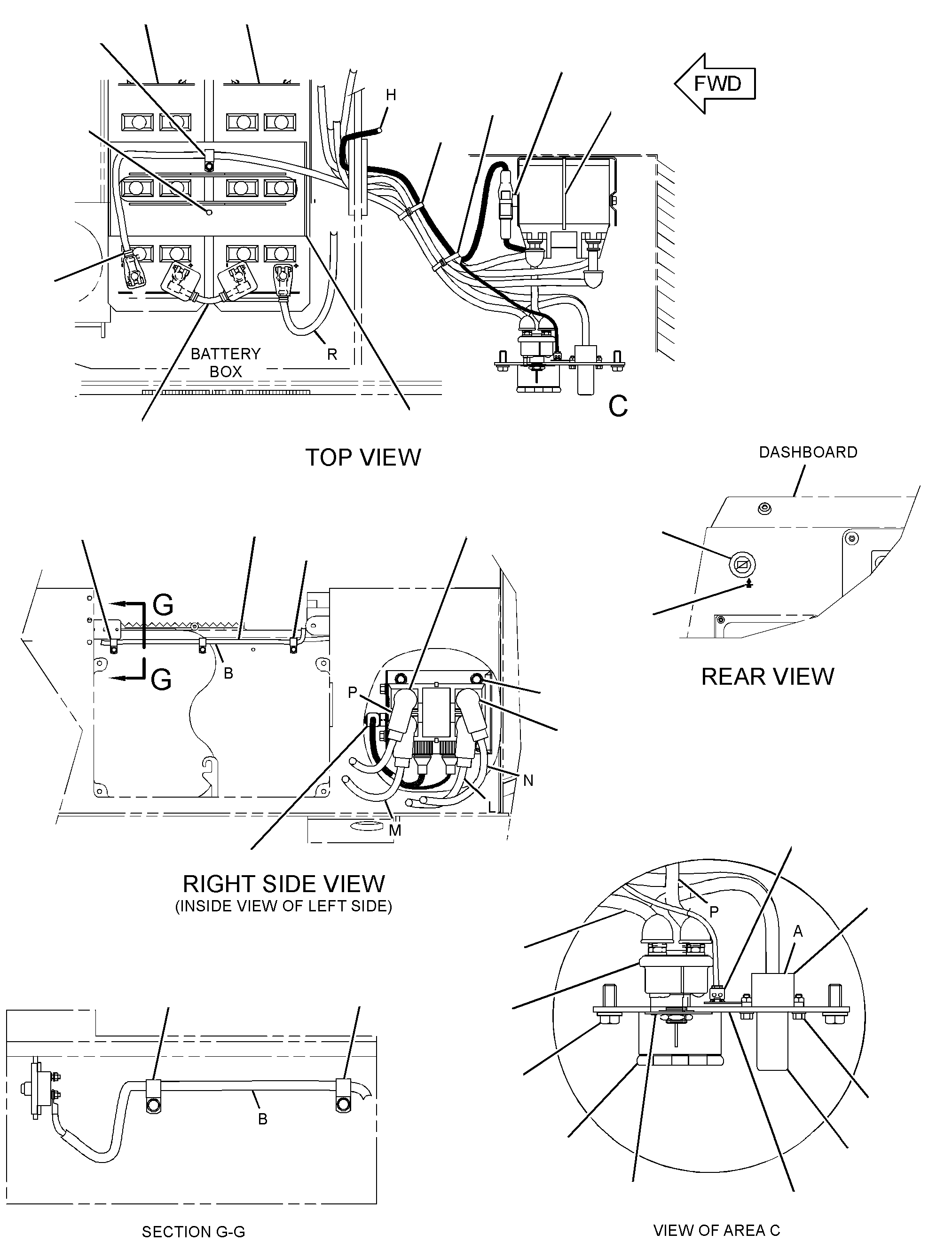

421-4371 BATTERY & WIRING GPS/N CXM539-UP
Group No: 421-4371
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3511201 | 1 ISOLATOR AS | 1 | |
| 3004878 | RELAY (24-VOLT) | 1 | |
| 2105732 | ENCAPSULANT | 1 | |
| 2551012 | 2 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9X4519 | BOOT (RED) | 1 | |
| 3179215 | 3 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 2 | |
| 6T0465 | COVER-TERMINAL (BLACK) | 2 | |
| 3114725 | 4 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9X4519 | BOOT (RED) | 2 | |
| 3115176 | TERMINAL (00-GA) | 1 | |
| 3114726 | 5 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9X4519 | BOOT (RED) | 2 | |
| 3115176 | TERMINAL (00-GA) | 1 | |
| 8T4200 | 6 BOLT (M8X1.25X16-MM) | 8 | |
| 8T4224 | 7 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 4211898 | 8 SWITCH AS (ISOLATOR)(ISOLATOR) | 1 | |
| 2286144 | RING | 1 | |
| 4237313 | KIT-KNOB | 1 | |
| 7K1181 | 9 STRAP-CABLE | 3 | |
| 2955259 | 10 STUD (M10X1.5-MM) | 2 | |
| 7X7702 | 11 CONDUIT-FLEXIBLE (23.35-MM ID, SPLIT)(4-CM EACH) | ||
| 2551011 | 12 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 2551013 | 13 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 6T0465 | COVER-TERMINAL (BLACK) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G0549 | 14 CABLE AS | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1598050 | CABLE (00-GA, BLACK)(20-CM) | ||
| 9G0003 | COVER AS-TERMINAL (BLACK) | 1 | |
| 9G0004 | COVER AS-TERMINAL (RED) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 8C5917 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 8T9757 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 2550224 | 15 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 8T4137 | 16 BOLT (M10X1.5X20-MM) | 8 | |
| 8T4121 | 17 WASHER-HARD (11X21X2.5-MM THK) | 23 | |
| 4K8302 | 18 CLIP (LOOP) | 1 | |
| 8T4223 | 19 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 6V7687 | 20 LOCKNUT (M12X1.75-THD) | 2 | |
| 6C7474 | 21 ROD | 1 | |
| 2692302 | 22 CLAMP | 1 | |
| 9X9730 | 23 BATTERY GP (12-VOLT) | 2 | |
| 7N0060 | VENT AS | 6 | |
| 0338248 | 24 CLIP (LOOP) | 7 | |
| 3462487 | 25 HARNESS AS-POWER (STARTER) | 1 | |
| 1082515 | COVER-TERMINAL | 1 | |
| 1712210 | 26 CIRCUIT BREAKER AS (80-AMPERE) | 1 | |
| 4E5724 | WASHER (7X12X1-MM THK) | 2 | |
| 8T0122 | NUT-FULL (1/4-28-THD) | 2 | |
| 1H3244 | LOCKWASHER | 2 | |
| 2S9556 | 27 SCREW-MACHINE (10-32X0.875-IN) | 2 | |
| 8T6466 | 28 BOLT (M10X1.5X60-MM) | 2 | |
| 2G8767 | 29 WASHER (10.5X60X3-MM THK) | 8 | |
| 2536273 | 30 INSULATOR | 5 | |
| 4W7627 | 31 SPACER (11X19X37-MM THK) | 5 | |
| 8T6685 | 32 BOLT (M10X1.5X110-MM) | 2 | |
| 4M1111 | 33 MAT | 2 | |
| 6T0465 | 34 COVER-TERMINAL (BLACK) | 1 | |
| 0815930 | 35 CABLE AS-CHASSIS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 2692303 | 36 COVER | 1 | |
| 3076391 | 37 ISOLATOR | 1 | |
| 8S2634 | 38 COVER AS | 1 | |
| 7N0718 | 39 SWITCH GP-DISCONNECT | 1 | |
| 8T4196 | 40 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4133 | 41 NUT (M10X1.5-THD) | 4 | |
| 1305300 | 42 CLIP | 1 | |
| 9X6155 | 43 BOLT-SOCKET HEAD (M6X1X16.7-MM) | 2 | |
| 2169890 | 44 FUSE GP (CORROSION RESISTANT) | 1 | |
| 2104757 | 45 NUT (1/2-13-THD) | 2 | |
| 2104756 | 46 WASHER (13X25X2MM THK) | 2 | |
| 7Y3195 | 47 GROMMET | 1 | |
| 3180734 | 48 HARNESS AS-SWITCH | 1 | |
| 1160118 | 49 CLIP | 1 | |
| 2551014 | 50 HARNESS AS-SWITCH | 1 | |
| 9X4519 | BOOT (RED) | 1 | |
| 8S2633 | RECEPTACLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 6V2722 | TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M) | ||
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 3033508 | 51 HARNESS AS-WIRING | 1 | |
| 4D7794 | 52 CLIP | 1 | |
| 3071120 | 53 FILM-IDENTIFICATION (BATTERY DISCONNECT) | 1 | |
| 3092354 | 54 PLATE-INFORMATION (BATTERY ISOLATION) | 1 |
