System And Components
Assembly
100%

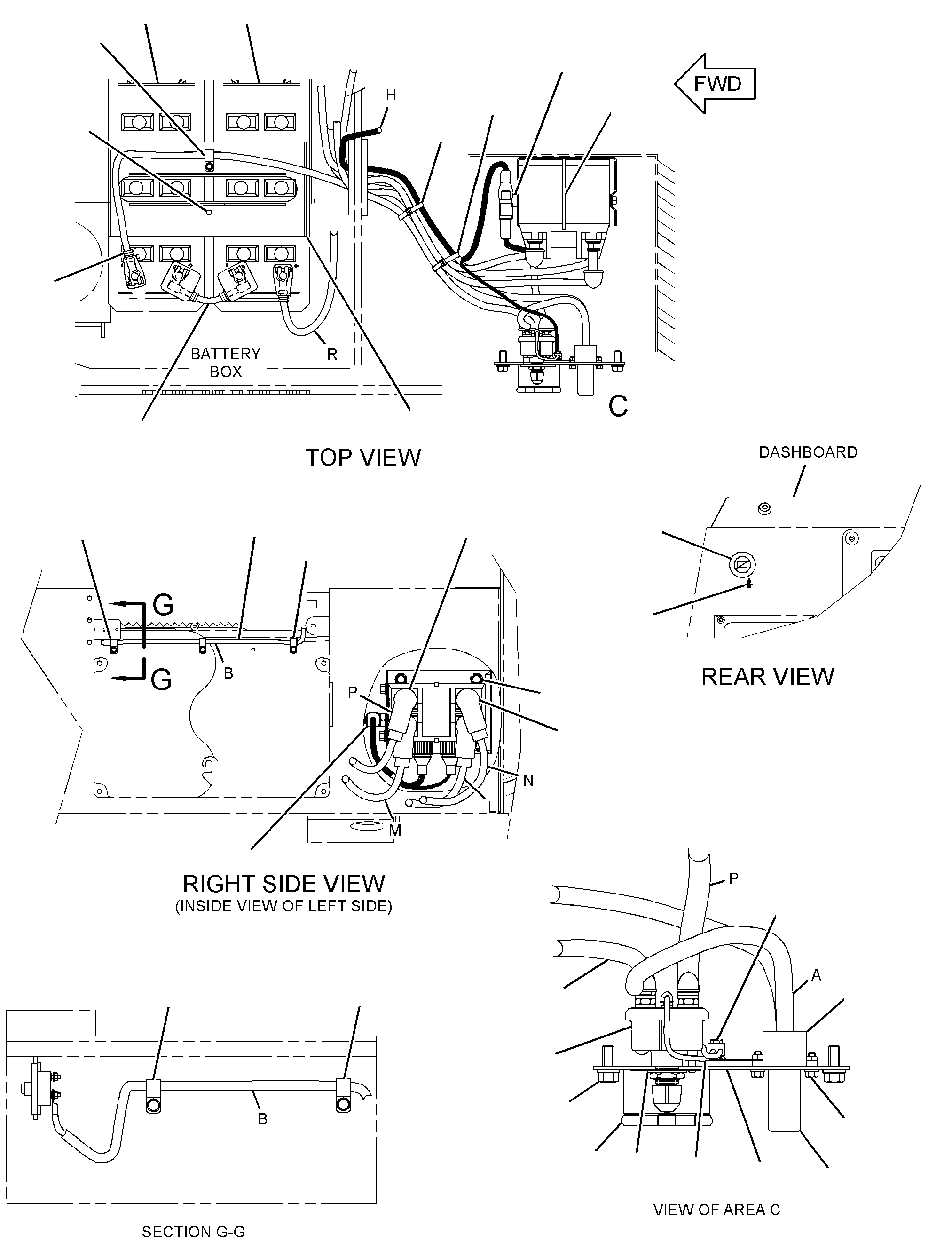

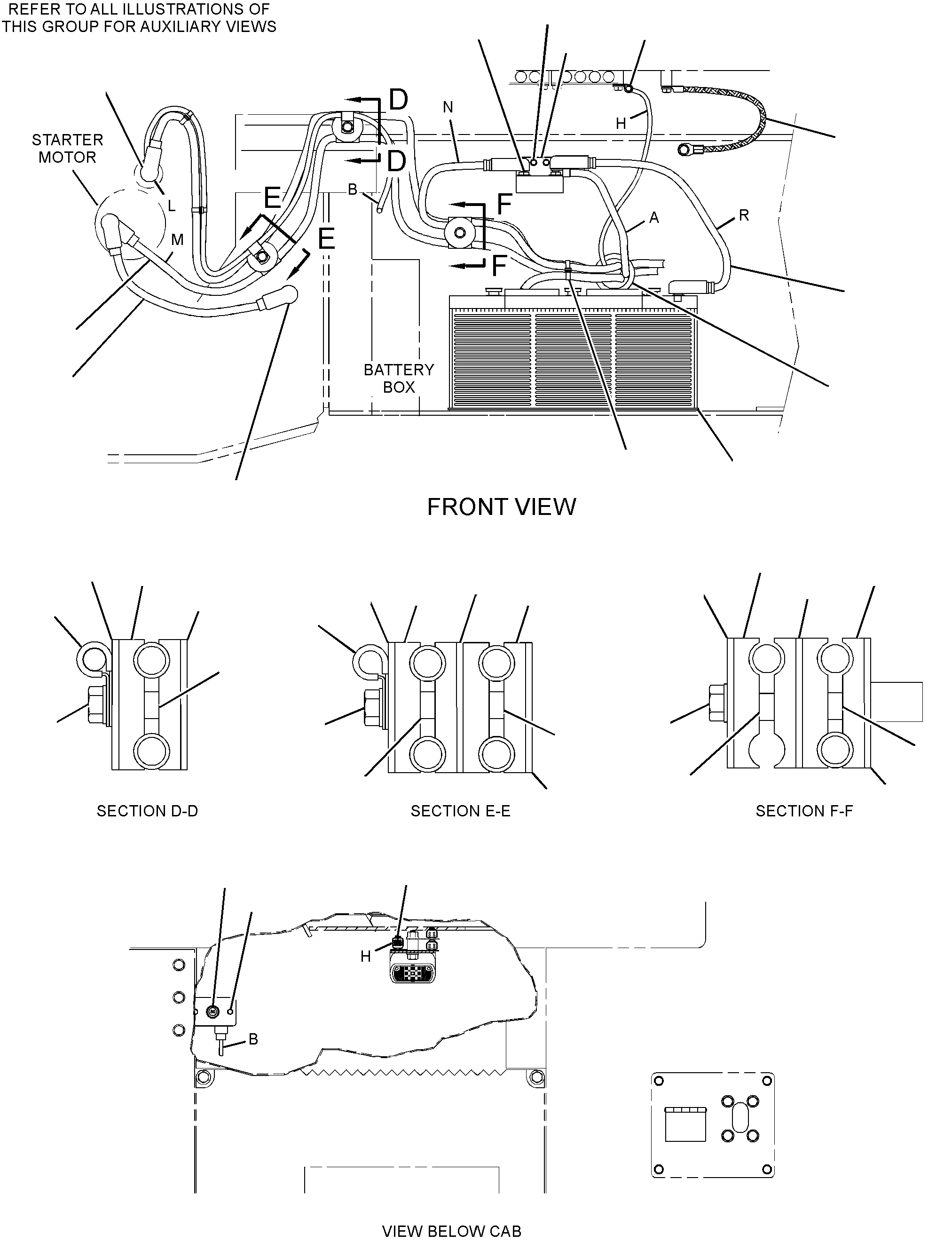

421-4372 BATTERY & WIRING GP -2-POST DISCONNECT, 4-POLE SWITCHS/N CXM539-UP

Group No: 421-4372
Part NumberPart NameQty
35112011 ISOLATOR AS1
2955253ISOLATOR GP-ELECTRICAL (BATTERY)1
3004878RELAY (24-VOLT)(BATTERY)1
2105732ENCAPSULANT1
25510122 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
3S6049TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8N1725COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
9X4519BOOT (RED)1
31792153 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)2
6T0465COVER-TERMINAL (BLACK)2
31147254 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9X4519BOOT (RED)2
3115176TERMINAL (00-GA)1
31147265 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9X4519BOOT (RED)2
3115176TERMINAL (00-GA)1
6T04656 COVER-TERMINAL (BLACK)1
08159307 CABLE AS-CHASSIS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
42118988 SWITCH AS (ISOLATOR)(ISOLATOR)1
2286144RING1
4237313KIT-KNOB1
7K11819 STRAP-CABLE3
295525910 STUD (M10X1.5-MM)2
7X770211 CONDUIT-FLEXIBLE (23.35-MM ID, SPLIT)8
255101112 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
255101313 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
6T0465COVER-TERMINAL (BLACK)1
7N5274COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
9G054914 CABLE AS1
1M6119BOLT (5/16-18X1.375-IN)2
9G0003COVER AS-TERMINAL (BLACK)1
9G0004COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
1M6120NUT (5/16-18-THD)2
8C5917TERMINAL AS-BATTERY (POSITIVE)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
255022415 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
8T413716 BOLT (M10X1.5X20-MM)8
8T412117 WASHER-HARD (11X21X2.5-MM THK)23
4K830218 CLIP (LOOP)1
8T422319 WASHER-HARD (13.5X25.5X3-MM THK)2
6V768720 LOCKNUT (M12X1.75-THD)2
6C747421 ROD1
269230222 CLAMP1
9X973023 BATTERY GP (12-VOLT)2
7N0060VENT AS (BATTERY)6
033824824 CLIP (LOOP)7
346248725 HARNESS AS-POWER (STARTER)1
1082515COVER-TERMINAL1
5P5675WIRE (6-GA, BLACK)(2.2-M)
171221026 CIRCUIT BREAKER AS (80-AMPERE)1
4E5724WASHER (7X12X1-MM THK)2
8T0122NUT-FULL (1/4-28-THD)2
1H3244LOCKWASHER2
2S955627 SCREW-MACHINE (10-32X0.875-IN)2
8T646628 BOLT (M10X1.5X60-MM)2
2G876729 WASHER (10.5X60X3-MM THK)8
253627330 INSULATOR5
4W762731 SPACER (11X19X37-MM THK)5
8T668532 BOLT (M10X1.5X110-MM)2
4M111133 MAT2
8T420034 BOLT (M8X1.25X16-MM)4
8T422435 WASHER-HARD (8.8X16X2-MM THK)4
269230336 COVER1
307639137 ISOLATOR1
8S263438 COVER AS1
307640239 SWITCH-DISCONNECT (4-POLE)(BATTERY)1
8T419640 BOLT (M10X1.5X35-MM)4
8T413341 NUT (M10X1.5-THD)4
130530042 CLIP1
9X615543 BOLT-SOCKET HEAD (M6X1X16.7-MM)2
216989044 FUSE GP (CORROSION RESISTANT)1
210475745 NUT (1/2-13-THD)2
210475646 WASHER (13X25X2MM THK)2
7Y319547 GROMMET1
318073448 HARNESS AS-SWITCH1
116011849 CLIP1
255101450 HARNESS AS-SWITCH1
9X4519BOOT (RED)1
8S2633RECEPTACLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
303350851 HARNESS AS-WIRING1
4D779452 CLIP1
307112053 FILM-IDENTIFICATION (BATTERY DISCONNECT)1
311443854 HARNESS AS-SWITCH1
309235455 PLATE-INFORMATION (BATTERY ISOLATION)1
