System And Components
Assembly
100%

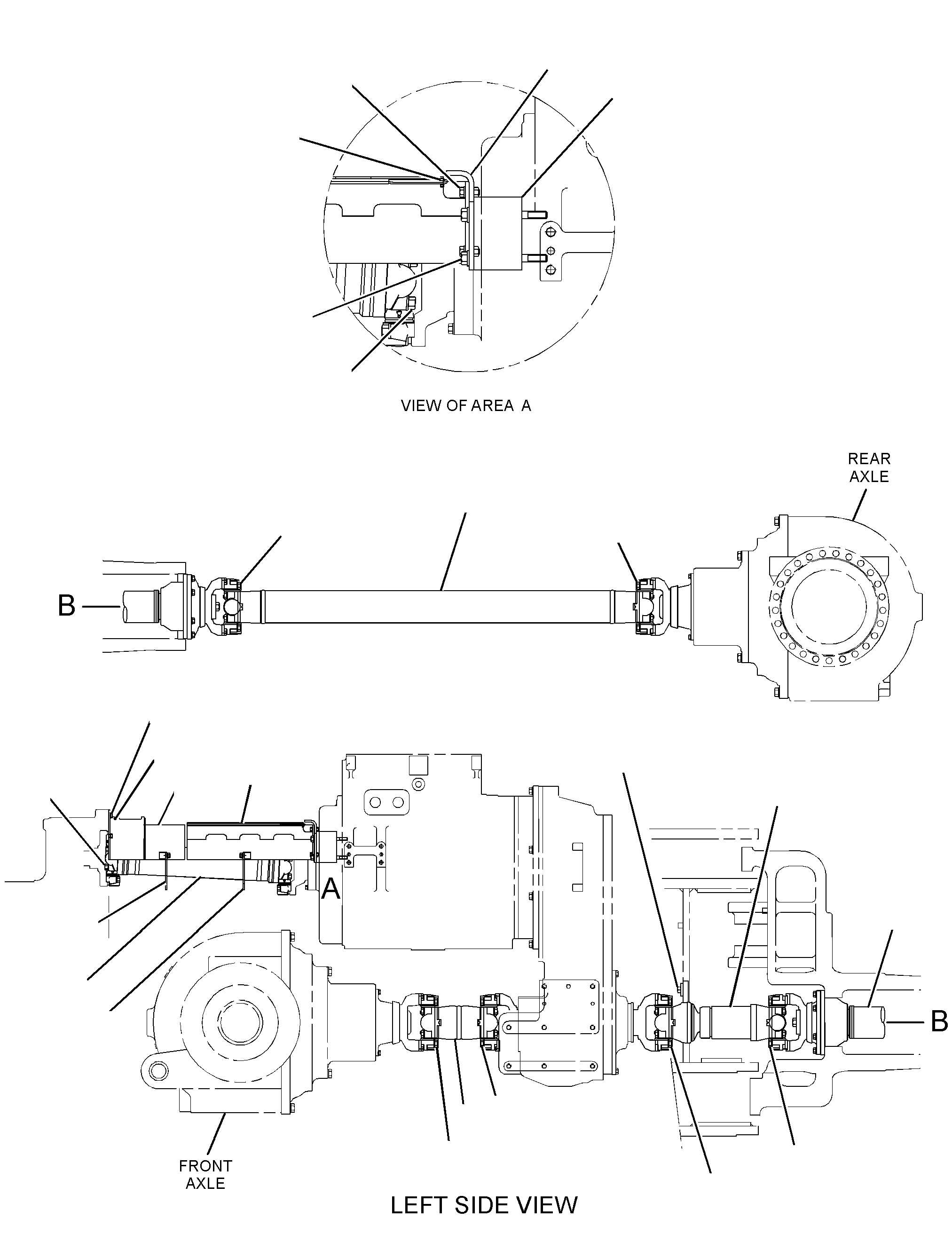

259-7168 SHAFT GP-DRIVES/N CXM1-488

Group No: 259-7168
Part NumberPart NameQty
25515731 SHAFT GP-DRIVE (UPPER)1
6V38232 BOLT (M12X1.75X60-MM)8
20721163 SHAFT GP-DRIVE1
3H76544 WASHER-HARD (13.5X22.5X3-MM THK)8
20988495 SLIP JOINT GP1
26184056 SHAFT GP-DRIVE (OSCILLATION)1
25971677 SHAFT GP-DRIVE1
9X82578 WASHER (17.5X30X3.5-MM THK)2
21118669 GUARD1
8T414010 BOLT (M16X2X60-MM)2
8T028111 BOLT (M16X2X80-MM)24
9X826812 WASHER (17.5X30X3.5-MM THK)24
283532113 GUARD AS1
9R2672BOSS-THREADED (M10X1.5X20-MM)1
380004114 GUARD AS1
211186915 SPACER2
211187016 MOUNT AS1
9R9866BOSS-THREADED (M10X1.5-THD)1
9S8752NUT-FULL (3/8-16-THD)4
4L645417 BOLT (3/8-16X1-IN)8
8T489618 WASHER-HARD (10.2X18.5X2.5-MM THK)8
9X887819 BOLT (1/2-13X5.25-IN)4
5P824520 WASHER-HARD (13.5X25.5X3-MM THK)12
217044921 FLAP1
303357222 STRIP1
8D955823 RIVET4
283532324 GUARD2
8T419525 BOLT (M10X1.5X30-MM)4
8T412126 WASHER-HARD (11X21X2.5-MM THK)4
343011227 FLAP1
343012228 STRIP1
