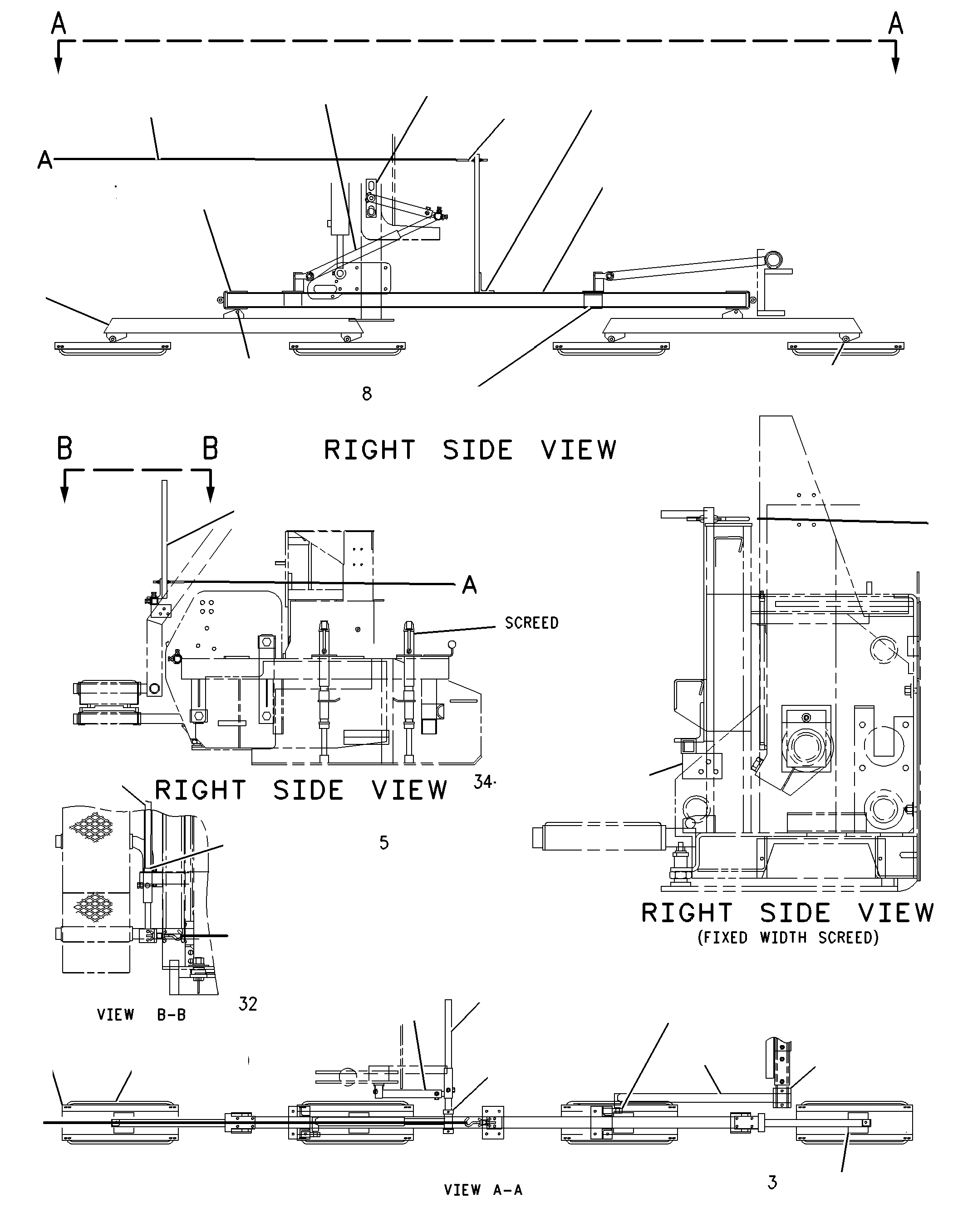

109-5624 LEVELER GP -12-FT GRADE REF, INBOARDS/N 1JG1-UP

Group No: 109-5624
Part NumberPart NameQty
16796321 BEAM1
08196382 CHANNEL2
08172093 BRACKET6
7X03344 BOLT (1/2-13X5-IN)6
2H37885 LOCKNUT (1/2-13-THD)6
9B72376 BOLT (3/8-16X1.25-IN)32
6V88017 NUT (3/8-16-THD)48
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)46
10956599 SHAFT1
172562810 TUBE AS1
167131411 PLATE AS2
109563512 TUBE AS1
109564113 EYEBOLT (3/8-16-THD)2
169017314 PLATE AS2
169017115 PLATE3
9N890916 STRINGLINE1
122115317 SUPPORT AS-GUIDE2
7X0443BOLT (1-8X5.5-IN)4
1221155SUPPORT AS-GUIDE2
8T2502BOLT (3/8-16X1.125-IN)4
1221157SUPPORT AS-GUIDE2
7X0387BOLT (7/8-9X4-IN)4
2311393PLATE AS1
8T4121WASHER-HARD (11X21X2.5-MM THK)4
8T4195BOLT (M10X1.5X30-MM)4
6V818218 NUT (3/4-10-THD)4
109564919 COLLAR2
140879320 COLLAR2
109565121 ARM AS1
109563422 TUBE AS1
109779823 ROD AS1
1097807BAR1
113912524 BAR1
167429025 EYEBOLT (3/4-10-THD)2
109562926 SHOE AS4
109563227 RUNNER8
119591528 U-BOLT (1/4-20-THD)16
6V818529 NUT (1/4-20-THD)32
8T420530 WASHER-HARD (7.2X14.5X2-MM THK)32
4L645431 BOLT (3/8-16X1-IN)2
8T499432 WASHER-HARD (20X36.5X3.5-MM THK)3
8T891733 BOLT (1/2-13X1.25-IN)10
6V818834 NUT (1/2-13-THD)10
109566035 SUPPORT AS2
1F0748NUT-WELD (1/2-13-THD)2
8T891536 BOLT (3/8-16X3.25-IN)4
4L933737 BOLT (3/8-16X1.5-IN)4
7X029238 BOLT (3/8-16X4.5-IN)8
122110439 ROD AS1
122115040 TUBE AS1
8T939741 BOLT (3/4-10X1.25-IN)1
9L913242 WASHER (10.2X25.5X2.5-MM THK)2
