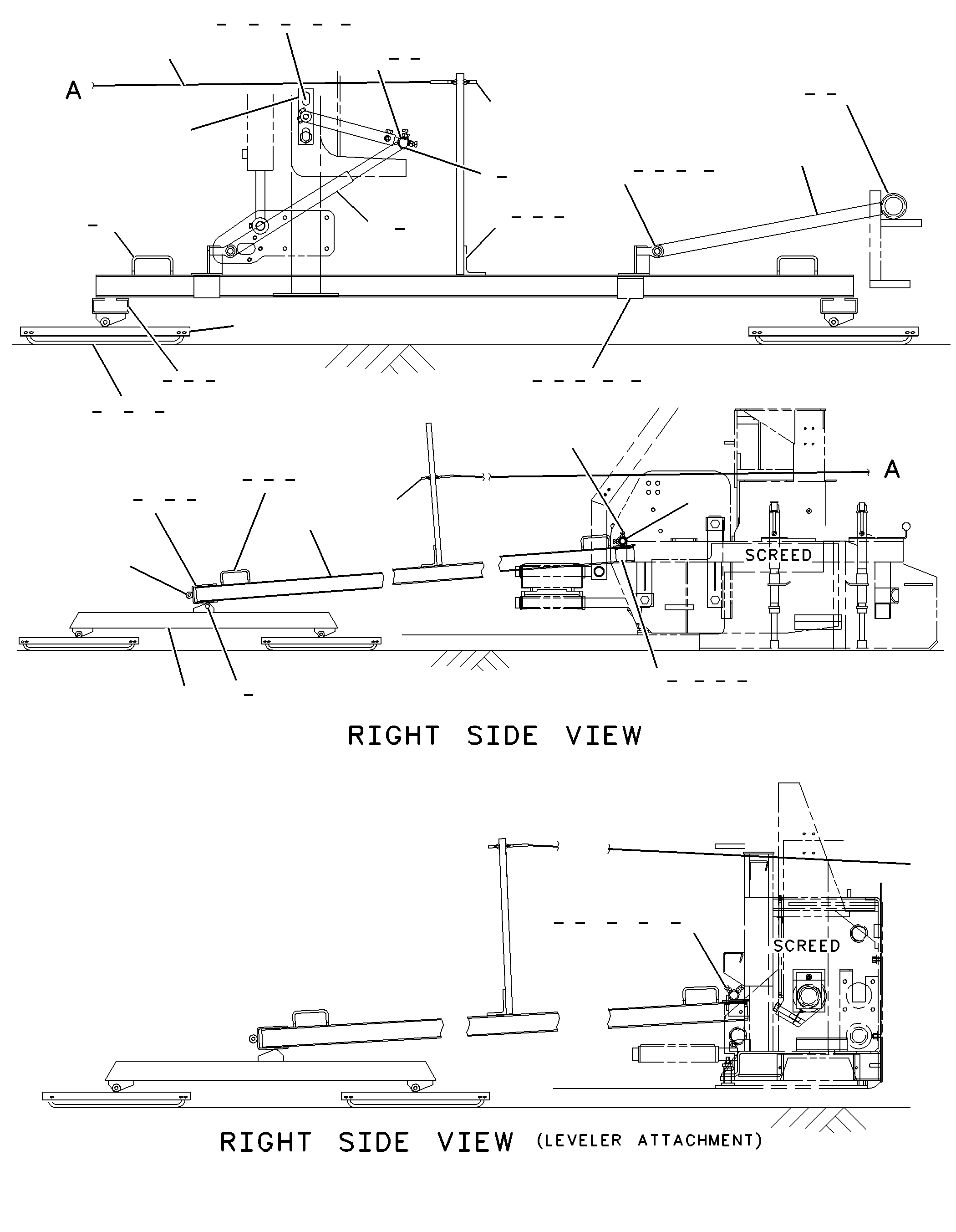

109-5626 LEVELER GP -MOBILE STRINGLINE, OUTBOARDS/N 1JG1-UP

Group No: 109-5626
Part NumberPart NameQty
08177701 BEAM2
08196382 CHANNEL1
08172093 BRACKET5
7X03344 BOLT (1/2-13X5-IN)4
2H37885 LOCKNUT (1/2-13-THD)4
9B72376 BOLT (3/8-16X1.25-IN)44
6V88017 NUT (3/8-16-THD)66
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)42
10956599 SHAFT2
081776910 BEAM-END1
6S497511 ROD4
109563512 TUBE AS2
109564113 EYEBOLT (3/8-16-THD)2
109564214 BRACKET AS2
109564815 PLATE3
109563616 BRACKET AS-GUIDE1
8T5912NUT-WELD (3/8-16-THD)1
122115317 SUPPORT AS-GUIDE2
7X0443BOLT (1-8X5.5-IN)4
1221155SUPPORT AS-GUIDE2
8T2502BOLT (3/8-16X1.125-IN)4
1221157SUPPORT AS-GUIDE2
7X0387BOLT (7/8-9X4-IN)4
081752418 PIN-HITCH1
109564919 COLLAR2
140879320 COLLAR4
109565121 ARM AS1
109563422 TUBE AS1
109779823 ROD AS1
109565824 SUPPORT AS-GUIDE2
1F0748NUT-WELD (1/2-13-THD)2
109566125 ROD END2
109562926 SHOE AS4
109563227 RUNNER8
119591528 U-BOLT (1/4-20-THD)16
6V818529 NUT (1/4-20-THD)32
8T420530 WASHER-HARD (7.2X14.5X2-MM THK)32
2H372531 BOLT (3/4-16X1.5-IN)2
8T499432 WASHER-HARD (20X36.5X3.5-MM THK)3
9N890933 STRINGLINE1
8T891734 BOLT (1/2-13X1.25-IN)10
6V818835 NUT (1/2-13-THD)10
109565536 TUBE2
4L933737 BOLT (3/8-16X1.5-IN)4
9L913238 WASHER (10.2X25.5X2.5-MM THK)2
122110439 ROD AS1
1F0748NUT-WELD (1/2-13-THD)2
122115040 TUBE AS1
8T939741 BOLT (3/4-10X1.25-IN)1
8T937942 BOLT (3/8-16X4.25-IN)4
137461943 TUBE1
