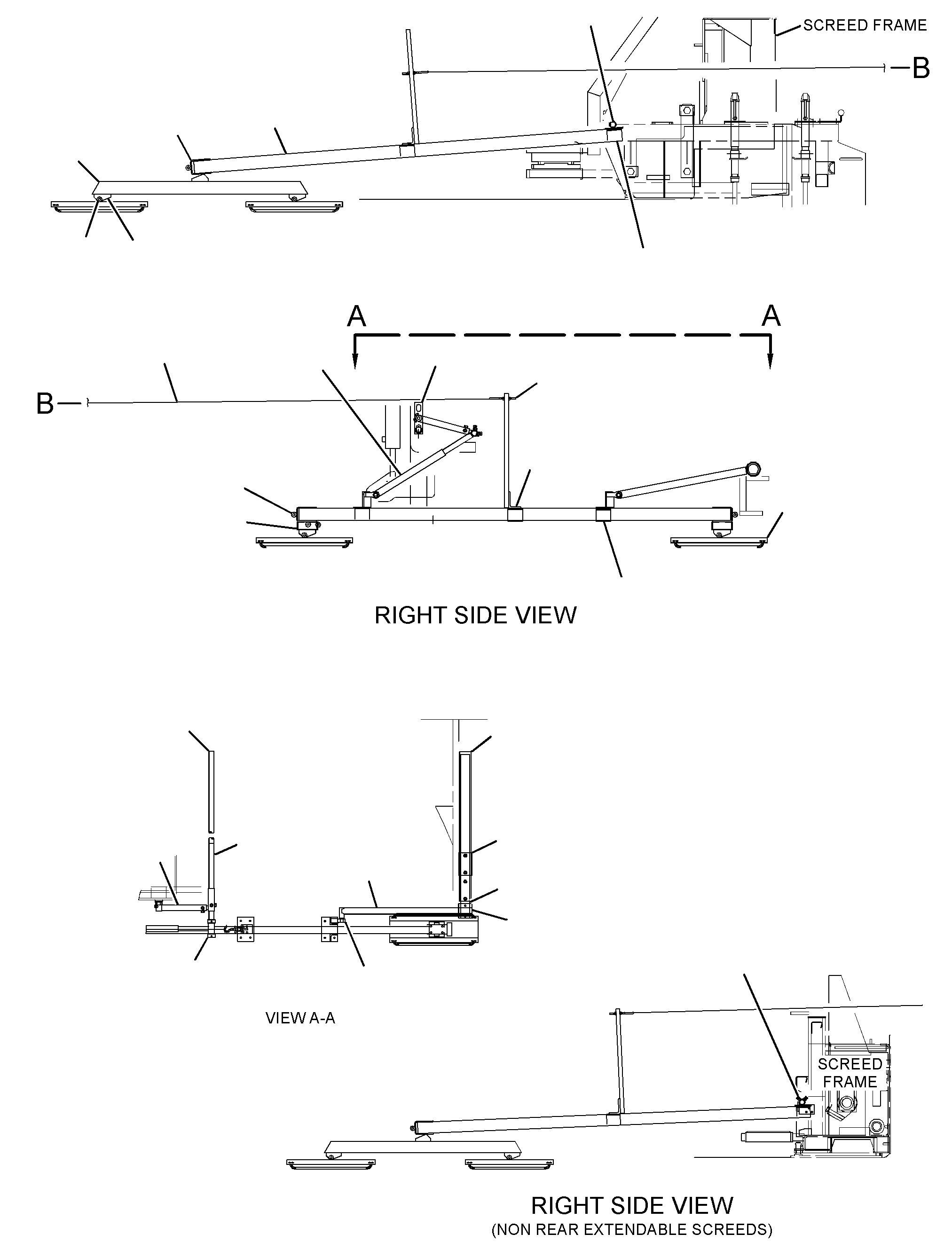

109-5626 LEVELER GP -MOBILE STRINGLINE, OUTBOARDS/N 1JG1-UP
Group No: 109-5626
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1679632 | 1 BEAM | 2 | |
| 0819638 | 2 CHANNEL | 1 | |
| 0817209 | 3 BRACKET | 5 | |
| 7X0334 | 4 BOLT (1/2-13X5-IN) | 5 | |
| 9X0941 | 5 LOCKNUT (1/2-13-THD) | 5 | |
| 9B7237 | 6 BOLT (3/8-16X1.25-IN) | 38 | |
| 6V8801 | 7 NUT (3/8-16-THD) | 58 | |
| 8T4896 | 8 WASHER-HARD (10.2X18.5X2.5-MM THK) | 58 | |
| 1095659 | 9 SHAFT | 2 | |
| 1671314 | 10 PLATE AS | 3 | |
| 1725628 | 12 TUBE AS | 2 | |
| 1095641 | 13 EYEBOLT (3/8-16-THD) | 2 | |
| 1690173 | 14 PLATE AS | 2 | |
| 1690171 | 15 PLATE | 5 | |
| 1690174 | 16 PLATE AS | 1 | |
| 8T5912 | NUT-WELD (3/8-16-THD) | 1 | |
| 1221153 | 17 SUPPORT AS-GUIDE | 2 | |
| 2311393 | PLATE AS | 2 | |
| 8T4121 | 18 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 1095649 | 19 COLLAR | 2 | |
| 1408793 | 20 COLLAR | 4 | |
| 1095651 | 21 ARM AS | 1 | |
| 1095634 | 22 TUBE AS | 1 | |
| 1097798 | 23 ROD AS | 1 | |
| 1095658 | 24 SUPPORT AS-GUIDE | 2 | |
| 1F0748 | NUT-WELD (1/2-13-THD) | 2 | |
| 1674290 | 25 EYEBOLT (3/4-10-THD) | 2 | |
| 1095629 | 26 SHOE AS | 4 | |
| 1095632 | 27 RUNNER | 8 | |
| 1195915 | 28 U-BOLT (1/4-20-THD) | 16 | |
| 6V8185 | 29 NUT (1/4-20-THD) | 32 | |
| 8T4205 | 30 WASHER-HARD (7.2X14.5X2-MM THK) | 32 | |
| 6V8182 | 31 NUT (3/4-10-THD) | 4 | |
| 8T4994 | 32 WASHER-HARD (20X36.5X3.5-MM THK) | 3 | |
| 1108861 | 33 CORD | ||
| 8T8917 | 34 BOLT (1/2-13X1.25-IN) | 10 | |
| 6V8188 | 35 NUT (1/2-13-THD) | 10 | |
| 1727077 | 36 TUBE | 2 | |
| 4L9337 | 37 BOLT (3/8-16X1.5-IN) | 4 | |
| 7X0443 | 38 BOLT (1-8X5.5-IN) | 4 | |
| 1221104 | 39 ROD AS | 1 | |
| 1F0748 | NUT-WELD (1/2-13-THD) | 2 | |
| 1221150 | 40 TUBE AS | 1 | |
| 8T9397 | 41 BOLT (3/4-10X1.25-IN) | 1 | |
| 1374619 | 42 TUBE | 1 | |
| 7X0292 | 43 BOLT (3/8-16X4.5-IN) | 4 | |
| 9L9132 | 44 WASHER (10.2X25.5X2.5-MM THK) | 2 | |
| 7X0293 | 45 BOLT (3/8-16X4.75-IN) | 8 | |
| 4L6454 | 46 BOLT (3/8-16X1-IN) | 2 | |
| 8T4195 | 47 BOLT (M10X1.5X30-MM) | 8 | |
| 1064604 | 48 TUBE | 1 | |
| 1994198 | 49 TUBE AS | 1 | |
| 8T4244 | 50 NUT (M12X1.75-THD) | 6 | |
| 8T4139 | 51 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4183 | 52 BOLT (M12X1.75X40-MM) | 6 | |
| 2931022 | 53 MOUNT AS | 2 | |
| 8T4122 | 54 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 8T4132 | 55 NUT (M16X2-THD) | 4 | |
| 8T4193 | 56 BOLT (M16X2X50-MM) | 4 | |
| 7X2554 | BOLT (M16X2X70-MM) | 4 | |
| 8T5005 | 57 BOLT (M10X1.5X70-MM) | 4 | |
| 3293356 | 58 NUT (M12X1.75-THD) | 4 | |
| 4161187 | 59 TUBE AS | 2 | |
| 4322435 | 60 MOUNT AS | 2 | |
| 4505685 | 61 SUPPORT AS | 2 |
