System And Components

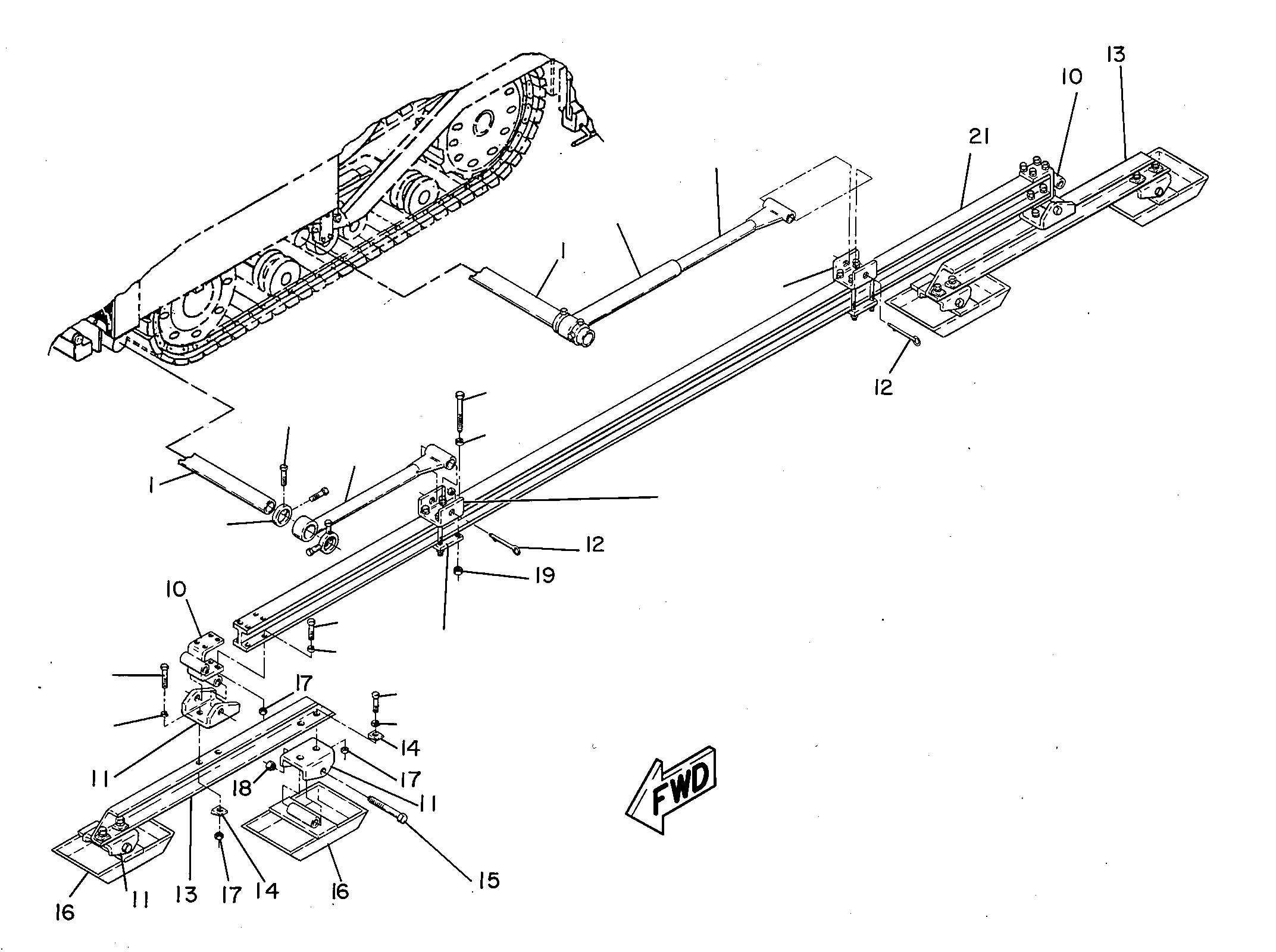

5E-9889 STRINGLINE GPS/N 1JG1-UP
Group No: 5E-9889
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C7933 | 1 TUBE | 2 | |
| 9B7237 | 2 BOLT (3/8-16X1.25-IN) | 36 | |
| 8C7809 | 3 COLLAR | 4 | |
| 0817212 | 4 GUIDE | 1 | |
| 0817765 | 5 GUIDE | 1 | |
| 7X0278 | 6 BOLT (5/16-18X4-IN) | 8 | |
| 8T4224 | 7 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 0817766 | 8 BRACKET (TOP) | 2 | |
| 8T4896 | 9 WASHER-HARD (10.2X18.5X2.5-MM THK) | 28 | |
| 0817769 | 10 BEAM-END | 2 | |
| 0817209 | 11 BRACKET | 6 | |
| 0817524 | 12 PIN-HITCH | 4 | |
| 0819638 | 13 CHANNEL | 2 | |
| 1G7444 | 14 WASHER-BEVEL | 12 | |
| 7X0334 | 15 BOLT (1/2-13X5-IN) | 4 | |
| 0817211 | 16 SHOE-PAN | 4 | |
| 6V8801 | 17 NUT (3/8-16-THD) | 28 | |
| 2H3788 | 18 LOCKNUT (1/2-13-THD) | 4 | |
| 6V8189 | 19 NUT (5/16-18-THD) | 8 | |
| 0817767 | 20 BRACKET (BOTTOM) | 2 | |
| 0817770 | 21 BEAM | 1 | |
| 0817764 | 22 LINK | 1 |
