System And Components

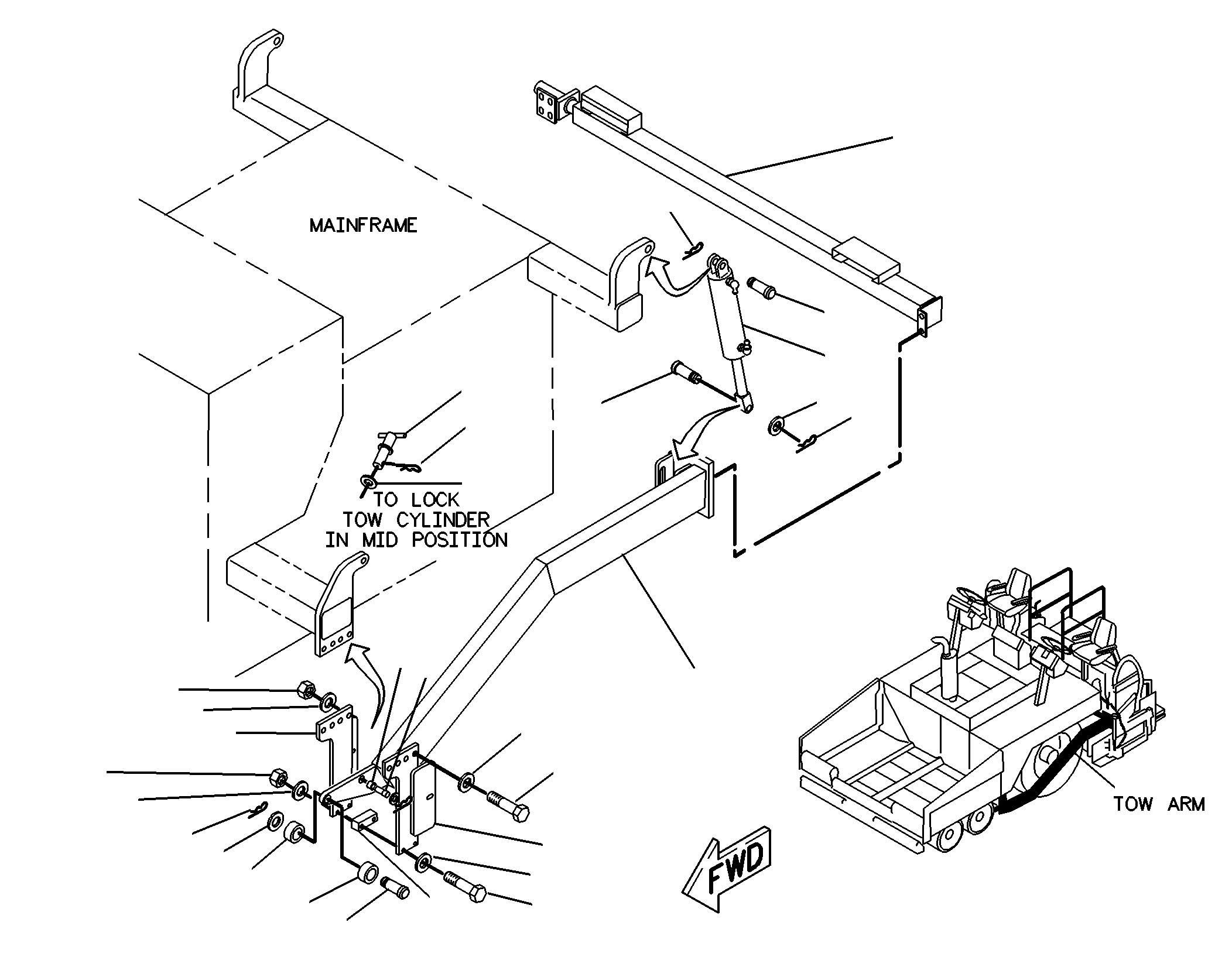

Assembly
100%

7R-0330 ARM GP-TOWS/N 1HD24-29

Group No: 7R-0330
Part NumberPart NameQty
1G91001 ARM AS-TOW (RH)1
1G9101ARM AS-TOW (LH)1
6R04232 PIN-CLEVIS2
7R03343 PIN AS2
7R03354 BRACKET AS (LH)2
7R03365 BRACKET AS (RH)2
7R03376 BEAM GP-TRANSVERSE1
8C81987 ROLLER4
6R43168 PIN2
08195259 SPACER2
8C790210 PIN2
081699811 CYLINDER GP-HYDRAULIC2
5P883712 LOCK PIN4
082198913 PIN-COTTER4
7X035114 BOLT (5/8-11X3.75-IN)4
7X038615 BOLT (7/8-9X3.5-IN)8
7X044816 NUT (5/8-11-THD)4
7X044917 NUT-FULL (7/8-9-THD)8
8T499418 WASHER-HARD (20X36.5X3.5-MM THK)2
8T536119 WASHER-HARD (28X49X5-MM THK)6
8T412220 WASHER-HARD (17X32X3.5-MM THK)4
8C691321 WASHER-HARD (24X41.5X4-MM THK)8
8T438222 PIN-CLEVIS2
6R048823 BEARING2
3B463124 PIN-COTTER2
