System And Components

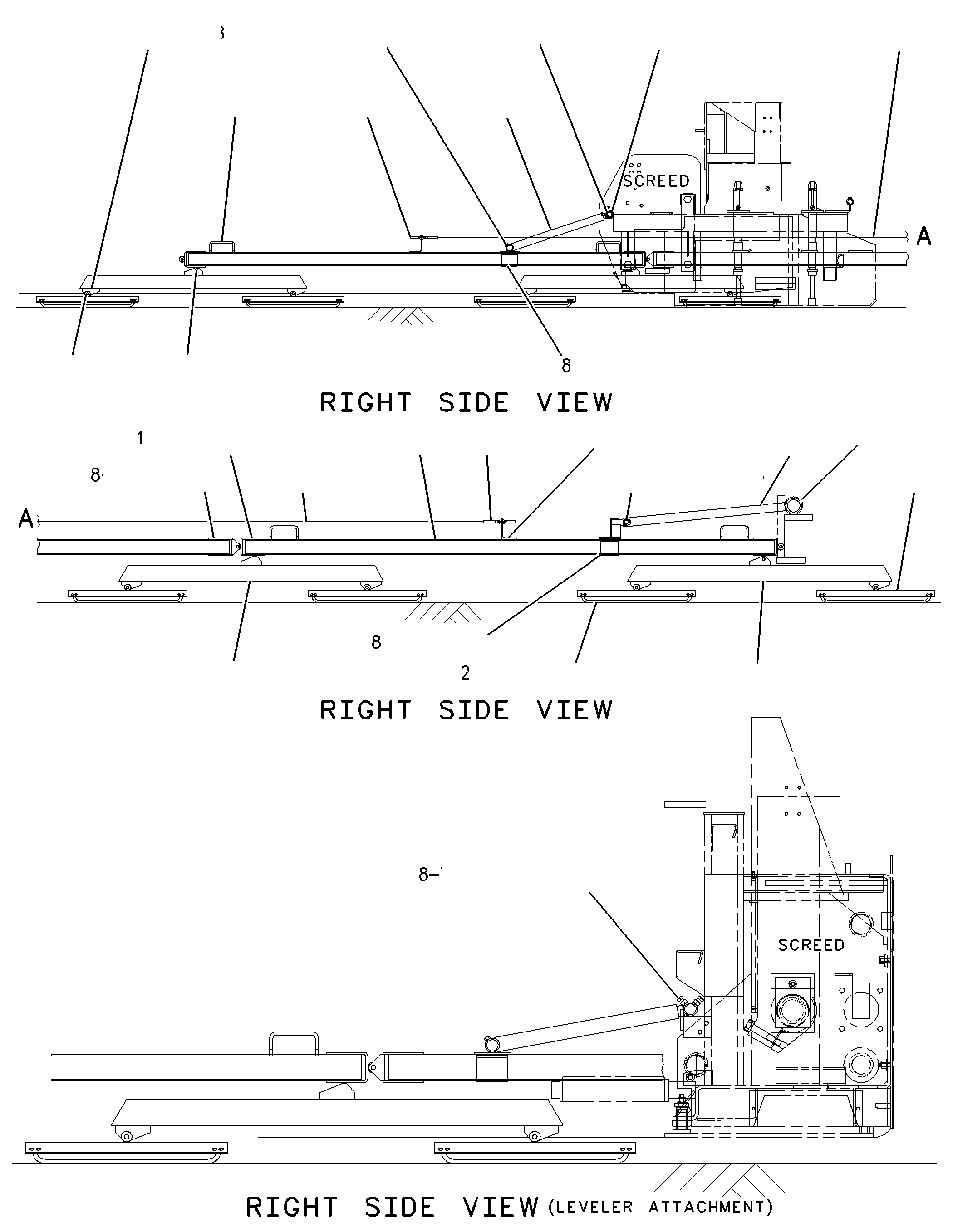

109-5623 LEVELER GP -30-FT GRADE REF, OUTBOARDS/N 1HD1-UP
Group No: 109-5623
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0817770 | 1 BEAM | 3 | |
| 0819638 | 2 CHANNEL | 4 | |
| 0817209 | 3 BRACKET | 12 | |
| 7X0334 | 4 BOLT (1/2-13X5-IN) | 8 | |
| 2H3788 | 5 LOCKNUT (1/2-13-THD) | 8 | |
| 9B7237 | 6 BOLT (3/8-16X1.25-IN) | 44 | |
| 6V8801 | 7 NUT (3/8-16-THD) | 91 | |
| 8T4896 | 8 WASHER-HARD (10.2X18.5X2.5-MM THK) | 64 | |
| 0817768 | 9 BEAM-END | 2 | |
| 0817769 | 10 BEAM-END | 4 | |
| 6S4975 | 11 ROD | 4 | |
| 1095639 | 12 ANGLE | 2 | |
| 1095641 | 13 EYEBOLT (3/8-16-THD) | 2 | |
| 1095642 | 14 BRACKET AS | 1 | |
| 1095648 | 15 PLATE | 2 | |
| 1095636 | 16 BRACKET AS-GUIDE | 1 | |
| 8T5912 | NUT-WELD (3/8-16-THD) | 1 | |
| 1097799 | 17 PIN AS | 1 | |
| 4B5277 | WASHER (0.938X2.25X0.156-IN THK) | 1 | |
| 0817524 | 18 PIN-HITCH | 6 | |
| 1095649 | 19 COLLAR | 2 | |
| 1408793 | 20 COLLAR | 2 | |
| 1095651 | 21 ARM AS | 1 | |
| 1097797 | 22 TUBE AS | 1 | |
| 1097798 | 23 ROD AS | 1 | |
| 1097807 | BAR | 1 | |
| 1097805 | 24 BAR | 1 | |
| 1095661 | 25 ROD END | 1 | |
| 1095629 | 26 SHOE AS | 8 | |
| 1095632 | 27 RUNNER | 16 | |
| 1195915 | 28 U-BOLT (1/4-20-THD) | 32 | |
| 6V8185 | 29 NUT (1/4-20-THD) | 64 | |
| 8T4205 | 30 WASHER-HARD (7.2X14.5X2-MM THK) | 64 | |
| 2H3725 | 31 BOLT (3/4-16X1.5-IN) | 1 | |
| 8T4994 | 32 WASHER-HARD (20X36.5X3.5-MM THK) | 1 | |
| 9N8909 | 33 STRINGLINE | 1 | |
| 1095658 | 34 SUPPORT AS-GUIDE | 2 | |
| 1F0748 | NUT-WELD (1/2-13-THD) | 2 | |
| 8T8917 | 35 BOLT (1/2-13X1.25-IN) | 4 | |
| 6V8188 | 36 NUT (1/2-13-THD) | 4 | |
| 4L9337 | 37 BOLT (3/8-16X1.5-IN) | 4 | |
| 8T9379 | 38 BOLT (3/8-16X4.25-IN) | 24 | |
| 9L9132 | 39 WASHER (10.2X25.5X2.5-MM THK) | 1 |
