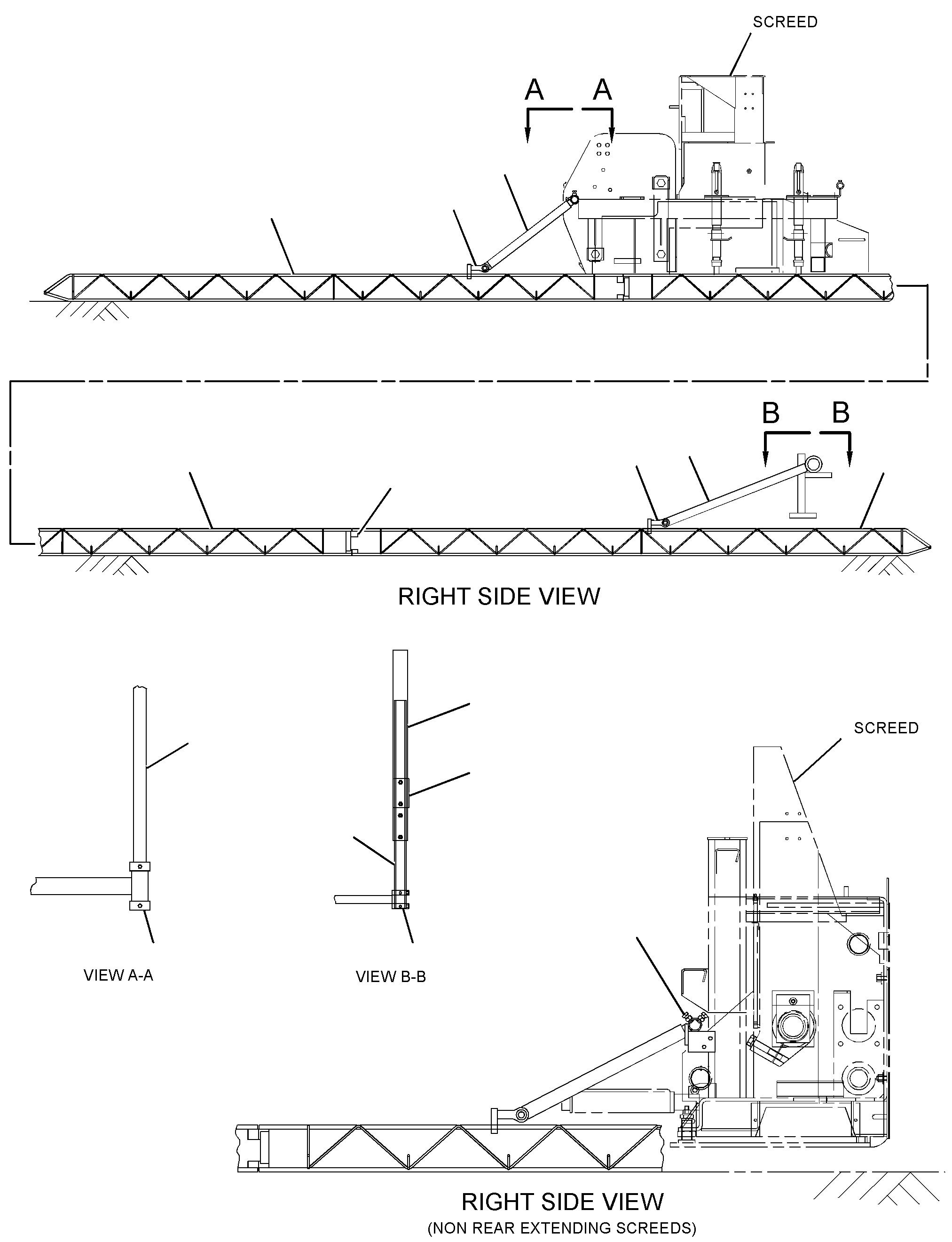

Assembly
100%

109-5628 LEVELER GP -30-FT GRADE REF, RIGID SKIS/N 1HD1-UP

Group No: 109-5628
Part NumberPart NameQty
11410721 FRAME AS (GRADE REFERENCE)2
11410732 FRAME AS (GRADE REFERENCE)1
7X03503 BOLT (5/8-11X3.5-IN)6
7X04484 NUT (5/8-11-THD)6
8T41225 WASHER-HARD (17X32X3.5-MM THK)10
11416376 WASHER (19X25.4X0.51-MM THK)8
10956517 ARM AS (TOWING)1
10956498 COLLAR2
9B72379 BOLT (3/8-16X1.25-IN)6
6V880110 NUT (3/8-16-THD)10
8T489611 WASHER-HARD (10.2X18.5X2.5-MM THK)4
109566112 ROD END2
2H372513 BOLT (3/4-16X1.5-IN)2
8T499414 WASHER-HARD (20X36.5X3.5-MM THK)2
114126315 COLLAR2
6V891816 BOLT (5/16-18X1.25-IN)4
8T422417 WASHER-HARD (8.8X16X2-MM THK)4
140879318 COLLAR2
109563419 TUBE AS1
109779820 ROD AS1
1097807BAR1
109780521 BAR1
109565822 SUPPORT AS-GUIDE2
1F0748NUT-WELD (1/2-13-THD)2
8T891723 BOLT (1/2-13X1.25-IN)4
6V818824 NUT (1/2-13-THD)4
4L933725 BOLT (3/8-16X1.5-IN)4
9L913226 WASHER (10.2X25.5X2.5-MM THK)2
4L645427 BOLT (3/8-16X1-IN)2
106460428 TUBE1
199419829 TUBE AS1
8T424430 NUT (M12X1.75-THD)6
8T413931 BOLT (M12X1.75X30-MM)4
8T418332 BOLT (M12X1.75X40-MM)6
293102233 MOUNT AS2
8T413234 NUT (M16X2-THD)4
8T419335 BOLT (M16X2X50-MM)4
7X255436 BOLT (M16X2X70-MM)4
432243538 MOUNT AS2
450568539 SUPPORT AS2
8T500540 BOLT (M10X1.5X70-MM)4
329335641 NUT (M12X1.75-THD)4
8T412142 WASHER-HARD (11X21X2.5-MM THK)4
