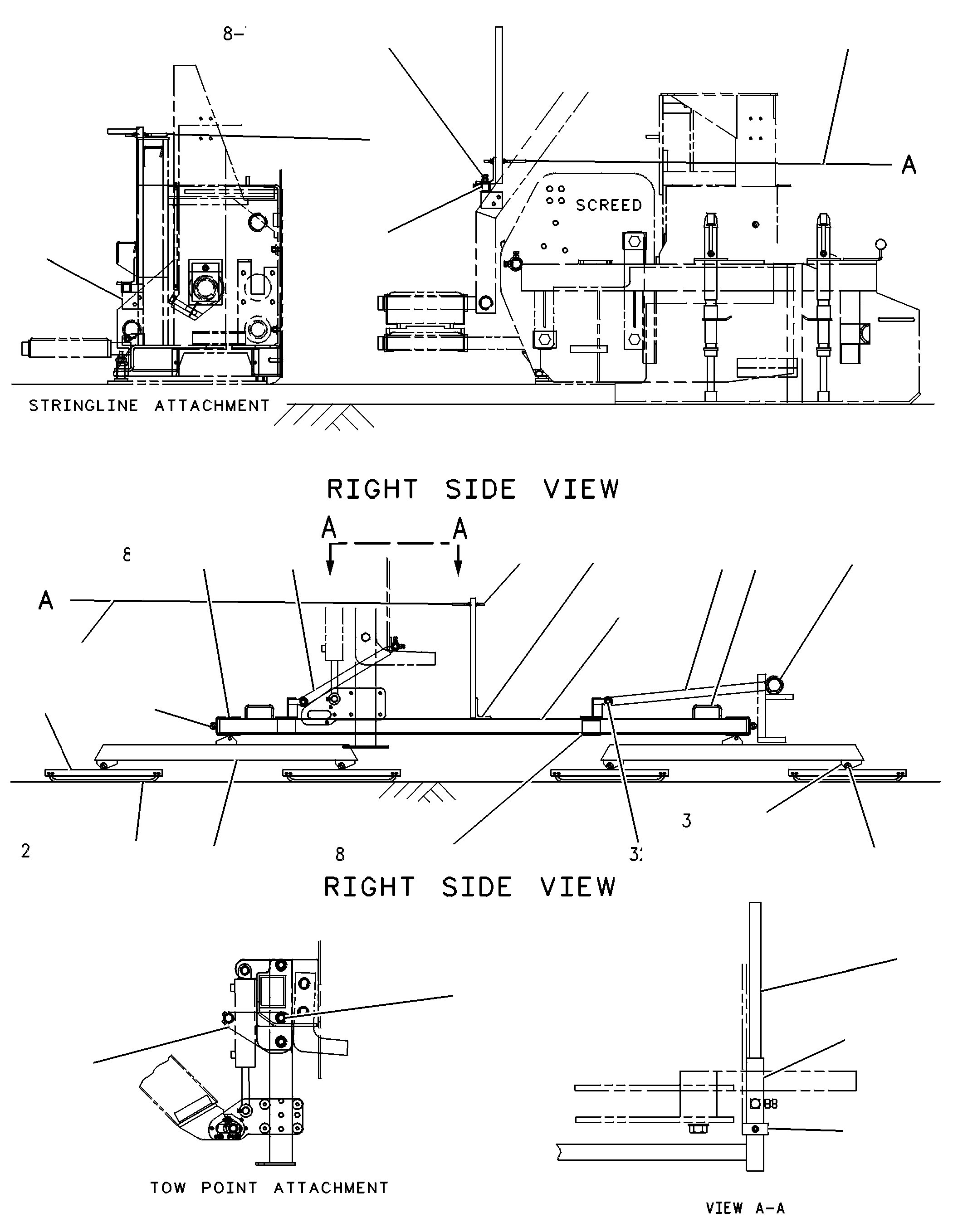

109-5624 LEVELER GP -12-FT GRADE REF, INBOARDS/N 9AL1-UP

Group No: 109-5624
Part NumberPart NameQty
08177701 BEAM1
08196382 CHANNEL2
08172093 BRACKET6
7X03344 BOLT (1/2-13X5-IN)4
2H37885 LOCKNUT (1/2-13-THD)4
9B72376 BOLT (3/8-16X1.25-IN)48
6V88017 NUT (3/8-16-THD)56
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)44
10956599 SHAFT1
081776910 BEAM-END2
6S497511 ROD2
109563512 TUBE AS2
109564113 EYEBOLT (3/8-16-THD)2
109564214 BRACKET AS2
109564815 PLATE2
9N890916 STRINGLINE1
109565817 SUPPORT AS-GUIDE1
1F0748NUT-WELD (1/2-13-THD)2
081752418 PIN-HITCH2
109564919 COLLAR2
8B038520 COLLAR2
109565121 ARM AS1
109563422 TUBE AS1
109779823 ROD AS1
113912524 BAR1
109566125 ROD END2
109562926 SHOE AS4
109563227 RUNNER8
5K898428 U-BOLT16
6V818529 NUT (1/4-20-THD)32
8T420530 WASHER-HARD (7.2X14.5X2-MM THK)32
2H372531 BOLT (3/4-16X1.5-IN)2
8T499432 WASHER-HARD (20X36.5X3.5-MM THK)2
8T891733 BOLT (1/2-13X1.25-IN)4
6V818834 NUT (1/2-13-THD)4
109566035 SUPPORT AS1
1F0748NUT-WELD (1/2-13-THD)2
8T891536 BOLT (3/8-16X3.25-IN)2
4L933737 BOLT (3/8-16X1.5-IN)2
106968238 SUPPORT AS-GUIDE (RH)1
1F0748NUT-WELD (1/2-13-THD)2
8T892739 BOLT (1-8X3.75-IN)1
114183840 SUPPORT AS-GUIDE (LH)1
1F0748NUT-WELD (1/2-13-THD)2
