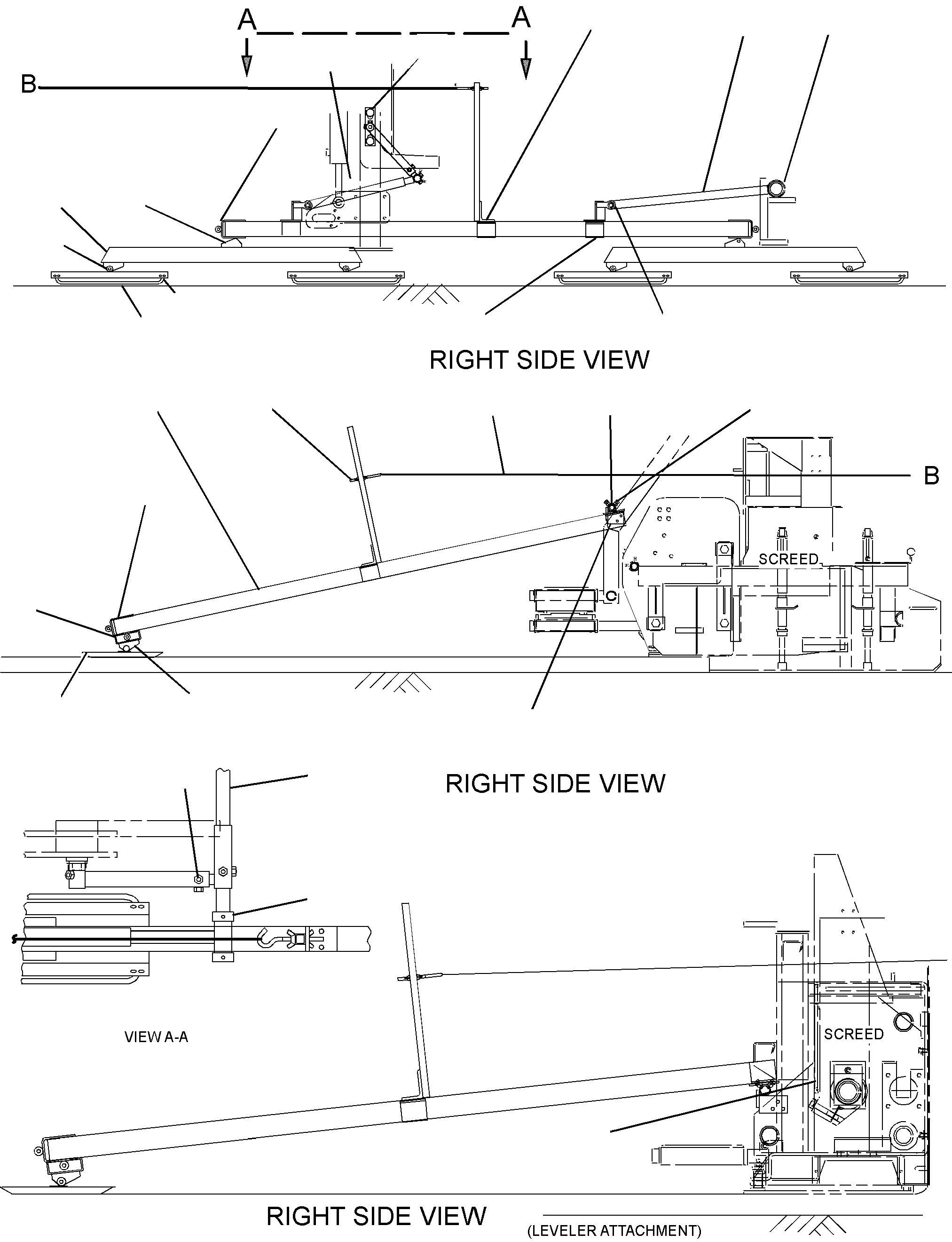

109-5625 LEVELER GP -FORE, AFT, INBOARDS/N 9XJ265-UP; 9AL277-UP

Group No: 109-5625
Part NumberPart NameQty
16796321 BEAM2
08196382 CHANNEL2
08172093 BRACKET7
7X03344 BOLT (1/2-13X5-IN)7
2H37885 LOCKNUT (1/2-13-THD)7
9B72376 BOLT (3/8-16X1.25-IN)42
6V88017 NUT (3/8-16-THD)62
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)62
10956599 SHAFT1
167131410 PLATE AS3
4L645411 BOLT (3/8-16X1-IN)2
172562812 TUBE AS2
109564113 EYEBOLT (3/8-16-THD)2
169017314 PLATE AS2
169017115 PLATE5
169017416 PLATE AS1
8T5912NUT-WELD (3/8-16-THD)1
122115317 SUPPORT AS-GUIDE2
7X0443BOLT (1-8X5.5-IN)4
1221155SUPPORT AS-GUIDE2
8T2502BOLT (3/8-16X1.125-IN)4
1221157SUPPORT AS-GUIDE2
7X0387BOLT (7/8-9X4-IN)4
2311393PLATE AS1
8T4121WASHER-HARD (11X21X2.5-MM THK)4
8T4195BOLT (M10X1.5X30-MM)4
7X029318 BOLT (3/8-16X4.75-IN)4
109564919 COLLAR2
140879320 COLLAR4
109565121 ARM AS1
109563422 TUBE AS1
109779823 ROD AS1
1097807BAR1
109780524 BAR1
167429025 EYEBOLT (3/4-10-THD)2
109562926 SHOE AS4
109563227 RUNNER8
119591528 U-BOLT (1/4-20-THD)16
6V818529 NUT (1/4-20-THD)32
8T420530 WASHER-HARD (7.2X14.5X2-MM THK)32
6V818231 NUT (3/4-10-THD)4
8T499432 WASHER-HARD (20X36.5X3.5-MM THK)3
9N890933 STRINGLINE1
8T891734 BOLT (1/2-13X1.25-IN)10
6V818835 NUT (1/2-13-THD)10
172707736 TUBE1
109565837 SUPPORT AS-GUIDE2
1F0748NUT-WELD (1/2-13-THD)2
8T891538 BOLT (3/8-16X3.25-IN)4
4L933739 BOLT (3/8-16X1.5-IN)4
122110440 ROD AS1
122115041 TUBE AS1
8T939742 BOLT (3/4-10X1.25-IN)1
9L913243 WASHER-HARD (10.2X25.5X2.5-MM THK)2
081721144 SHOE-PAN1
7X029245 BOLT (3/8-16X4.5-IN)8
